Product Introduction
To be honest, the Yokogawa ANB10D-425/CU2N is a cornerstone chassis in large-scale CENTUM VP distributed control architectures. This dual-redundant ESB bus node unit houses power supply modules, communication interface cards, and up to eight field I/O modules, providing a stable, noise-resistant mounting base that communicates directly with Yokogawa Field Control Units (FCUs).
Engineered with dual-redundant power and bus configuration options, it eliminates single points of failure in continuous process manufacturing environments. In our field experience, replacing a backplane or node unit chassis due to mechanical damage or bus transceiver failure requires strict attention to module slot addressing and connector alignment to prevent communication fault trips across the entire node rack.
Key Technical Specifications
| Parameter | Value |
| Node Unit Type | Dual-Redundant ESB Bus Node Unit (ANB10D) |
| System Compatibility | Yokogawa CENTUM VP / ProSafe-RS FIO Architecture |
| Power Supply Configuration | Dual Redundant Power Supply (-4 option) |
| Input Voltage Rating | 220–240V AC nominal (-2 suffix variant) |
| I/O Module Capacity | Up to 8 Slot Positions for FIO Cards |
| Communication Bus | Dual-Redundant Enhanced ESB Bus (/CU2N connector unit included) |
| Explosion Protection | Basic Type / Non-Ex (-5 suffix) |
| Mounting Type | 19-inch Rack / Panel Mount Enclosure |
| Operating Temperature | -10°C to +55°C |
| Weight | Approx. 10 kg |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:00 AM at a massive crude distillation unit. A severe power transient blows the dual power supply inputs and backplane interface on a primary node chassis, dropping 64 critical analog and digital I/O points offline simultaneously. The control room screams with alarms as operator displays grey out for an entire distillation column. Swapping in a verified, direct-replacement ANB10D node chassis restores redundant bus communication and brings the unit back safely before emergency shutdown procedures trigger.
- Oil & Gas – Central Processing Facilities: Aggregating hundreds of marshalled I/O signals across redundant node racks connected to main controllers.
- Chemical Processing – Reaction Unit Control: Housing redundant I/O cards for rapid-response safety interlocks and analog control loops.
- Power Generation – Boiler Management Systems: Distributing reliable control node hardware across remote electrical equipment rooms.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Yokogawa node racks. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for structural chassis rigidity, backplane pin integrity, and anti-counterfeit OEM label verification.
- Live Rig Testing: Powering the chassis with dual AC supplies to verify redundant power supply (PW481) handoffs and voltage regulation rails.
- ESB Bus Communication Loop: Testing the redundant SB401 interface cards and /CU2N connector blocks using active diagnostic node polling to ensure zero packet loss.
- Thermal Stability Check: Operating the backplane under simulated full-rack thermal loads to confirm ambient dissipation parameters.
- Final QC & Anti-static Packaging: Securing all internal connectors, wrapping the chassis in heavy-duty ESD protection, and crating in high-density foam packaging.

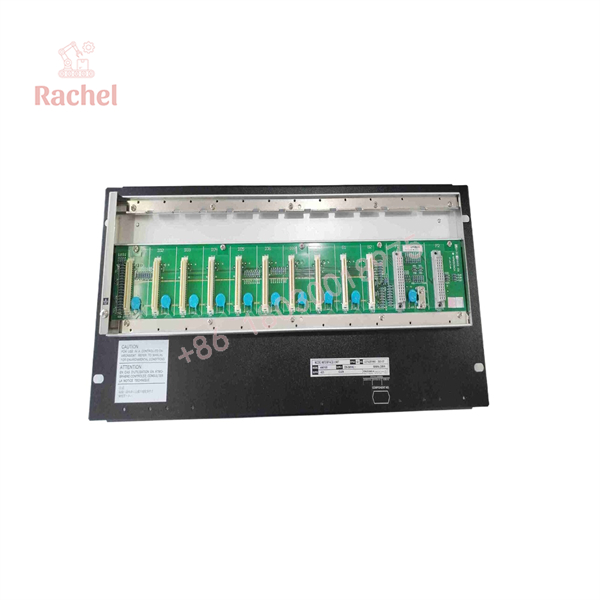

ANB10D-425/CU2N
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ AC Supply Voltage Mismatch: Verify your incoming supply voltage before landing power lines. The -2 suffix denotes a 220–240V AC power module configuration; wiring this directly into a 110V AC or 24V DC panel drop will cause immediate power supply failure or prevent proper arc-suppression.
❗ ESB Bus Terminator Plugs: Never power up a redundant ESB bus chain without verifying that proper bus terminators are installed on the final node. Missing or loose terminators will introduce reflection noise, causing intermittent node drops across the entire control network.
⚠️ Backplane Pin Alignment During Module Insertion: When populating the 8 I/O slots, ensure modules slide cleanly along the chassis guides. Forced insertion at an angle will bend fragile backplane bus pins, leading to persistent module communication faults that are agonizing to troubleshoot.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the ANB10D-425/CU2N include the power and bus interface modules?
A: Yes. Complete node unit assemblies typically include the base chassis, dual power supply modules, and the ESB bus connector units (/CU2N), ready for your specific I/O card population.
Q: Is this node unit hot-swappable?
A: Yes. The dual-redundant power supplies and individual FIO I/O cards supported within the chassis are designed for online replacement under power, provided plant safety procedures and system software permits.
Q: Does this unit come with a warranty?
A: Yes. All surplus and fully tested units include a comprehensive 12-month replacement warranty.
Q: Why purchase surplus instead of waiting for factory backorders?
A: Major DCS infrastructure chassis frequently carry extended factory lead times. We source verified surplus and overstock inventory so you can secure an immediate, exact-match replacement to keep your facility operational.
