Yokogawa CP451-50 CPU Module | CENTUM VP DCS Processor

Description

Product Introduction & Engineering Value

Few failure modes create more tension on a refinery floor than a watchdog alarm lit up on an active DCS rack. The Yokogawa CP451-50 processor module delivers the deterministic processing core needed to maintain uninterrupted closed-loop regulation across complex process units.

Engineering teams trust the CP451-50 for high-density environments where dropped packets or delayed scanning cycles mean costly process upsets. Designed for direct insertion into standard CENTUM node files, it offers effortless integration alongside existing I/O architectures, providing reliable service whether deployed as a single controller or in a hot-standby pair.

Technical Specifications

Field Application & The “Trench” Experience

A polymer processing plant in Texas faced a critical controller fault on an aging extruder line when a line transient degraded the primary processor card. With raw resin curing in the feed lines, delaying repairs for a full platform upgrade was out of the question. The shift lead retrieved a fully bench-tested CP451-50 module from warehouse surplus, checked the hardware address selector, and inserted the board into the active slot. Within moments of applying system power, the unit synchronized its local registers with the engineering workstation, restored communication to the local I/O nodes, and cleared the system alarm list before thermal thresholds were breached.

Niche Application Scenarios:

• Continuous Reforming Unit (CRU) Pressure Loops: Maintaining fast deterministic scan rates for critical pressure control valves.
• Offshore Platform Separation Gas Train: Running high-reliability interlock sequences over redundant Vnet/IP node links.

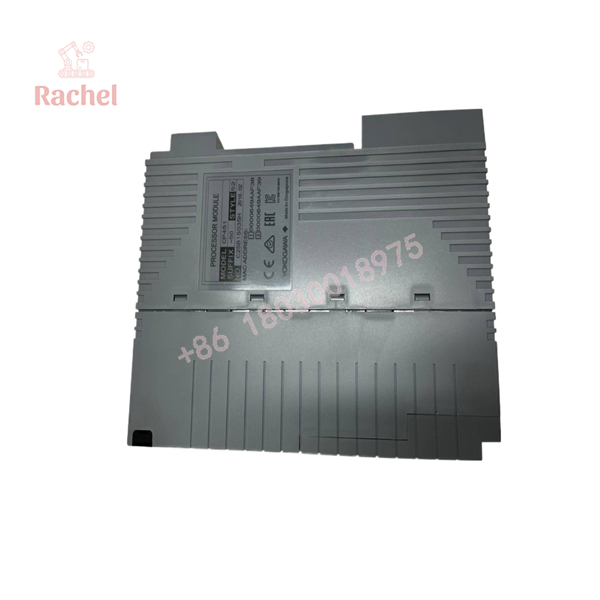

CP451-50

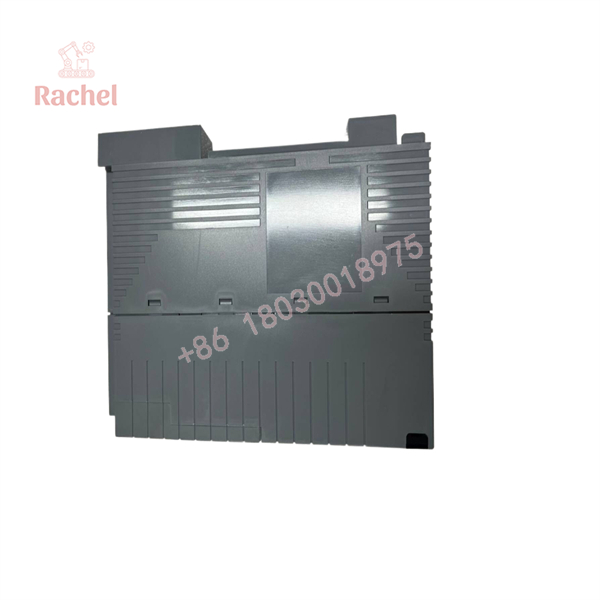

CP451-50

Transparency SOP: QA & Testing

1.Physical Bench Audit:5 min.

Perform a complete optical check under magnification for trace corrosion, swollen capacitors, or compromised contact pins on the backplane connector.

2.Power Rail Burn-In:24 hrs.

Slot the CP451-50 into an energized test rack fixture to monitor internal bus voltage regulation and monitor thermal stability under continuous idle power.

3.Vnet/IP Loopback Verification:30 min.

Connect the card to a closed engineering test network running CENTUM VP software to test packet delivery, redundant network failover, and memory integrity.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ BACKPLANE PIN DAMAGE HAZARD: The high-density card edge pins on the CP451-50 are susceptible to bending if inserted into the rack at a slight angle. Always align the card guides precisely and seat the board using moderate, even pressure on the card ejectors—never force a stubborn module.

PRO TIP: When installing a CP451-50 into an existing dual-redundant pair, check the system software build revision on the workstation first. If the passive card’s stored microcode differs from the active partner, the redundant handoff will fail to initialize.

Dynamic FAQ

• Q: How does the CP451-50 differ from the older CP451-10 module?
  • A: The CP451-50 represents a higher-performance hardware revision featuring improved internal memory management and optimized communication processing speed, designed to better support modern CENTUM VP system revisions.
• Q: Do I need to re-license the node software when replacing a failed CP451-50 card?
  • A: No. System licensing resides within the system project software and hardware security keys on the engineering station, not on the individual processor card itself.
• Q: Are these CP451-50 units original Yokogawa manufactured hardware?
  • A: Yes, all inventory consists of genuine Yokogawa OEM components sourced from plant liquidations, system upgrades, or verified original surplus.
• Q: What warranty coverage applies to this module?
  • A: Every unit is backed by our standard 12-month full replacement warranty covering functional performance and hardware integrity.
