Core Product Summary
The Yokogawa F3PU10-0N is a standard AC power supply module designed for the FA-M3 Range-Free Multi-Controller system. Engineered to mount directly into dedicated power slots on FA-M3 base modules, this unit converts universal single-phase AC input into a regulated 5 V DC system voltage to power backplane communications, CPU modules, and system I/O cards.
Operating across a broad 100 to 240 V AC nominal supply voltage range (with a total permissible range of 85 to 264 V AC at 50/60 Hz), the module delivers a rated 5 V DC output at up to 2.0 A. Housed in a compact form factor, it provides stable internal logic power while maintaining isolation standards between external utility lines and internal backplane circuitry.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | AC Power Supply Module |
| System Series | FA-M3 Range-Free Multi-Controller |
| Input Voltage Range | 100 to 240 V AC single-phase nominal (85 to 264 V AC allowable) |
| Input Frequency | 50 / 60 Hz (±3 Hz fluctuation range) |
| Maximum Power Consumption | 35 VA |
| Inrush Current | 20 A max. at 120 V AC; 45 A max. at 240 V AC (Ta = 25 °C) |
| Output Voltage | 5 V DC (regulated internal logic bus) |
| Rated Output Current | 2.0 A |
| Allowable Momentary Power Failure Time | 20 ms (Standard Mode) / 10 ms (Immediate Detection Mode) |
| Insulation Resistance | 5 MΩ or more at 500 V DC between AC terminals and FG |
| Dielectric Strength | 1500 V AC for 1 minute between AC terminals and FG |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Dimensions (W x H x D) | 28.9 x 100 x 83.2 mm |
| Unit Weight | Approx. 190 g |
Detailed Product Overview
The Yokogawa F3PU10-0N supplies regulated DC system power required by FA-M3 programmable controllers. It installs into the leftmost dedicated slot of compatible FA-M3 base units, converting incoming AC line voltage down to the 5 V DC level needed by the main backplane. Its 2.0 A current rating is tailored for smaller logic racks containing a main CPU module alongside a selection of digital and analog I/O cards.
Integration into control cabinets is simplified by its compact width of 28.9 mm, preserving DIN-rail or panel space. The module handles power line fluctuations with a wide input tolerance and includes ride-through capability during brief utility voltage drops (up to 20 ms in standard mode). Built-in noise filter circuitry protects sensitive backplane processor buses from high-frequency electromagnetic interference common in industrial environments.

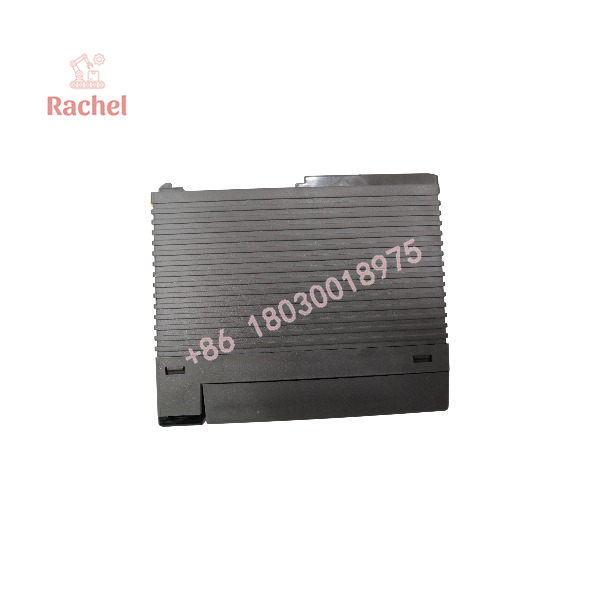

F3PU10-0N
F3PU10-0N
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Compatible Base Modules | Yokogawa F3BU04-0N (4-slot) and F3BU06-0N (6-slot) base units | Sized specifically for 4-slot and 6-slot base configurations. Larger racks require higher-capacity power supply units. |
| Output Current Capacity | 2.0 A total at 5 V DC | Total 5 V DC backplane current consumption of all installed CPU and I/O modules must not exceed 2.0 A. |
| Terminal Wiring | Screw terminal block for AC power connection | Accepts single-phase AC input lines (L, N) along with a direct connection to Frame Ground (FG). |
| Grounding Requirement | Frame Ground (FG) terminal | FG must be connected to a low-impedance protective earth ground for safe operation and noise rejection. |
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Measures 28.9 mm Wide x 100 mm High x 83.2 mm Deep.
- Weight: Approximately 190 g.
- Mounting Method: Directly plugs into the dedicated power supply slot on a compatible FA-M3 base unit.
- Terminal Block Connections: AC input power (100–240 V AC) and Frame Ground (FG) land on front-accessible terminal connections.
- Environmental Limits: Operating surrounding air temperature must remain within 0 to 55 °C (32 to 131 °F) with relative humidity between 10% and 90% RH (non-condensing).
FAQ
What is the Yokogawa F3PU10-0N?
The F3PU10-0N is an AC input power supply module belonging to Yokogawa’s FA-M3 PLC series.
What is the input voltage range for this power supply module?
It accepts a nominal input of 100 to 240 V AC single-phase, with an allowable operating range of 85 to 264 V AC at 50/60 Hz.
What output voltage and current does the F3PU10-0N supply?
It provides a regulated output of 5 V DC at up to 2.0 A to power backplane logic and modules.
Which FA-M3 base modules are compatible with the F3PU10-0N?
It is designed for use with the F3BU04-0N (4-slot) and F3BU06-0N (6-slot) FA-M3 base modules.
What happens if system power consumption exceeds 2.0 A?
If the combined 5 V DC current draw of the CPU and I/O modules on the rack exceeds 2.0 A, a higher-capacity power supply module (such as the F3PU20 series) and a compatible base module must be selected.
