Core Product Summary (Brand / Model / Key Attributes)
The AAEON GENE-9455 is a 3.5” SubCompact Board featuring an onboard Intel® Atom™ N270 processor running at 1.6 GHz with a 533 MHz front-side bus. It is built around the Intel® 945GSE + ICH7M chipset and supports a single 200-pin DDR2 400/533 MHz SODIMM module up to 2 GB.
The board provides dual Intel® 82574L Gigabit Ethernet ports, CRT and dual-channel LVDS display outputs for simultaneous or dual-view operation, AC97 2.3 audio, multiple USB 2.0 ports, four serial ports, parallel port, 8-bit digital I/O, CompactFlash, and SATA storage interfaces. Expansion is available via Mini PCI and Mini Card (or ECX proprietary) slots. Power input is typically +12 V (AT/ATX) with board dimensions of 146 mm × 101.6 mm and an operating temperature range of 0 °C to 60 °C.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | 3.5” SubCompact Board |
| Processor | Onboard Intel® Atom™ N270, 1.6 GHz, FSB 533 MHz |
| Chipset | Intel® 945GSE + ICH7M |
| System Memory | 200-pin DDR2 400/533 MHz SODIMM × 1, up to 2 GB |
| Ethernet | Intel® 82574L, 10/100/1000Base-TX, RJ-45 × 2 |
| Display | CRT + Dual LVDS (18-bit / 24-bit dual-channel), simultaneous / dual view |
| Graphics Memory | Shared system memory up to 224 MB (DVMT 3.0) |
| Audio | AC97 2.3 Codec, 2-channel (Line-in, Line-out, Mic-in) |
| Storage | SATA 1.5 Gb/s × 1 (or × 2 depending on revision), CompactFlash Type II × 1, EIDE × 1 |
| USB | USB 2.0 × 4 or × 6 (revision-dependent) |
| Serial Ports | COM × 4 (RS-232 / RS-232/422/485 options) |
| Parallel Port | × 1 |
| Digital I/O | 8-bit programmable |
| Expansion | Mini PCI × 1, Mini Card × 1 (or ECX proprietary) |
| BIOS | Award Plug & Play SPI BIOS, 2 MB Flash |
| Watchdog Timer | System reset on timeout |
| Power Requirement | +12 V (AT/ATX) or wide-range options |
| Typical Power Consumption | ≈ 1.55 A @ +12 V (N270 + 2 GB DDR2) |
| Board Size | 146 mm × 101.6 mm (5.75” × 4”) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 80 °C |
| Operating Humidity | 0 % to 90 % non-condensing |
| MTBF | 70,000 hours |
Detailed Product Overview
The AAEON GENE-9455 is a compact 3.5-inch single-board computer designed for embedded industrial applications that require low power consumption, dual network connectivity, and flexible display support. The onboard Intel Atom N270 processor combined with the 945GSE graphics and memory controller hub delivers a balance of performance and thermal efficiency suitable for fanless or lightly cooled enclosures.
Dual independent Gigabit Ethernet controllers enable simultaneous connection to separate networks, a useful feature for gateway, digital-signage, or multi-segment industrial control systems. Display flexibility includes analog CRT and dual-channel LVDS outputs that can operate in simultaneous or dual independent modes, supporting resolutions up to 2048 × 1536 on CRT and 1600 × 1200 on LCD panels.
Storage options cover both legacy (EIDE, CompactFlash) and contemporary (SATA) media, while the I/O complement of USB 2.0 ports, multiple COM ports, parallel interface, and programmable digital I/O covers typical peripheral and control requirements. Expansion slots allow addition of wireless modules, additional I/O cards, or custom peripherals via Mini PCI or Mini Card.
The board operates from a single +12 V supply in many configurations and includes hardware monitoring for voltages and temperature, a watchdog timer, and optional Trusted Platform Module support. Typical target environments include digital signage, panel PCs, kiosks, factory automation HMIs, and portable or space-constrained industrial equipment.

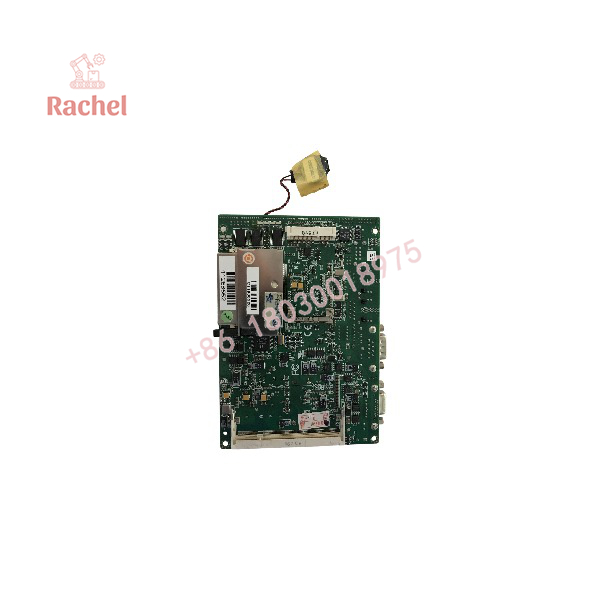

GENE-9455

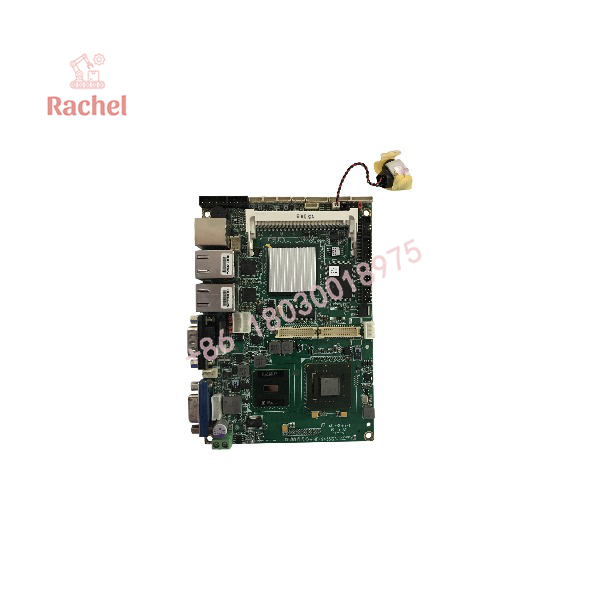

GENE-9455
Engineering Selection Highlights
- Onboard Atom N270 at 1.6 GHz with 945GSE chipset provides a mature, low-power platform for legacy-compatible embedded systems.
- Dual Gigabit Ethernet ports support dual-network or redundant-network architectures without additional hardware.
- Dual LVDS + CRT outputs enable simultaneous or independent display configurations for operator panels and signage.
- 3.5” form factor (146 × 101.6 mm) fits standard industrial enclosures and panel-PC chassis.
- Multiple storage interfaces (SATA, CompactFlash, EIDE) accommodate both modern and legacy media.
- Mini PCI / Mini Card expansion allows addition of wireless, fieldbus, or custom I/O modules.
- Hardware monitoring, watchdog, and optional TPM support industrial reliability and security requirements.
Dimensions, Mounting & Connection Notes
Board dimensions are 146 mm (L) × 101.6 mm (W). Mounting holes follow the standard 3.5” SubCompact pattern. Power is supplied via a standard AT/ATX-style connector (typically +12 V). Display, Ethernet, USB, COM, and audio connectors are edge-mounted or header-based depending on revision. A lithium battery supports CMOS retention. Heatsink is normally included in the packing list for the processor.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Memory | 200-pin DDR2 SODIMM, 400/533 MHz, max 2 GB | Single-channel only |
| Display panels | Dual-channel LVDS (18/24-bit) + CRT | Verify LVDS pinout and backlight power |
| Network | Dual RJ-45 Gigabit (Intel 82574L) | Independent MAC/PHY pairs |
| Expansion modules | Mini PCI or Mini Card / ECX | Check height clearance in chassis |
| Power supply | +12 V (typical) or manufacturer-specified wide range | Confirm AT vs ATX mode |
| Storage media | SATA, CompactFlash Type II, EIDE | CF is Type II form factor |
| Operating system | Compatible with Windows and Linux distributions of the Atom N270 era | Driver support via AAEON product CD |
FAQ
What is the AAEON GENE-9455?
It is a 3.5” SubCompact Board with an onboard Intel Atom N270 1.6 GHz processor and Intel 945GSE + ICH7M chipset.
How much memory does it support?
One 200-pin DDR2 SODIMM module at 400 or 533 MHz, maximum 2 GB.
Does it have dual Ethernet?
Yes, two independent Intel 82574L Gigabit Ethernet ports with RJ-45 connectors.
What display interfaces are available?
CRT and dual-channel LVDS, supporting simultaneous or dual independent displays.
What is the board size?
146 mm × 101.6 mm (5.75” × 4”).
What is the operating temperature range?
0 °C to 60 °C.
What expansion options exist?
Mini PCI and Mini Card (or ECX proprietary expansion) slots.
What power input is required?
Typically +12 V (AT/ATX); some revisions support wider DC ranges.
