Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3BHB005243R0105 |
| Product Name | KUC755AE105 / Gate Unit Power Supply |
| Brand | ABB |
| Product Type | IGCT Gate Unit Power Supply |
| Compatible Series | ABB ACS6000 medium voltage drives |
| Input Voltage | 24 V DC (typical) |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Power Output | 120 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Weight | 3.65 kg (approx.) |
| Origin | Switzerland / Sweden |
Product Introduction & Supply Chain Strategy
The ABB 3BHB005243R0105, also known as the KUC755AE105, is a dedicated gate unit power supply module for the ABB ACS6000 series medium voltage drives . This module provides the isolated power required to fire the Integrated Gate-Commutated Thyristors (IGCTs) in the drive’s power section. Without this supply, the IGCTs cannot switch, and the drive cannot generate the AC voltage needed to rotate the motor. This module is a critical component in the drive’s firing path — it is not a general-purpose power supply.
Procuring this unit as New Surplus is a strategic TCO decision for any facility operating ABB ACS6000 drives. The module sits inside the high-voltage cabinet. A failure here takes the entire drive offline. Refurbished or used gate power supplies carry significant risk: internal isolation transformers degrade, capacitor aging causes voltage ripple outside IGCT gate specifications, and prior overvoltage events leave latent damage. The cost of an unplanned motor shutdown on a critical pump, conveyor, or compressor far exceeds the price difference between a verified new surplus unit and a questionable used one.

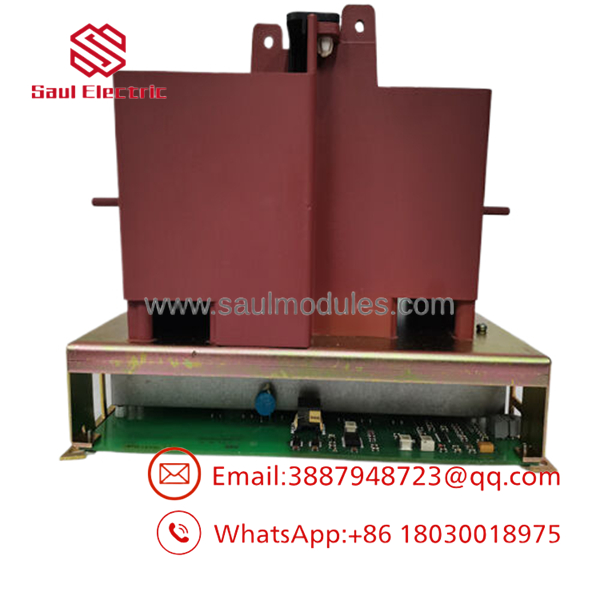

- 3BHB005243R0105

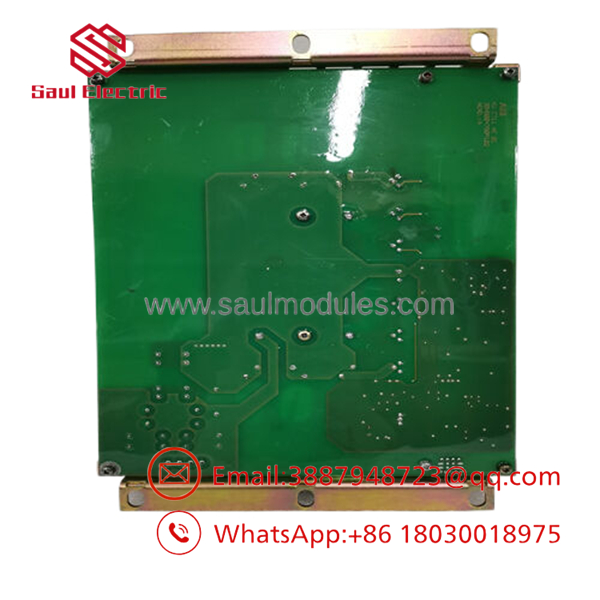

- 3BHB005243R0105
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the drive. Disconnect medium voltage input. Verify DC bus capacitors are fully discharged per ABB safety procedure. Wear appropriate PPE.
- Gather ESD wrist strap, documentation for fiber optic cable routing, and a camera.
Stage 2: Removal
- Label and carefully disconnect the fiber optic cables from the gate unit.
- Remove the module mounting screws and slide the power supply out of the drive chassis.
Stage 3: Installation
- Slide the new module into position and secure with mounting screws.
- Reconnect fiber optic cables to the same ports.
- Critical: Verify all gate drive connections are reseated correctly.
Stage 4: Power-On & Testing
- Re-energize auxiliary control power (24 V DC).
- Observe the gate unit LED status indicators. Verify all IGCT gate units report ready.
- Perform drive pre-charge and commissioning per ABB ACS6000 start-up procedure.
Firmware/Software Versions & Upgrade Notes
The GUSP is a hardware power module with no user-accessible firmware.
Version compatibility note: The 3BHB005243R0105 is the specific spare part number for the gate unit power supply within the ACS6000 platform. No hardware revision substitutions are permitted. Always match the part number exactly to maintain system safety certification and proper gate drive timing.
Critical warning: Only qualified ABB drive service personnel should access the medium voltage cabinet. The gate power supply is in the high-voltage section of the drive and presents lethal voltages even when disconnected from mains due to stored DC bus energy.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid OEM full retail margin and the hidden failure risk of refurbished stock — degraded isolation transformers and aged capacitors that cause intermittent gate drive faults, leading to drive trips.
Q: Is this module still active or is it EOL?
A: The 3BHB005243R0105 remains in active support for the ACS6000 installed base . However, ABB’s focus has shifted to newer drive platforms. For plants with drives, securing a new surplus spare now prevents a future scramble when lead times stretch.
Q: What happens if the gate power supply fails?
A: The drive’s IGCTs cannot fire. The drive faults and stops the motor. This is a critical failure that requires replacement to restore operation.
Q: Does replacement require reloading drive parameters?
A: No. The parameters are stored in the drive’s main control board. The gate power supply has no user-configurable parameters.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects . Coverage applies to the module hardware — not field wiring, installation damage, or external surges. All units are QC-tested before shipment to verify correct output voltage and isolation.
