ABB 3BHE006373R0101 XVC769AE101 OEI-Board Control Module

Description

3. Key Technical Specifications

• Model Number: 3BHE006373R0101 (XVC769AE101)
• Type: OEI-Board / PC Board Controller
• Function: Current detection and control for inverters
• Power Supply: 24 VDC typical
• Operating Temperature: Industrial range
• Mounting: Plug-in board
• Features: Real-time monitoring, waveform analysis
• Applications: ABB drive and automation systems
• Dimensions: Compact (approx. 23 cm x 11 cm x 3.4 cm)
• Weight: Approx. 0.35 kg

4. Product Introduction

The ABB 3BHE006373R0101 XVC769AE101 is an OEI-Board controller module designed for ABB inverter and drive systems. It provides current detection, monitoring, and control functions essential for stable power conversion.

This board enables real-time analysis of current signals and supports reliable operation in demanding industrial applications.

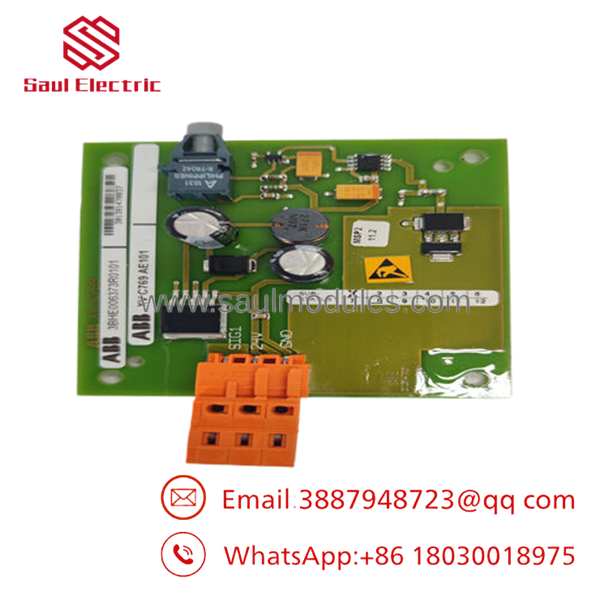

3BHE006373R0101 XVC769AE101

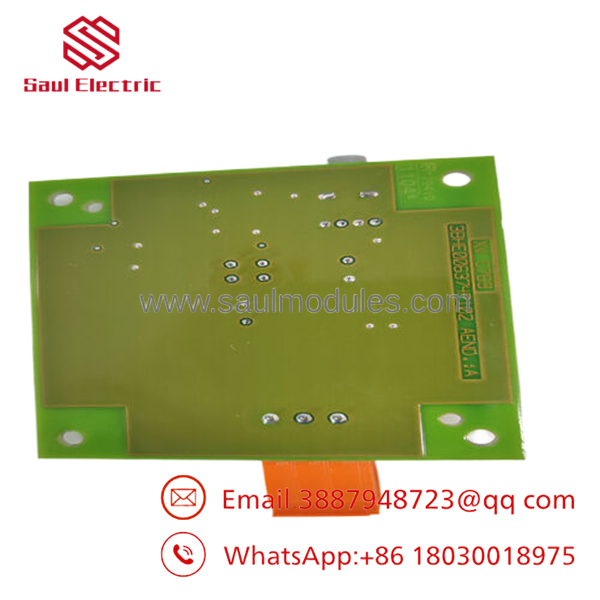

3BHE006373R0101 XVC769AE101

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10–15 minutes) ⚠️ Safety First: Lock out/tag out drive power, discharge capacitors. Tools Required: ESD strap, screwdriver. Data Backup: Photograph board position and connections.

Stage 2: Removing the Old Module (5–10 minutes)

1. Disconnect cables.
2. Release and remove board.
3. Inspect slot. ⚠️ Note: Retain old board.

Stage 3: Installing the New Module (10 minutes)

1. ESD safe. Align and insert.
2. Secure in place.
3. Reconnect cables. Self-Checklist: [ ] Proper seating, [ ] Connections secure.

Stage 4: Power-On & Testing (15–25 minutes) Pre-Power Check: Verify voltages. Power-On Steps:

1. Apply control power.
2. Monitor status.
3. Test current monitoring.
4. Run drive diagnostics.

⚠️ Troubleshooting Note: Faults often link to cabling or configuration. Use ABB tools for errors.

6. Frequently Asked Questions (FAQ)

Can this board be hot-swapped? No. Power down fully first.

Is this model obsolete? Supported spare for ABB drives. New stock available.

What is the direct replacement? Confirm with ABB for compatibility.

Will parameters transfer? Reload drive configuration as needed.

Why lower price? Tested surplus with QC. Genuine ABB part.
