Description
Product Introduction & Engineering Value
When an inrush event or gate board failure causes an IGCT phase leg trip in a multi-megawatt drive, entire process lines instantly gridlock. The ABB 5SHY3545L0009 (order code 3BHB013085R0001) serves as the primary power semiconductor switching element in ABB ACS 6000 and ACS 5000 medium-voltage drive assemblies. Engineered with an integrated low-inductance perimeter gate drive ring, it provides rapid, snubberless turn-off performance to protect heavy rotating assets against current spikes.
Installing a factory-matched 5SHY3545L0009 disc module ensures identical gate firing timing and low on-state conduction losses across the whole inverter stack. The integrated fiber-optic transceiver ring isolates high-voltage silicon operations from control electronics, restoring drive reliability without requiring recalibration of main controller switching parameters.
Technical Specifications
| Parameter | Technical Specification |
| Type Designation | 5SHY3545L0009 |
| ABB Order Code | 3BHB013085R0001 |
| Device Architecture | Asymmetric Integrated Gate-Commutated Thyristor (A-IGCT) |
| Peak Repetitive Off-State Voltage (V_{DRM}) | 4500 V |
| Controllable Turn-Off Current (I_{TGQM}) | ~3500 A |
| Gate Drive Control Link | Dual Fiber-Optic Cable Interface |
| Mechanical Design | Hermetic Press-Pack Capsule with Ring PCB Gate Unit |
| Cooling Configuration | Double-sided liquid or forced-air press-pack heat sink assembly |
| Operating Junction Temperature (T_j) | −40°C to +125°C |
| Physical Dimensions & Net Weight | ~280 mm x 260 mm x 50 mm; Net Weight: ~2.8 kg (6.17 lbs) |
Field Application & The “Trench” Experience
The Field Story
An underground mining operation suffered a high-torque fault on its 6MW main skip hoist driven by an ABB ACS 6000 converter. Inspection revealed an optical gate driver failure on the Phase A lower IGCT module, caused by long-term cyclic thermal stress on the gate power circuit. The site crew pulled the damaged stack, cleaned the double-sided water-cooling plates, and installed a verified 3BHB013085R0001 / 5SHY3545L0009 module. After torquing the clamping frame to exact factory specifications, the drive re-initialized seamlessly, returning the hoist to full rock-lifting duty within 3 hours.
Critical Niche Applications
- Mine Hoist & Dragline Inverters: High-torque reversing drives requiring rapid switching under heavy cyclic loads.
- Marine Podded Propulsion Drives: Main propulsion power electronic building blocks (PEBB) operating in compact, high-efficiency converter cabinets.
- Gas Turbine Starter Converters: High-voltage frequency converters providing controlled acceleration for power plant turbine generation sets.

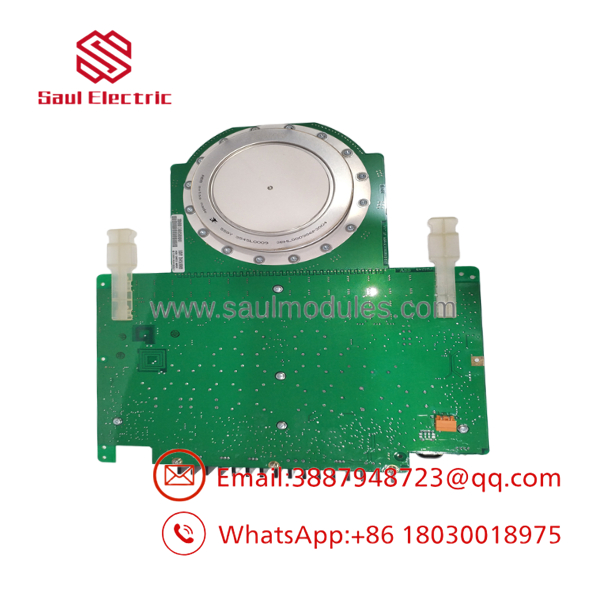

- 5SHY3545L0009

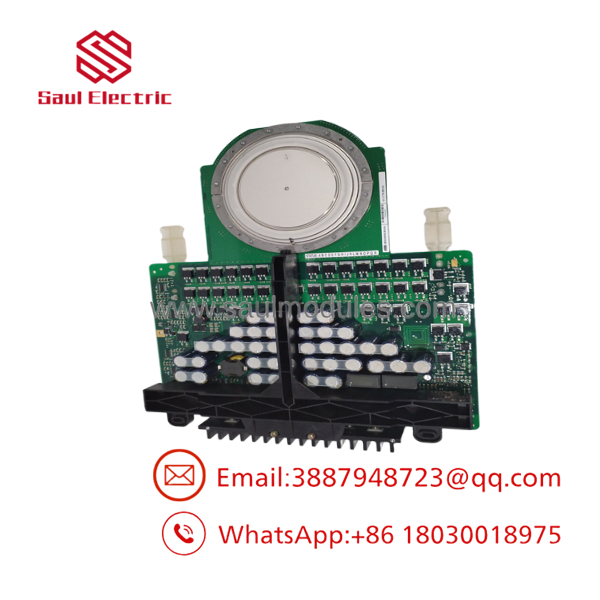

- 5SHY3545L0009
Transparency SOP: QA & Testing
Every replacement 5SHY3545L0009 / 3BHB013085R0001 module undergoes a 4-stage quality check before being authorized for dispatch:
- Pole Piece & Contact Surface Audit: High-magnification visual inspection of copper pole surfaces to verify zero pitting, oxidation, or burrs that could compromise thermal transfer.
- Gate Unit Circuit Diagnostics: Electrical parameter check of the perimeter gate driver board, verifying onboard capacitor health, power rails, and optical receivers.
- Optical Firing & Response Test: Powering the gate board ring and cycling test pulse patterns over optical fibers to confirm trigger timing and status feedback logic.
- Static Voltage Holding Test: High-potential test to confirm off-state voltage blocking capability up to nominal ratings without leakage currents.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: Follow Precise Clamping Force Specifications! Press-pack IGCT modules depend on uniform mechanical pressure (kN) applied by the stack clamp to maintain electrical and thermal contact. Never tighten clamping bolts by eye or hand feel. Under-clamping creates micro-gaps that lead to silicon burn-through within seconds; over-clamping physically cracks the internal semiconductor wafer.
- PRO TIP: Inspect Fiber Optic Backshells. The dual fiber cables connecting to the perimeter gate unit must click firmly into place. Check for micro-cracks in the plastic connector heads or excessive cable tension, which can cause intermittent signal loss and trip the drive on gate feedback errors.
- PRO TIP: Use Clean Thermal Interface Material. Always clean heat sink faces with isopropyl alcohol before reinstallation. Use factory-specified thermal foils or apply a uniform, thin layer of high-conductivity silicone-free grease to prevent thermal hot spots.
Dynamic FAQ
Q: Is the 5SHY3545L0009 direct replacement for part number 3BHB013085R0001?
A: Yes. 5SHY3545L0009 is ABB’s type designation, while 3BHB013085R0001 is the corresponding commercial ordering/part code. They refer to the exact same physical IGCT assembly.
Q: Do I need to replace all IGCT modules in a stack if one fails?
A: No, individual 5SHY3545L0009 modules can be swapped independently. However, it is standard practice to inspect neighboring freewheeling diodes and clean adjacent heat sink surfaces whenever a phase leg is disassembled.
Q: Does this IGCT module require an external gate driver board?
A: No. The 5SHY3545L0009 includes an integrated gate driver board attached directly around the outer ring of the press-pack housing. It accepts direct auxiliary power and fiber-optic control inputs.
Q: What condition are these modules supplied in, and what is the warranty?
A: We supply both Certified New Surplus and fully reconditioned, tested modules. All units include a standard 12-month operational warranty.
