ABB 758108 Syscon 3 Complete Circuit Board

Description

Product Introduction

The ABB 758108 is a Syscon 3 Complete Circuit Board designed as the central processing and control board for ABB Syscon 3 systems. It functions as the primary controller, executing application software, managing process communications, and coordinating field interfaces within ABB process analysis and automation equipment.

One thing to watch out for is that Syscon 3 hardware exists in multiple revisions. ABB documentation indicates that 758108 superseded earlier product IDs (including 0769065) and was later referenced by replacement part 758108P. Hardware compatibility should always be confirmed before installation, particularly when maintaining legacy analyzer or process automation systems.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a situation that’s common with long-running analyzer systems.

The gas analyzer still measures correctly, but communication becomes unstable after every reboot. Operators suspect the Ethernet network or field wiring. Hours later, diagnostics reveal the controller board is no longer completing its startup sequence.

That’s usually where the Syscon 3 board enters the investigation.

Typical Applications

Process Analytics — Continuous gas analyzers — Executes analyzer control logic and communication functions.

Power Plants — Flue gas monitoring systems — Coordinates analyzer measurements and transmits process data.

Chemical Processing — Process analyzer cabinets — Controls sampling sequences and system diagnostics.

Oil & Gas — Emission monitoring systems — Interfaces analyzer hardware with plant control systems.

Environmental Monitoring — Continuous emissions monitoring (CEMS) — Maintains communication between analyzers and supervisory systems.

Field Case Study

A combined-cycle power station experienced repeated startup failures on an ABB analyzer cabinet after an extended outage. Power supplies and I/O boards passed inspection, but the controller consistently halted during boot.

The maintenance team replaced the ABB 758108 Syscon 3 Complete Board, restored the system configuration from backup, verified analyzer communication, and completed calibration checks. The analyzer returned to continuous service without requiring replacement of the field instruments.

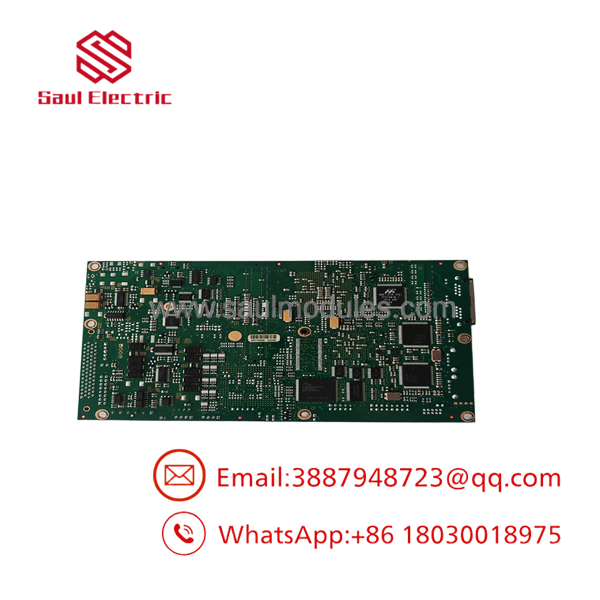

758108

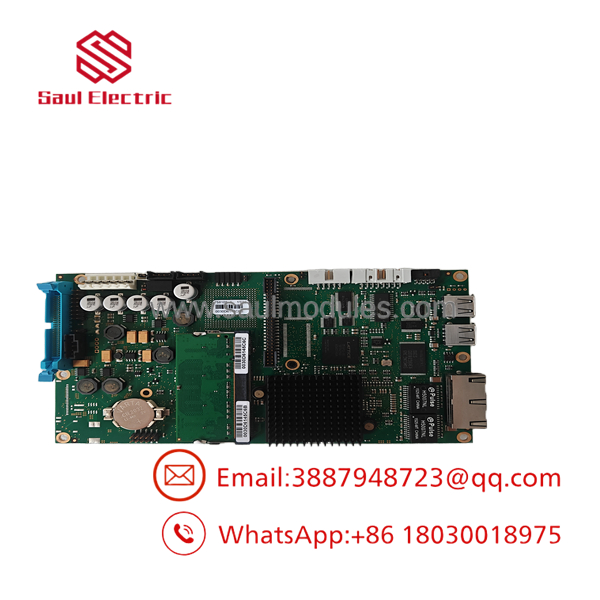

758108

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible ABB Syscon 3 platforms whenever practical.

• Inbound Inspection
  • Verify ABB identification labels and PCB revision.
  • Inspect connectors, SD memory components, and solder joints.
  • Check for corrosion, overheating, or previous repair work.
• Live Rig Testing
  • Install the board in a Syscon 3 test chassis.
  • Verify successful boot sequence.
  • Confirm controller initialization.
  • Test communication interfaces where available.
• Electrical Parameter Checks
  • Verify power rail stability.
  • Inspect memory operation.
  • Check processor initialization.
  • Confirm backplane communication.
• Hardware Verification
  • Record hardware revision.
  • Verify SD RAM configuration.
  • Confirm compatibility with the customer’s installed system.
• Final QC & Anti-static Packaging
  • Functional inspection.
  • Anti-static packaging.
  • Shock-resistant export packing.
  • Product traceability documentation.

The Veteran’s Tech Trap Guide

⚠️ Back up the controller configuration first.

Many Syscon 3 installations contain application files that cannot be recreated without the original engineering project.

⚠️ Verify the hardware revision.

Although the boards appear similar, different Syscon generations are not always interchangeable. Confirm the complete spare part number before ordering.

❗ Inspect the backplane connectors carefully.

In our field experience, oxidation on the controller connector can create intermittent startup failures that resemble a defective CPU board.

⚠️ Don’t replace the board before checking the power supply.

An unstable power rail can corrupt SD RAM initialization and produce symptoms identical to a failed controller.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 758108?

It is the Syscon 3 Complete Circuit Board, serving as the CPU and system controller for ABB Syscon 3 process automation and analyzer systems.

Q2. Does this board include memory?

Yes. ABB identifies the board as Syscon 3 with 512 MB SD RAM.

Q3. Is 758108 a current ABB product?

It is primarily supplied today as a legacy spare part for existing installations. Availability is generally through surplus inventory or industrial spare-parts distributors.

Q4. Can the board be replaced while the system is powered?

No.

Power down the controller, isolate the equipment, and follow ABB service procedures before removing or installing the board.

Q5. Is 758108 interchangeable with earlier Syscon boards?

Not automatically. ABB documentation indicates that 758108 replaced earlier part numbers such as 0769065, but compatibility depends on the specific system configuration and hardware revision. Verify the spare-parts list before replacement.

Q6. What warranty is typically available?

Most professional industrial surplus suppliers offer a 12-month warranty for new surplus or professionally tested refurbished units, although terms vary by supplier.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Part Number: 758108
• Installed Syscon generation
• Hardware revision
• Existing controller configuration backup
• Backplane compatibility
• Analyzer or automation system model
• Any replacement history (for example, previous use of 0769065 or 758108P)

Finally, compare the complete identification label on the installed board—not just the base part number. Legacy Syscon systems often depend on matching hardware revisions as much as matching the product number itself.
