ABB ACU-01B Robotics Axis Control Unit

Description

Product Introduction

The ABB ACU-01B is a dedicated control unit used in ABB IRC5 robotic systems, particularly applications involving paint robots and specialized motion control. The module exchanges high-speed data between the robot controller and distributed drive or process nodes while coordinating application-specific functions.

One thing to watch out for is communication mode compatibility. Earlier spare units were often shipped in CAN mode, while many robot systems delivered from 2019 onward operate in Ethernet (ETH) mode. Installing a replacement without verifying this setting can prevent the controller from communicating with the robot hardware, even when the module itself is functioning correctly.

Key Technical Specifications

Important: Communication mode is a configuration parameter rather than a hardware difference. ABB provides a documented procedure to switch between CAN and Ethernet modes when required.

Application Scenarios & The “Trench” Experience

This one has trapped more than a few experienced robot technicians.

A replacement ACU-01B arrives, installs perfectly, powers up normally, and shows no hardware faults. Yet the robot refuses to communicate with the drive system.

Hours are spent checking cables, power supplies, and controller software.

The actual problem?

The replacement module is configured for CAN, while the production robot operates over Ethernet.

Changing one configuration parameter restores the entire system.

Typical Applications

Automotive Paint Shops — ABB IRB 5400/5500 paint robots — Coordinates application-specific communication and process control.

Automotive Manufacturing — Robotic body finishing — Supports synchronized motion and process commands.

Industrial Coating Systems — Multi-robot paint cells — Maintains communication between controller and distributed process equipment.

General Robotics — IRC5-based robotic systems — Provides dedicated application control for specialized robotic functions.

Field Case Study

A vehicle assembly plant replaced an ACU-01B during scheduled maintenance after intermittent communication alarms.

The new hardware initialized correctly but would not establish communication with the existing IPS network. Engineers initially suspected damaged Ethernet wiring.

After reviewing ABB’s service note, they connected through the console port, changed the communication mode from CAN to Ethernet, rebooted the module, and immediately restored communication without replacing any additional hardware.

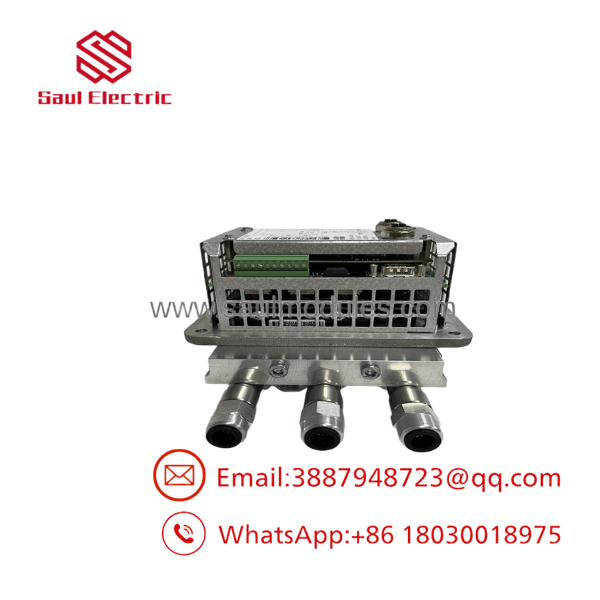

ACU-01B

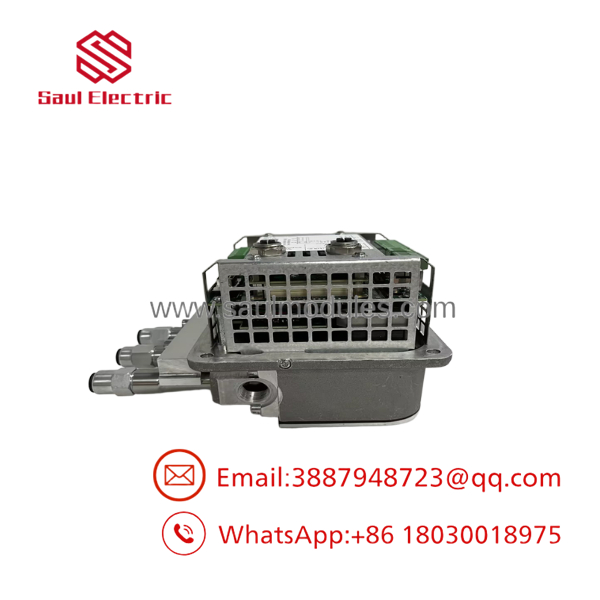

ACU-01B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible ABB IRC5 robotic controllers whenever practical.

• Inbound Inspection
  • Verify ABB labels and product identification.
  • Inspect PCB assemblies and connectors.
  • Check for shipping damage and previous repair work.
• Live Rig Testing
  • Install the module in an IRC5 test controller.
  • Verify successful startup.
  • Confirm communication initialization.
  • Inspect system diagnostics.
• Electrical Parameter Checks
  • Verify control voltages.
  • Test communication interfaces.
  • Confirm processor initialization.
  • Inspect internal diagnostics.
• Configuration Verification
  • Record hardware revision.
  • Verify communication mode (CAN or Ethernet).
  • Confirm compatibility with customer requirements.
• Final QC & Anti-static Packaging
  • Functional inspection.
  • Anti-static packaging.
  • Moisture protection.
  • Shock-resistant export packaging.

The Veteran’s Tech Trap Guide

⚠️ Verify the communication mode before installing the spare.

ABB specifically warns that mixing Ethernet and CAN IPS communication within the same system is not supported.

⚠️ Don’t assume every ships configured the same way.

Older inventory frequently arrives configured for CAN operation, while many newer robot installations require Ethernet mode.

❗ Connect through the console port first.

Before replacing additional hardware, verify the communication mode using the console interface. It can save several hours of unnecessary troubleshooting.

⚠️ Record the original robot configuration.

Take photos of cabinet wiring and save the controller backup before replacing the module. Motion hardware problems often turn out to be configuration issues rather than hardware failures.

Frequently Asked Questions (FAQ)

Q1. What is the ABB ?

The is a specialized ABB Robotics control unit used with IRC5 robot controllers for motion-related communication and application control.

Q2. Which ABB robots use the ?

It is commonly found in ABB -based robotic systems, particularly robotic paint and finishing applications that use IPS communication.

Q3. Can I install any as a direct replacement?

Not always.

The hardware may be identical, but the communication mode must match the existing robot system. Verify whether the controller is configured for Ethernet or CAN before commissioning.

Q4. Does replacing the require software changes?

Usually not, but communication mode verification is essential. ABB provides a documented procedure for changing the module between CAN and Ethernet operation through the console port if required.

Q5. Can the module be replaced while the robot remains powered?

No.

Power down the controller, follow lockout/tagout procedures, and wait for the controller to discharge before removing or installing the module.

Q6. What warranty is typically available?

Most professional industrial surplus suppliers provide a 12-month warranty for tested new surplus or refurbished modules. Warranty terms vary by supplier.

Q7. What should be verified before ordering?

Confirm the following:

• Model:
• ABB Product Number (for example, 3HNA024871-001)
• controller version
• Robot model
• Communication mode (Ethernet or CAN)
• Hardware revision
• Existing system backup

Finally, compare the replacement module’s configuration with the installed controller before startup. For , matching the communication mode is just as important as matching the part number.
