ABB AI830A S800 RTD Analog Input Module 8 Channel

Description

Product Introduction

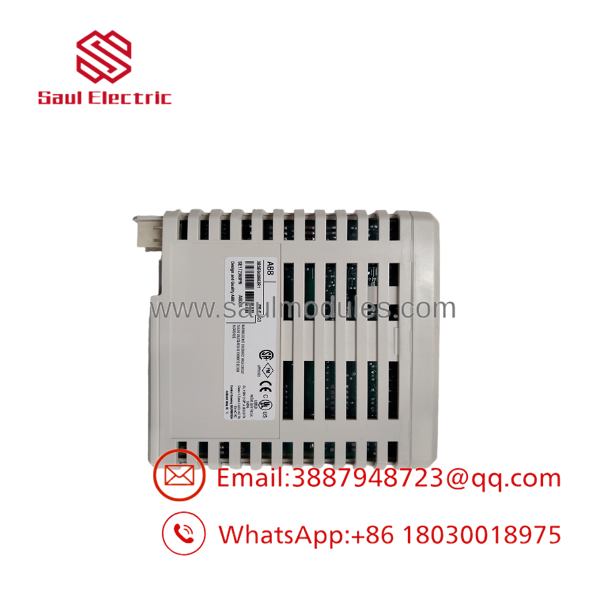

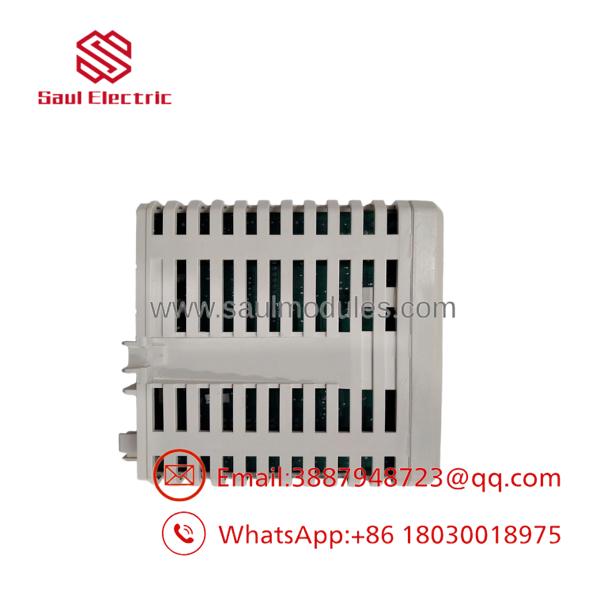

The ABB AI830A (3BSE040662R1) is an 8-channel RTD analog input module designed for the ABB S800 I/O system used with System 800xA and other ABB control platforms. It acquires temperature signals from resistance temperature detectors including Pt100, Cu10, Ni100, and Ni120 sensors through three-wire connections.

Unlike current-input modules such as AI801, the AI830A is dedicated to temperature measurement applications where sensor resistance accuracy matters. Each channel can be configured independently, with onboard linearization converting resistance measurements into engineering temperature values. Before installation, verify the RTD wiring method and sensor type because a three-wire RTD module will not correctly replace a standard 4–20 mA input card.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A temperature loop starts jumping between normal operation and alarm condition.

Operators blame the transmitter.

Maintenance replaces the RTD probe.

The problem remains.

This happens often in older process plants. Temperature measurement failures are not always caused by the sensor itself. The input module, wiring resistance, grounding, and configuration all affect the final reading.

The ABB AI830A is typically involved when multiple temperature channels disappear together or several readings become unstable at the same time.

AI830A

AI830A

Typical Applications

Power Generation — Turbine and boiler temperature monitoring — Reads RTD signals from bearings, steam lines, and auxiliary equipment.

Chemical Processing — Reactor temperature control — Provides accurate RTD measurement for critical process loops.

Oil & Gas — Compressor and pump monitoring — Collects temperature feedback from rotating equipment.

Pulp & Paper — Dryer and process temperature control — Handles multiple RTD measurements through one S800 I/O station.

Water Treatment — Motor and process equipment monitoring — Provides temperature feedback for pumps and treatment systems.

Field Case Study

A chemical plant running ABB System 800xA reported several incorrect temperature readings from a reactor area. Operators suspected damaged Pt100 sensors because the values drifted during operation.

Technicians checked the sensors with a calibrated resistance meter and confirmed the field devices were within specification. The fault followed the I/O channels, pointing toward the analog input module.

After replacing the 3BSE040662R1, checking the three-wire connections, and verifying channel configuration, the temperature values returned to normal. The plant avoided replacing dozens of field sensors unnecessarily.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible ABB S800 I/O racks whenever practical.

• Inbound Inspection
  • Verify ABB identification label and article number.
  • Inspect module housing, connectors, and terminal interfaces.
  • Check for storage damage, oxidation, and repair marks.
• Live Rig Testing
  • Install the into an ABB S800 test rack.
  • Verify module startup and diagnostics.
  • Connect simulated RTD inputs.
  • Confirm temperature conversion accuracy.
• Electrical Parameter Checks
  • Verify input channel response.
  • Test RTD resistance measurement.
  • Check isolation performance.
  • Confirm sensor fault detection.
• Hardware Verification
  • Record module revision.
  • Verify supported RTD configuration.
  • Confirm MTU compatibility.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • Apply anti-static protection.
  • Add moisture protection.
  • Prepare export-safe packaging.

The Veteran’s Tech Trap Guide

⚠️ Do not install on a 2-wire RTD loop without checking the design.

The is designed around three-wire RTD measurement. Incorrect wiring can create temperature errors caused by lead resistance compensation problems.

⚠️ Check the sensor type before replacement.

Pt100, Cu10, Ni100, and Ni120 sensors have different resistance characteristics. Selecting the wrong configuration will produce incorrect temperature calculations even when the hardware is healthy.

❗ Measure the resistance at the cabinet terminal, not only at the field sensor.

Long cable runs add resistance. A technician may see a healthy sensor at the instrument but a faulty signal at the I/O card.

⚠️ Do not confuse with AI825 or AI835A.

ABB S800 analog modules look similar, but their signal types are different. AI825 handles current/voltage inputs, while is an RTD input module. Verify the complete part number before installation.

Frequently Asked Questions (FAQ)

Q1. What is the ABB ?

The ABB is an 8-channel RTD analog input module for ABB I/O systems. It measures temperature using Pt100, Cu10, Ni100, Ni120, and resistance-based sensors.

Q2. What is the ABB part number for ?

The standard ABB ordering number is:

— 3BSE040662R1

Q3. Does support 4–20 mA signals?

No.

is designed for RTD and resistance measurement. For 4–20 mA transmitters, select an ABB current input module such as AI801 or another compatible analog input card.

Q4. Can be hot-swapped?

It depends on the installed ABB I/O architecture and system configuration.

Do not assume hot replacement is allowed. Follow the plant maintenance procedure and confirm the specific installation supports energized module replacement.

Q5. What are common failure symptoms?

Typical symptoms include:

• Multiple temperature channels showing bad quality
• Open-circuit RTD alarms
• Short-circuit sensor alarms
• Incorrect temperature conversion
• Loss of several RTD measurements

Always verify sensor wiring first. A damaged RTD cable can produce the same symptoms.

Q6. Why is surplus stock cheaper than direct ABB supply?

Legacy automation modules often enter the surplus market from plant upgrades, unused maintenance inventory, and control system modernization projects. Tested surplus hardware can help maintain existing ABB installations without replacing an entire I/O system.

Q7. What should be checked before ordering ?

Confirm:

• ABB Model:
• Article Number: 3BSE040662R1
• I/O compatibility
• RTD sensor type
• Three-wire wiring method
• MTU type
• Existing hardware revision
• Controller configuration

Verify exact terminal assignments with ABB documentation before installation. A matching model number does not guarantee correct operation if the RTD wiring and engineering configuration do not match.
