Product Introduction
The ABB AX460100010STD is a high-precision dual-input analyzer designed for continuous pH and Redox (ORP) measurement in industrial fluid processes. Built within a rugged IP65 wall-mount housing equipped with pre-fitted cable glands, this transmitter acts as the central monitoring hub for raw water treatment, chemical dosing skids, and effluent treatment facilities.
Unlike standard single-channel transmitters, the AX460 configuration allows simultaneous monitoring of two process loops or advanced PID control tied to a primary process variable. It incorporates automatic temperature compensation (Pt100/Pt1000) and multi-language back-lit display matrices. This eliminates signal drift caused by thermal expansion in high-temperature process streams, cutting recalibration intervals significantly.
Key Technical Specifications
| Parameter | Specification |
| Full Part Number | AX460/100010/STD |
| Primary Variable (PV1) | pH / Redox (ORP) |
| Secondary Variable (PV2) | None (Configured for PID control of PV1) |
| Supply Voltage | 100 to 240 V AC (50/60 Hz) |
| Enclosure Rating | NEMA 4X / IP65 Wall-Mount (Cable glands fitted) |
| Analog Outputs | 2x isolated 0-20 mA or 4-20 mA outputs |
| Relay Outputs | 3 SPDT relays (configurable for alarm/control) |
| Temperature Sensor Compatibility | Pt100, Pt1000, or Balco 3k Ω |
| Display Type | High-contrast backlit graphic LCD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
Application Scenarios & The “Trench” Experience
A municipal wastewater plant in Ohio suffered a main discharge line shutdown when an aging analyzer lost its pH reference signal during a storm surge. The out-of-range reading triggered an automatic lock-out valve, backing up millions of gallons of effluent. The instrument tech swapped in a replacement AX460 unit, ran a rapid two-point buffer calibration, and verified relay trip points within 25 minutes, bringing the discharge pumps back online before the equalization tanks overflowed.
- Chemical Manufacturing – Acid-Base Neutralization – Drives dosing pumps via onboard PID control to hold tank pH within narrow stoichiometric bounds.
- Power Generation – Boiler Feedwater Conditioning – Tracks ultra-pure water pH to prevent stress corrosion cracking on high-pressure steam turbines.
- Pharmaceutical Processing – Fermentation Broth Monitoring – Delivers millivolt-accurate ORP data for monitoring bioprocess cell growth.
- Municipal Wastewater – Discharge Effluent Compliance – Logs real-time 4-20mA trends to local PLCs for EPA environmental reporting.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual ABB analytical rigs before they leave our warehouse bench:
- Inbound & Enclosure Inspection: We examine the IP65 rubber door seals, verify original terminal strip blocks, and inspect the display glass for micro-fractures or water ingress marks.
- Power-Up & Display Diagnostics: High-voltage AC supply (120V/240V) is applied to verify transformer boot-up sequence, backlight uniformity, and EEPROM checksum integrity.
- Millivolt & Temperature Simulation: Using precision decade boxes and mV simulators, we inject raw pH (+59.16 mV/pH unit at 25°C) and Pt100 resistance values to confirm reading linearity across the entire 0-14 pH spectrum.
- 4-20mA Output & Relay Handshake Check: Both current loops are driven to 4mA, 12mA, and 20mA onto a calibrated load, verifying that signal transmission errors stay strictly under 0.1%. All three SPDT alarm relays are cycled under load.
- Desiccant Sealing & ESD Safe Packing: Terminal covers are secured, gland plugs fitted, and the entire assembly is wrapped in anti-static ESD barrier wrap with fresh moisture-absorbing desiccant packs.

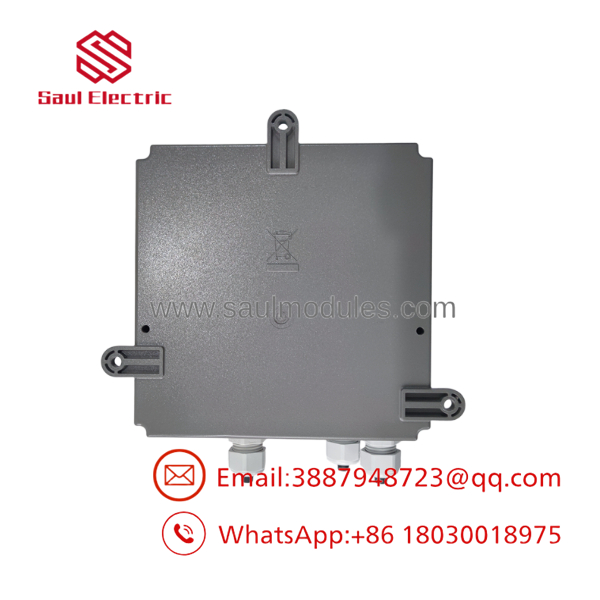

- AX460100010STD

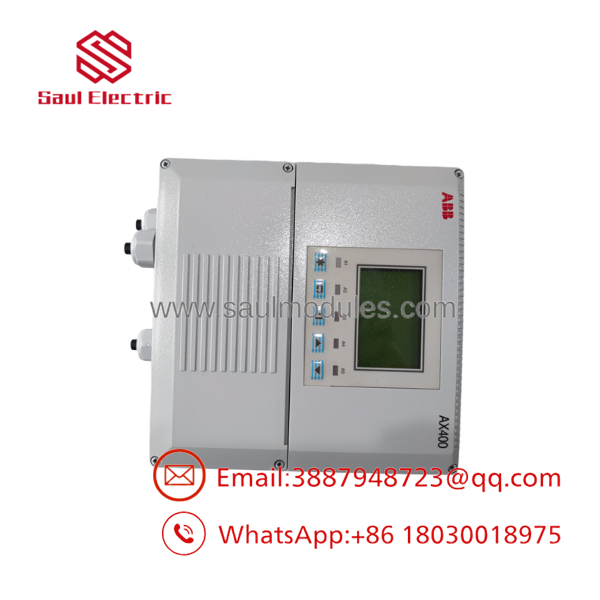

- AX460100010STD
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Glass Electrode BNC Isolation: Never run high-impedance pH coaxial cables in the same conduit tray as raw 240V AC power leads. Electromagnetic noise will induce micro-volt ripples into the sensor signal line, causing wild pH reading spikes on the AX460 screen.
❗ Forgotten Jumper Configurations: The AX460100010STD uses internal PCB header pins to set sensor ground loops and isolation modes. If you are retrofitting a non-glass ISFET probe or a combined reference electrode, check the internal jumper position before applying power—otherwise, you will get an instant “Sensor Input Out of Range” fault.
⚠️ Cable Gland O-Rings: If you are mounting this unit outdoors or near process washdown zones, ensure the clear front cover latch clicks down fully and thread-seal the cable glands. Water running down the sensor wire past a loose gland nut will rot the internal terminal blocks within six months.
Frequently Asked Questions (FAQ for Conversion)
Q: Can the AX460100010STD monitor both pH and Conductivity simultaneously?
A: No. The AX460 architecture is strictly dedicated to pH and Redox (ORP) inputs. If you require conductivity or dissolved oxygen analysis, you must step up to the AX410 or AX480 series transmitters.
Q: Is this unit compatible with non-ABB pH sensors?
A: Yes. As long as your third-party pH sensor uses a standard glass measuring electrode, a reference junction (Ag/AgCl), and a standard Pt100 or Pt1000 RTD for temperature compensation, the AX460 will accept the signal without issues.
Q: What does the “STD” suffix mean on this part number?
A: “STD” specifies the standard software and hardware configuration—featuring basic 2x current outputs, 3x alarm relays, 100-240V AC power, and standard English manual documentation with cable glands. It does not include advanced fieldbus protocols like PROFIBUS DP.
Q: Do I need a specialized programmer to calibrate this unit?
A: Not at all. All calibration procedures—including 1-point sample calibration, 2-point buffer calibration, and temperature sensor offset—are performed directly through the front-panel membrane keypad and graphic LCD menu.
Q: What warranty is provided with this transmitter?
A: Every unit we supply carries a full 12-month operational warranty. If the hardware fails or an analog output channel drifts beyond OEM specifications within one year, we provide an immediate advance replacement.
