Description
Product Introduction & Engineering Value
Large process plants rarely keep every controller and I/O cabinet in the same electrical room. The ABB cRBX01 solves this challenge by extending the HN800 remote I/O bus over fiber optics, allowing distributed equipment to communicate as though it were installed locally.
Designed for ABB Symphony Plus SD Series and HR Series controllers, the cRBX01 requires no application changes or special configuration. It transparently forwards HN800 bus traffic, making it an effective solution for remote substations, turbine buildings, and widely separated process units. It can also extend the CW800 controller bus for peer-to-peer communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | cRBX01 (CRBX01) |
| Product Type | Fiber Optic Remote Bus Extender |
| System Platform | ABB Ability™ Symphony® Plus |
| Supported Bus | HN800 I/O Bus, CW800 Controller Bus |
| Communication Type | Fiber Optic Repeater |
| Transmission Speed | 4 MBps |
| Maximum Fiber Distance | Up to 3 km |
| Maximum Capacity | 60 HN800 I/O or communication modules per remote link |
| Fiber Type | 62.5/125 µm Multimode Fiber |
| Optical Connectors | 2 × ST Style Fiber Connectors |
| Diagnostics Port | Mini USB |
| Line Redundancy | Supported |
| Hot Swap | Supported |
| Form Factor | Compact (127 mm) |
| Typical Weight | Approximately 650 g (with mounting base) |
| RoHS Compliance | RoHS Directive 2015/863 compliant |
Field Application & The “Trench” Experience
During the expansion of a thermal power station, engineers needed to connect a new remote electrical building located more than two kilometers from the existing Symphony Plus controller room. Copper communication links were unsuitable because of electrical noise and distance limitations.
Rather than relocating controllers or redesigning the automation architecture, the engineering team installed a pair of cRBX01 fiber optic repeaters. The HN800 network immediately recognized the remote I/O cabinets as local devices, allowing commissioning to proceed without modifying the control application. Fiber communication remained stable despite high electromagnetic interference from nearby switchgear.
Typical applications include:
- Boiler and turbine remote I/O buildings in power stations
- Refinery tank farm instrumentation over long fiber runs
- Mining conveyor substations with distributed control cabinets
- Water treatment facilities with geographically separated pump stations
Transparency SOP: QA & Testing
Before shipment, every cRBX01 module completes a documented inspection procedure.
- Verify model identification and hardware revision.
- Inspect ST fiber connectors for contamination or mechanical damage.
- Confirm electrical bus connector integrity.
- Perform power-up diagnostics and LED verification.
- Test optical communication using compatible Symphony Plus hardware where available.
- Package the module in ESD-safe materials with protective cushioning for transport.
The Veteran’s Tech Trap Guide
⚠️ Fiber quality matters more than the module.
Many communication problems originate from dirty ST connectors, excessive splice loss, or damaged multimode fiber—not the repeater itself. Always inspect and clean fiber connectors before replacing hardware.
⚠️ Use the correct fiber specification.
The cRBX01 is designed for 62.5/125 µm multimode fiber. Installing incompatible fiber types or exceeding the specified optical loss budget can produce intermittent communication failures that are difficult to diagnose.
PRO TIP:
Before replacing a repeater, measure optical attenuation with an optical power meter or OTDR. In aging industrial environments, degraded fiber infrastructure is often responsible for communication alarms.
⚠️ Understand redundancy capabilities.
The cRBX01 supports line redundancy, but it does not provide module redundancy. Plan the network architecture accordingly if high availability is required.

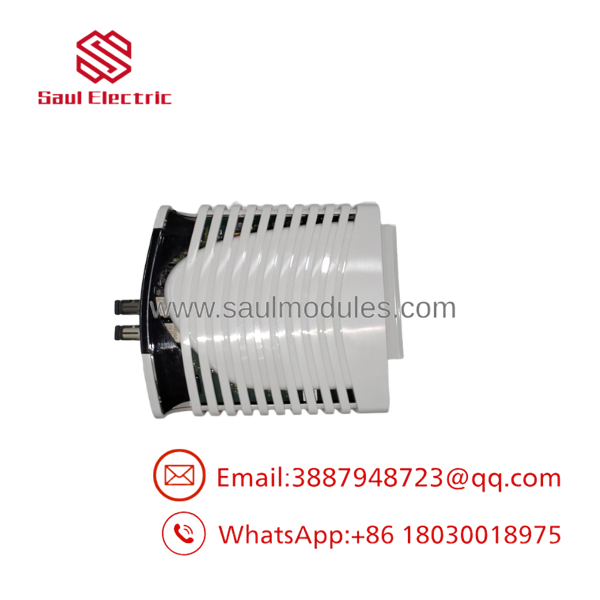

- CRBX01

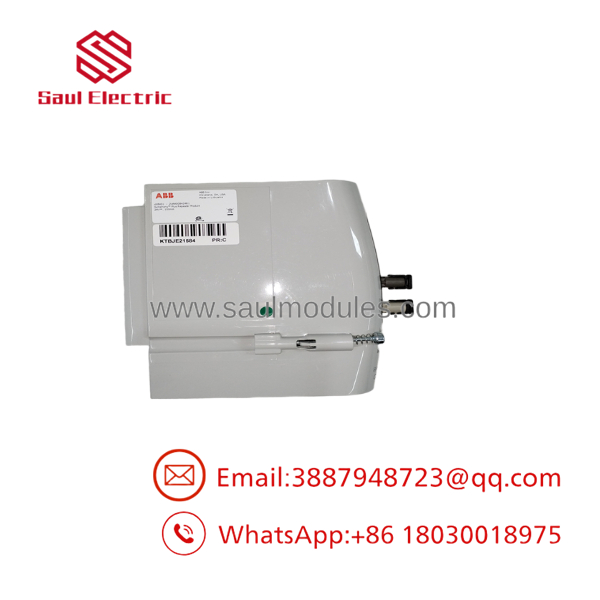

- CRBX01
Dynamic FAQ
Q1. What is the primary function of the ABB cRBX01?
The cRBX01 extends the HN800 remote I/O bus over fiber optic cable, enabling remote Symphony Plus I/O cabinets to communicate with SD Series and HR Series controllers across distances of up to 3 km. It can also extend the CW800 controller bus.
Q2. How many devices can one fiber link support?
Each remote link supports up to 60 I/O or communication modules, allowing substantial distributed I/O expansion without changing the controller application.
Q3. Does the cRBX01 require configuration?
No. The repeater operates transparently and normally requires no configuration, allowing remote devices to function the same as locally connected modules.
Q4. Are New Surplus cRBX01 modules genuine ABB products?
Yes. New Surplus inventory consists of unused original ABB hardware stored under controlled warehouse conditions. Each module is inspected for model identification, connector condition, and physical integrity before shipment.
Q5. Which mounting kits are available?
ABB supplies the cRBX01 in several bundled kits, including HRBX01K02, HRBX01K04, VRBX01K02, and VRBX01K04, depending on horizontal or vertical mounting requirements and the number of repeater modules included.
Q6. Is warranty available?
Yes. Both New Surplus and professionally refurbished cRBX01 modules are available with warranty coverage. Warranty terms vary according to product condition and are confirmed with the sales quotation.
