Product Introduction & Engineering Value
Legacy process control systems like ABB Advant OCS require rock-solid communication hardware to prevent data bottlenecks between central processors and distributed I/O racks. The ABB CS513 module (Part No. 3BSE000435R1) serves as a critical communication bridge within Master Piece controller architectures, ensuring deterministic data transfer across plant networks.
Engineered for rugged industrial control environments, this board maintains continuous link integrity under harsh electromagnetic conditions. Plant maintenance engineers rely on its drop-in rack compatibility to replace aging communication hardware during scheduled turnarounds, avoiding the massive downtime and expense of a complete control system migration.
Technical Specifications
- System Platform: ABB Advant OCS / Master Piece Control Architecture
- Module Type: Communication / Interface Processor Unit
- Bus Communication: MasterBus 300 / internal rack backplane interface
- Mounting Configuration: Standard card-file slot installation within Advant controller chassis
- Diagnostic Suite: Front-panel LED status indicators for power, module error, and link activity
- Power Requirements: Powered internally via controller backplane power bus rails
- Operating Ambient Temperature: 0°C to +55°C (32°F to 131°F) industrial standard range
- Enclosure Format: Eurocard printed circuit board assembly with front extraction handle
Field Application & The “Trench” Experience
During a routine operational cycle at a continuous pulp and paper mill, an Advant Controller 450 node dropped communication with several remote I/O islands when an aging communication board threw an unrecoverable parity error. Shutting down the paper machine for a modern DCS upgrade would have resulted in staggering lost production costs. The instrument technician retrieved a verified New Surplus ABB CS513 3BSE000435R1 module from the plant’s critical spares stock, verified the board jumper settings against the system documentation, and slid the unit into the controller card file. The node established a clean MasterBus handshake on the first boot cycle, restoring full data flow to the operator consoles within fifteen minutes.
Targeted Application Scenarios:
- Pulp Mill Digester Control Nodes: Managing high-density data exchanges between central controllers and remote valve racks.
- Petrochemical Utility Boiler Automation: Handling deterministic fieldbus communication loops in high-temperature electrical rooms.

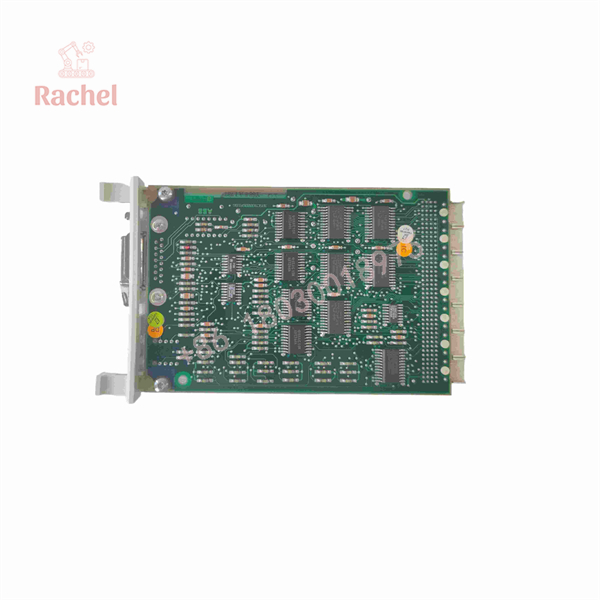

CS513 3BSE000435R1

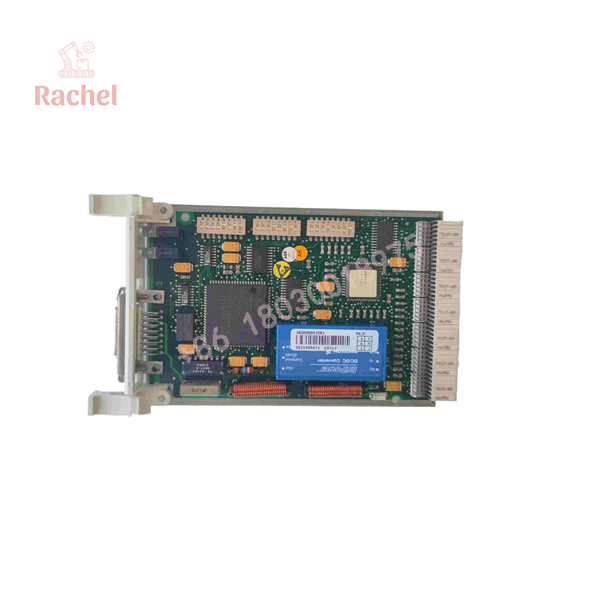

CS513 3BSE000435R1
Transparency SOP: QA & Testing
1.Visual & Backplane Edge Inspection:10 min.
Examine gold-finger edge connectors, surface-mount ICs, and electrolytic capacitors under optical magnification for thermal wear or corrosion.
2.Chassis Power Rail Stress Test:30 min.
Seat the CS513 module into a live ABB Advant test chassis fixture to verify internal voltage regulation and cold-boot initialization sequences.
3.MasterBus Communication Verification:1 hr.
Hook the module into an isolated test network to validate packet transmission integrity, bus polling speed, and error-free register handshakes.
4.Thermal Chamber Burn-In:24 hrs.
Operate the unit continuously in a controlled thermal chamber environment to screen out latent component defects prior to customer dispatch.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ BACKPLANE PIN ALIGNMENT HAZARD: The high-density card edge connectors on the CS513 module are easily bent if forced into a controller card file at an angle. Always align the board precisely with the top and bottom chassis guides and seat it smoothly using the integrated extractor handles.
PRO TIP: Always back up your controller configuration database via the Advant engineering station before pulling any communication board. While configuration data is largely preserved in controller memory, swapping bus modules without verifying node status can occasionally trigger synchronization alarms that require a manual database reload.
Dynamic FAQ
- Q: Is the ABB CS513 (3BSE000435R1) compatible with Advant Controller 410 and 450 systems?
- A: Yes, it is specifically engineered for integration within ABB Advant OCS controller card files supporting MasterBus 300 communication architectures.
- Q: Do I need to re-configure software addresses when replacing this board?
- A: As long as the hardware jumper settings and physical slot position match the failed unit, the controller will recognize the replacement module using existing system parameters.
- Q: Are your replacement CS513 units brand new or refurbished?
- A: Our stock consists of verified New Surplus and rigorously reconditioned, fully bench-tested units ready for immediate industrial deployment.
- Q: What warranty coverage comes with this module?
- A: Every ABB CS513 unit is backed by our comprehensive 12-month full replacement warranty covering all functional performance aspects.
