Description
Product Introduction & Engineering Value
Intermittent field signals are among the most frustrating problems in process automation. Before replacing sensors or PLC logic, experienced engineers often verify whether the digital input module is accurately capturing every state change.
The ABB DI650 is a high-density 32-channel digital input module for the ABB S600 I/O platform. Designed for demanding industrial environments, it supports 24 VDC discrete inputs, grouped optical isolation, Sequence of Events (SOE) recording, and pulse-catching functions for applications where missed status changes are unacceptable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DI650 |
| Part Number | 3BHT300025R1 |
| Product Type | Digital Input Module |
| Platform | ABB S600 I/O |
| Number of Input Channels | 32 |
| Input Voltage | 24 VDC |
| Isolation | Optically isolated in 4 groups |
| Signal Type | Digital Input |
| Special Functions | Sequence of Events (SOE), Pulse Catching |
| Installation | S600 I/O Rack |
| Typical Applications | Distributed process automation, safety monitoring, machine status acquisition |
| Compliance | RoHS exemption applicable for legacy Advant Master Process Control systems |
Field Application & The “Trench” Experience
A combined-cycle power plant reported sporadic turbine auxiliary alarms during startup. Field technicians confirmed that every limit switch operated correctly, yet the control room occasionally failed to register fast-changing contact transitions.
The maintenance team traced the issue to an aging digital input module that no longer reliably captured short-duration pulses. Replacing it with an ABB DI650 restored accurate event acquisition, allowing the plant to retain its SOE records for post-event analysis without modifying the control application.
Typical applications include:
- Gas turbine auxiliary equipment status monitoring
- Boiler burner management permissive inputs
- High-speed conveyor interlock monitoring
- Electrical substation breaker indication
- Emergency shutdown (ESD) status acquisition

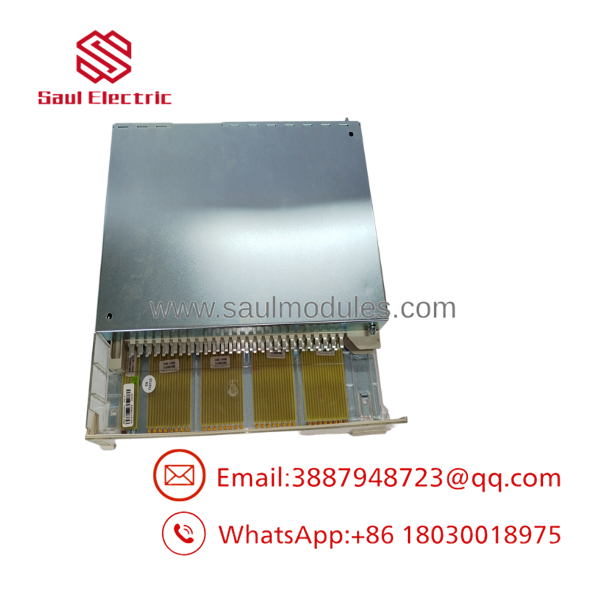

- DI650

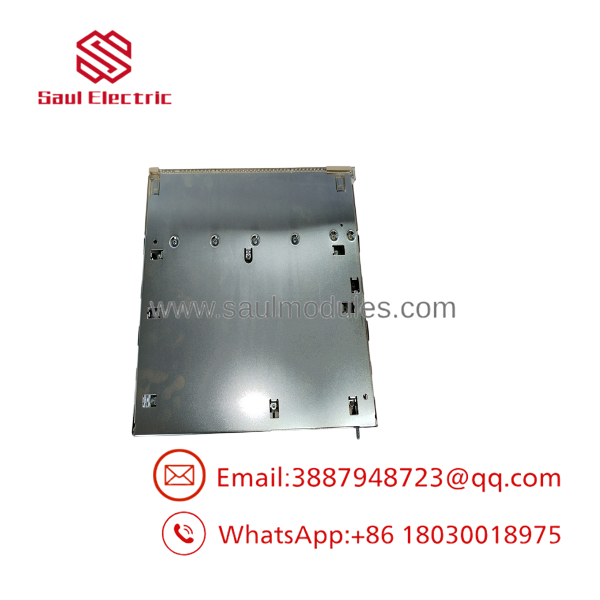

- DI650
Transparency SOP: QA & Testing
Every DI650 module undergoes a documented verification process before shipment.
- Verify the ABB part number and hardware revision.
- Inspect PCB assemblies, edge connectors, and terminal interfaces.
- Confirm optical isolation circuitry and LED indicators.
- Test all 32 digital input channels using calibrated 24 VDC signal sources.
- Verify SOE and pulse-catching functionality where compatible test equipment is available.
- Package the module in anti-static, impact-resistant industrial packaging.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every missed input is a module failure.
Fast mechanical contacts can bounce repeatedly. If debounce settings are incorrect, the control system may record multiple transitions or ignore legitimate signals.
⚠️ Verify the field power supply.
Many “failed” digital input modules are actually responding to undervoltage conditions caused by aging 24 VDC power supplies or excessive voltage drop on long cable runs.
PRO TIP:
If your process depends on millisecond event reconstruction after trips or shutdowns, verify that SOE is enabled in the controller configuration. Installing a alone does not automatically activate event logging.
⚠️ Inspect group wiring carefully.
Because the isolates inputs in four groups, incorrect common reference wiring can affect multiple channels simultaneously and resemble a module fault.
Dynamic FAQ
Q1. What is the primary function of the ABB ?
The acquires 32 discrete 24 VDC digital input signals from field devices and transfers their status to the ABB S600 I/O system for process control and monitoring. It also supports Sequence of Events (SOE) recording and pulse-catching applications.
Q2. How many input channels does the provide?
The module provides 32 digital input channels, organized into four optically isolated groups for improved electrical isolation and noise immunity.
Q3. Does the support high-speed event recording?
Yes. The supports Sequence of Events (SOE) functionality and pulse-catching capability, making it suitable for applications where short-duration signal transitions must be captured accurately.
Q4. Are New Surplus modules genuine ABB products?
Yes. New Surplus inventory consists of unused original ABB hardware stored under controlled warehouse conditions. Each module is inspected for identification, connector integrity, and basic functional operation before shipment.
Q5. Can the replace earlier S600 digital input modules?
In many S600 installations, the can replace compatible digital input modules. However, hardware compatibility, firmware revisions, and controller configuration should always be verified before installation.
Q6. Is warranty available?
Yes. Both New Surplus and professionally refurbished ABB modules are available with warranty coverage. Warranty duration depends on inventory condition and is confirmed with the quotation.
