ABB DO801 16-Channel 24 V Output

Description

Key Technical Specifications

• Product Type: 16-channel digital output module.
• Output Voltage: 10 to 30 V DC.
• Rated Output: 24 V DC.
• Maximum Continuous Output Current: 0.5 A per module output group as specified by ABB.
• Channel Count: 16 outputs.
• Isolation: One isolated group of 16 channels.
• Protection: Short-circuit, overvoltage, and overtemperature protection.
• Output Type: High-side current sourcing outputs.
• Diagnostics: Output status LEDs and module fault indication.
• Connection: Detachable process and power connectors.
• Series: ABB S800 I/O.

Product Introduction

The ABB DO801 is a 16-channel 24 V DC digital output module for the ABB S800 I/O system. It drives field devices such as relays, solenoids, and pilot loads, and it includes short-circuit, overtemperature, and overvoltage protection.

This module is used to preserve the installed S800 I/O architecture without changing cabinet wiring or controller logic. In real maintenance work, the value is simple: it keeps output channels available, but you still need to verify the exact field load, wiring style, and connector arrangement before installation.

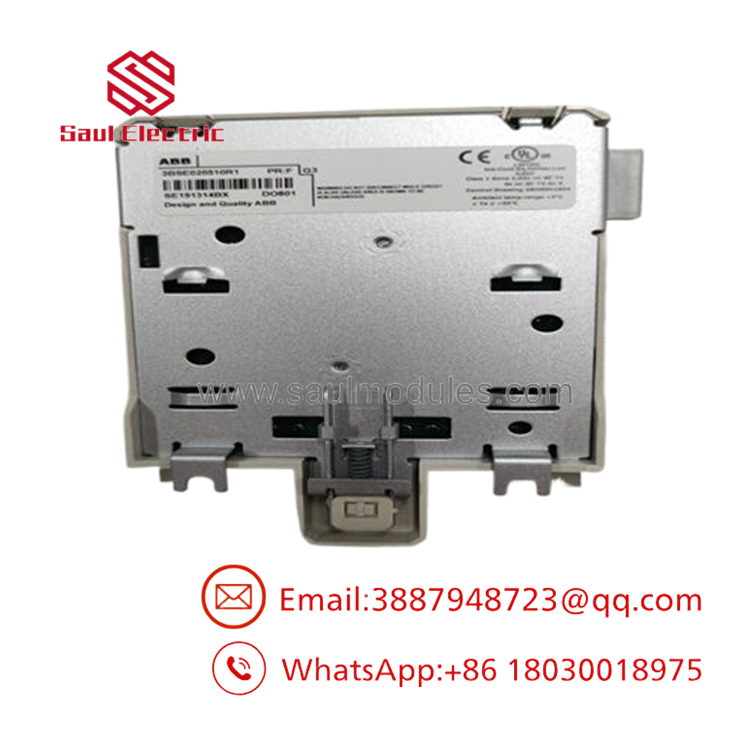

DO801

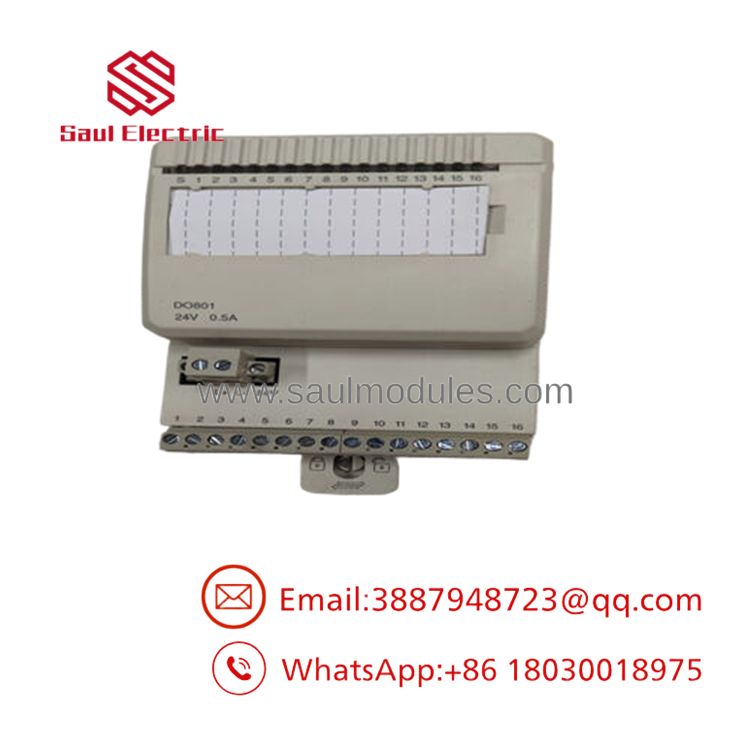

DO801

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the running configuration, document the output list, and photograph the wiring, connector orientation, and any channel labeling.
4. Verify the replacement part number exactly matches DO801 before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the front cover or access panel.
2. Label and disconnect the field wires carefully; do not force the terminal blocks.
3. Release the module from the mounting base or rack and pull it straight out.
4. Inspect the base, connectors, and wiring for bent pins, dust, or heat damage.
5. ⚠️ Note: Keep the old module until the new one is fully commissioned.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model number matches the removed unit.
2. Configuration clone is critical: copy any address, channel enable, or system-specific settings from the old module photo.
3. Seat the module fully in the rack or base until locked.
4. Reconnect the field wiring using the original labeling and routing.
5. Check the self-list: [] settings match, [] wiring secured, [] module seated, [] lock engaged.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to check for shorts and confirm field voltage is within the module’s rated range.
2. Power up the controller and I/O system first, not the field devices.
3. Confirm the output LEDs respond during a commanded test.
4. Verify the controller sees all 16 channels correctly and each output switches as expected.
5. Run a point-by-point functional test from the control system or maintenance workstation.
6. ⚠️ Troubleshooting Note: If an output does not energize, check field voltage, load current, wiring polarity, connector seating, and channel mapping before assuming module failure.

Frequently Asked Questions

Can this module be hot-swapped under power?
Usually no. Treat it as a powered-down replacement unless the exact ABB system documentation explicitly allows live removal. On S800 I/O hardware, pulling modules live is how you create avoidable downtime.

Is the DO801 obsolete?
Yes, it is commonly treated as a legacy or limited-stock spare. That is why most buyers look for new surplus or tested refurbished units.

What is the direct replacement if this module is unavailable?
The replacement has to match the S800 I/O architecture, 24 V sourcing output behavior, isolation grouping, and connector arrangement. Do not assume a similar ABB output module will work without checking the datasheet.

Will I lose my programming when I replace the module?
No, not if you are only swapping an output module. The controller logic should remain intact, but you still need to confirm channel mapping and hardware configuration after the swap.

Why is your price lower than ABB list price?
Because this part is often sourced from surplus channels or refurbished stock rather than fresh OEM production. That is normal for discontinued industrial hardware, but you should still verify condition and warranty.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the photo of the old wiring before removal. That small mistake can turn a quick swap into an afternoon of tracing outputs one by one.
