ABB DSDX452 Basic Digital I/O Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB DSDX452 is a basic digital I/O unit for the Advant S400 I/O platform, providing 20 digital inputs and 12 digital outputs for monitoring field devices and controlling industrial equipment within Advant Master and Advant OCS control systems. It is commonly installed in power generation, chemical processing, pulp and paper, and oil and gas facilities.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Because the Advant S400 platform is approaching the end of its service lifecycle, maintaining 1–2 spare modules as buffer stock and implementing a last-time-buy strategy reduce lead time variability, lower Total Cost of Ownership (TCO), and eliminate the operational risks associated with refurbished electronics.

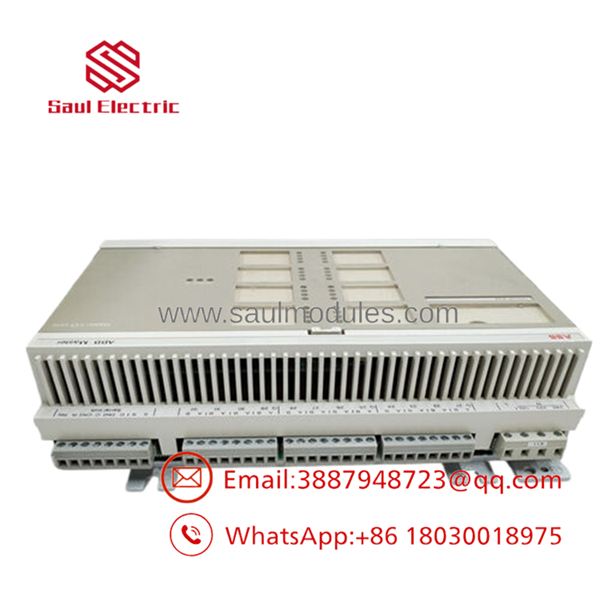

DSDX452

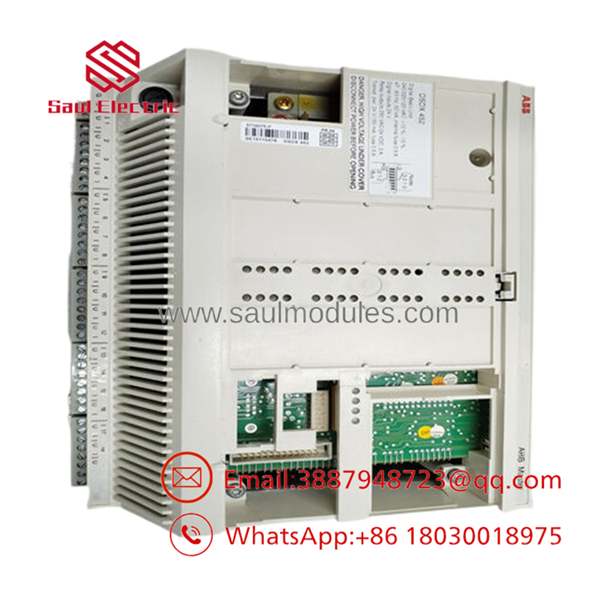

DSDX452

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Apply Lock-Out/Tag-Out (LOTO).
2. Isolate cabinet control power and field power.
3. Wear a grounded ESD wrist strap.
4. Photograph:
   • Field wiring
   • Connector positions
   • Rack location
   • I/O addressing
5. Record controller diagnostics and channel assignments before removal.

Stage 2: Removal

1. Disconnect field connectors carefully.
2. Release the module retaining mechanism.
3. Pull the module straight from the rack.
4. Inspect connectors and backplane contacts for damage or contamination.

Stage 3: Installation (Clone & Seat)

1. Verify the replacement part number matches DSDX452 (5716075-P).
2. Insert the module fully into the original slot.
3. Secure the retaining hardware.
4. Reconnect all field connectors according to the documented wiring.
5. Verify grounding and cable strain relief.

Stage 4: Power-On & Testing

1. Restore cabinet power.
2. Verify controller diagnostics indicate normal module operation.
3. Test all digital input channels.
4. Test every digital output under controlled conditions.
5. Confirm communication with the Advant controller before returning the system to production.

Firmware/Software Versions & Upgrade Notes

• The DSDX452 is primarily a hardware I/O unit and does not require routine firmware upgrades.
• Verify compatibility with the installed Advant Master or Advant OCS controller software before commissioning.
• Preserve the controller database and I/O configuration prior to replacement.
• Avoid upgrading controller software during emergency module replacement unless the complete system has been validated.
• Record rack location and channel assignments before removal.
• Maintain backups of engineering files and controller configuration to shorten recovery time after maintenance.

Frequently Asked Questions (FAQ)

Q1. Is this module genuinely new?

Yes. This is a New Original / New Surplus ABB module. It is not used, repaired, or refurbished. Every unit completes OEM serial verification, electrical inspection, functional testing, communication verification, and ESD-safe packaging before shipment.

Q2. Why is New Surplus priced below OEM factory supply but above refurbished modules?

New Surplus inventory comes from genuine OEM supply channels and preserves original hardware integrity. Although it generally costs more than refurbished equipment, it avoids hidden component aging, uncertain repair history, and the risk of premature failures that can result in costly production downtime.

Q3. Is the obsolete?

Yes. The is a legacy Advant S400 I/O module that has been discontinued by the manufacturer. Plants still operating this platform should maintain 1–2 spare units, review lifecycle status regularly, consolidate qualified suppliers, and execute a planned last-time-buy before remaining inventory becomes increasingly scarce.

Q4. Can the be hot-swapped?

Hot-swapping is generally not recommended. Always follow ABB maintenance procedures and de-energize the rack whenever required to prevent communication faults, output interruptions, or hardware damage.

Q5. Will replacing the module require application changes?

Normally, no. If the replacement module has the identical part number and the existing controller configuration is retained, the application program should continue operating normally. Verify all I/O assignments before returning the system to service.

Q6. What quality verification is completed before shipment?

Each New Surplus follows a documented SOP including:

• OEM serial number verification
• Inbound traceability inspection
• Visual inspection
• Digital input functional testing
• Digital output load testing
• Electrical insulation and continuity verification
• Communication verification
• QC inspector approval
• ESD-safe packaging
• Heavy-duty export shipping preparation

Q7. What inventory strategy provides the lowest Total Cost of Ownership (TCO)?

For facilities operating ABB Advant S400 or Advant Master systems, classify the as an A-Class critical spare. Maintain 1–2 modules as buffer stock, implement vendor consolidation, use cross-site inventory sharing where possible, and schedule a last-time-buy before end-of-life inventory is exhausted. This strategy reduces lead time variability, minimizes stock-out risk, controls carrying costs, and delivers a lower Total Cost of Ownership (TCO).
