ABB DSTA-121A57120001 Analog Input Board

Description

Key Technical Specifications

• Product Type: Analog input board.
• Channel Count: 16 differential analog input channels.
• Input Range: +/-10 V.
• Current Input Range: +/-20 mA.
• Accuracy: 0.025% as listed in source material.
• Input Type: Differential.
• System Note: Order information references installed controller license number for DSAI 130 hardware.
• Application: Industrial process measurement and control.
• Availability: Limited, legacy spare.
• Condition: New surplus or refurbished tested, depending on inventory.

Product Introduction

The ABB DSTA-121A57120001 is a 16-channel analog input board used in ABB Advant OCS-related control systems. Source material links it to the DSAI 130 hardware family and lists differential inputs with +/-10 V and +/-20 mA ranges.

This is the kind of spare you buy to keep an older ABB control rack running without redesigning the loop wiring. The key checks are the exact controller family, license or hardware variant, and input signal type before you swap it in.

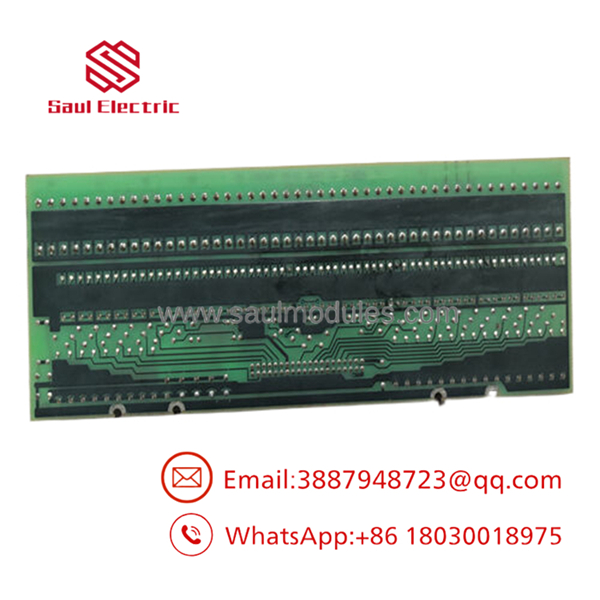

DSTA-121A57120001

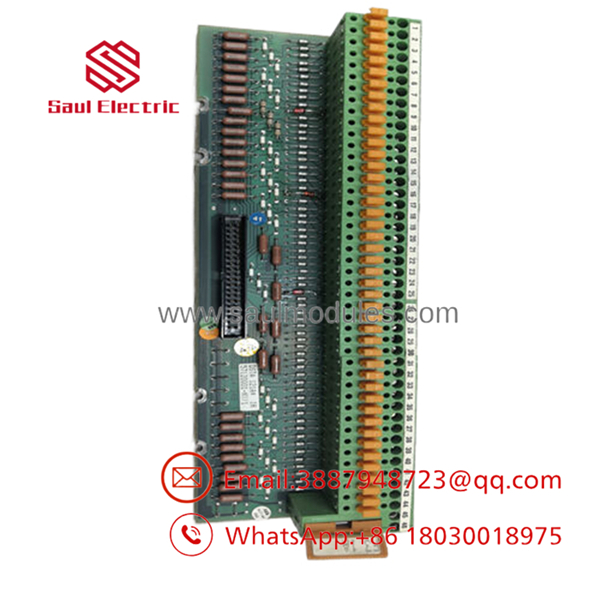

DSTA-121A57120001

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the control configuration, document all loop wiring, and photograph any jumpers, connector keys, or module labels.
4. Verify the replacement part is the exact DSTA-121A57120001 version before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the access cover or module guard.
2. Label and disconnect the analog field wiring carefully; do not force connectors.
3. Release the module from the rack or base and pull it straight out.
4. Inspect connectors, the backplane, and wiring for bent pins, dust, corrosion, or heat damage.
5. ⚠️ Note: Keep the old module until the replacement is fully commissioned.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model and system family match the removed unit.
2. Configuration clone is critical: copy the exact wiring layout, channel assignment, and any hardware settings from the old photos.
3. Seat the module fully until locked.
4. Reconnect all analog wiring using the original labels and routing.
5. Check the self-list: [] settings match, [] wiring secured, [] module seated, [] lock engaged.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to confirm there are no shorts and that the analog source is within range.
2. Power up the controller and I/O system first, not the field circuits.
3. Verify the module status indicators if present.
4. Confirm the controller recognizes all 16 channels and the readings track expected loop values.
5. Run a point-by-point functional test on each channel.
6. ⚠️ Troubleshooting Note: If a channel reads wrong or drifts, check input range, polarity, wiring, and connector seating before assuming module failure.

Frequently Asked Questions

Can this module be hot-swapped under power?
No. Treat it as a powered-down replacement unless the exact ABB documentation says otherwise. With older analog hardware, live removal is how you create extra downtime.

Is the DSTA-121A57120001 obsolete?
Yes, it is a legacy ABB spare with limited stock availability. In practice, that means surplus or refurbished units are the normal buying path.

What is the direct replacement if this module is unavailable?
There is no safe generic substitute. The replacement has to match the same ABB system family, signal ranges, and channel behavior. Verify that before buying.

Will I lose my programming when I replace the module?
Usually no, because this is an analog input board rather than the main controller. The real risk is channel mapping or signal-range mismatch, so back up the system first.

Why is your price lower than ABB list price?
Because this part is usually sourced from surplus channels or refurbished inventory instead of fresh OEM production. That is normal for discontinued industrial hardware, but condition and warranty still matter.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the wiring photo and channel list before removal. That one mistake can turn a quick swap into a long troubleshooting session.
