ABB FI830F PROFIBUS-DP Fieldbus Module

Description

Key Technical Specifications

• Product Type: Fieldbus module / communication module.
• ABB Type Designation: FI830F.
• Order Number: 3BDH000032R1.
• Protocol: PROFIBUS-DP V1.
• Compatible Controllers: PM 802F and PM 803F.
• Transmission Rate: Up to 12 Mbps.
• Bus Features: Electrical isolation and short-circuit protection.
• Diagnostics: LED status indication and bus diagnostics.
• Dimensions: 155 mm height, 28 mm width, 125 mm depth.
• Net Weight: 0.26 kg.
• Operating Temperature: -25 °C to +60 °C.
• Power Supply: 24 VDC.
• Application: AC 800F communication with PROFIBUS-DP slave devices.

Product Introduction

The ABB FI830F is a PROFIBUS-DP fieldbus module for the ABB AC 800F system. ABB identifies it as order number 3BDH000032R1 and specifies use with PM 802F or PM 803F controllers.

This module is used when a site needs reliable fieldbus communication to slave devices such as remote I/O, drives, or instrumentation on a PROFIBUS network. The key buying checks are controller compatibility, software version, and network topology, because this module will not save a bad system design.

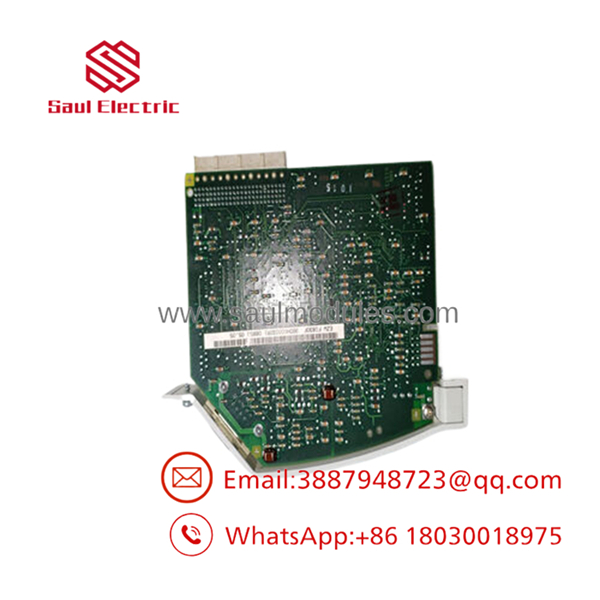

FI830F

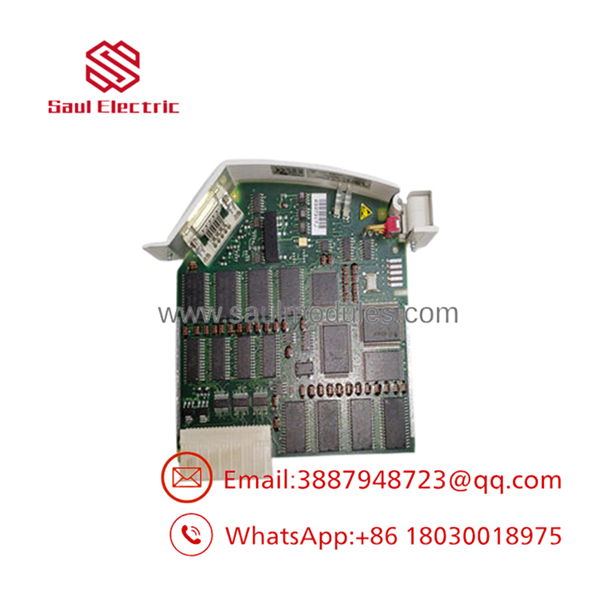

FI830F

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the controller configuration, record the PROFIBUS address, baud rate, and network layout, and photograph all cabling and jumper settings.
4. Verify the replacement part is the exact FI830F / 3BDH000032R1 version before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the access cover or communication cabinet panel.
2. Label and disconnect the PROFIBUS cabling carefully; do not force connectors.
3. Release the module from the mounting position and pull it straight out.
4. Inspect connectors, terminals, and the mounting area for dust, corrosion, bent pins, or heat damage.
5. ⚠️ Note: Keep the old module until the replacement link is fully stable.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model number matches the removed unit.
2. Configuration clone is critical: copy the exact PROFIBUS address, termination, and bus settings from the old photos.
3. Seat the module fully and lock it into place.
4. Reconnect the PROFIBUS cable using the original routing and connector orientation.
5. Check the self-list: [] settings match, [] wiring secured, [] module seated, [] bus termination correct.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to confirm there are no shorts and that the 24 VDC supply is correct.
2. Power up the controller cabinet first, not the field devices.
3. Verify the status LEDs and bus indicators.
4. Confirm the controller recognizes the FI830F and the network comes online at the correct address.
5. Run a bus diagnostic and confirm communication with all connected PROFIBUS slaves.
6. ⚠️ Troubleshooting Note: If the bus does not come online, check address settings, termination, cable integrity, and controller compatibility before assuming module failure.

Frequently Asked Questions

Can this module be hot-swapped under power?
No. Treat it as a powered-down replacement unless the exact ABB documentation says otherwise. On a PROFIBUS module, live removal is a fast way to drop the entire segment.

Is the obsolete?
It is a legacy ABB communication module and stock is often limited. In practice, that means new surplus or refurbished tested units are common.

What is the direct replacement if this module is unavailable?
The replacement has to match the same AC 800F platform, controller pairing, and PROFIBUS-DP requirements. Verify software version and network compatibility before you order.

Will I lose my programming when I replace the module?
Usually no, because the fieldbus module itself does not hold the main control logic. The risk is bus configuration mismatch, so back up the controller setup first.

Why is your price lower than ABB list price?
Because this part is usually sourced from surplus channels or refurbished inventory instead of fresh OEM production. That is normal for discontinued industrial hardware, but condition and warranty still matter.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the PROFIBUS address and termination photo before removal. That one mistake can turn a quick swap into a long bus troubleshooting session.
