ABB HIES308461R0012 2.5 Ω Water-Cooled Resistor

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB HIES308461R0012 is a 2.5 Ω water-cooled resistor engineered for ABB medium-voltage drive systems. It absorbs braking energy and suppresses switching transients, helping protect power electronic assemblies and maintain stable operation in demanding industrial environments. It is commonly used as a spare part for ACS1000, ACS5000, and ACS6000 drive platforms.

Purchasing this component as New Surplus provides genuine OEM hardware while avoiding the uncertainty associated with refurbished parts. Because medium-voltage drive components often have extended lead time variability, maintaining buffer stock, implementing vendor consolidation, and planning last-time-buy purchases can reduce Total Cost of Ownership (TCO) and prevent costly production downtime.

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO).
2. Verify complete isolation of all medium-voltage and auxiliary power sources.
3. Wear appropriate PPE and a grounded ESD wrist strap.
4. Photograph:
   • Cooling hose routing
   • Electrical terminal connections
   • Mounting orientation
5. Drain or isolate the cooling circuit if required.

Stage 2 – Removal

1. Verify zero electrical potential.
2. Disconnect inlet and outlet cooling lines.
3. Remove electrical connections after labeling each terminal.
4. Remove mounting hardware carefully.
5. Inspect cooling fittings, seals, and cable terminals for wear or corrosion.

Stage 3 – Installation (Clone & Install)

1. Verify the replacement part number is HIES308461R0012.
2. Install the resistor using the original mounting hardware.
3. Reconnect water lines and inspect all seals.
4. Restore electrical connections according to the original documentation.
5. Pressure-test the cooling circuit before energizing the drive.

Stage 4 – Power-On & Testing

1. Restore cooling water flow and confirm there are no leaks.
2. Energize auxiliary systems before starting the drive.
3. Verify normal drive diagnostics.
4. Confirm resistor temperature remains within operating limits.
5. Perform a controlled braking test to verify proper energy dissipation.

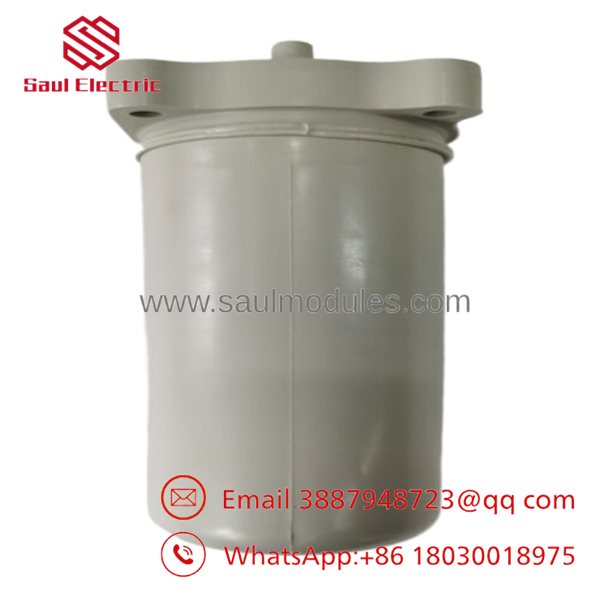

HIES308461R0012

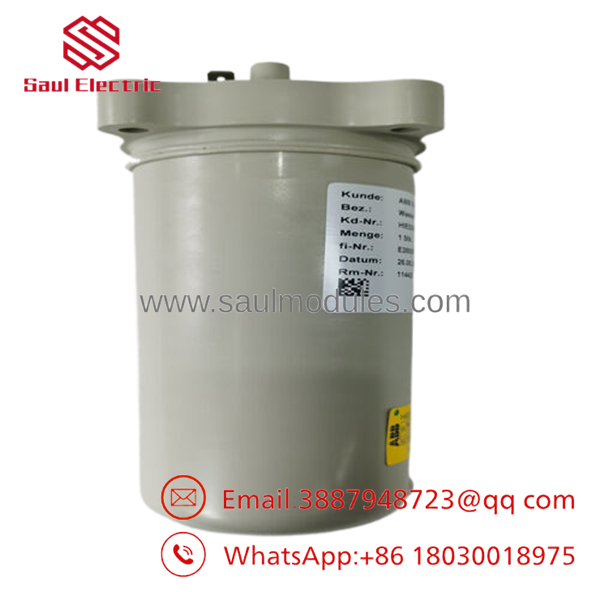

HIES308461R0012

Firmware/Software Versions & Upgrade Notes

• This resistor contains no programmable firmware.
• Verify compatibility with the installed ABB ACS1000, ACS5000, or ACS6000 drive configuration before replacement.
• Inspect associated snubber circuits and braking assemblies during replacement.
• Do not modify resistor values or substitute different resistance ratings without ABB engineering approval.
• After installation, verify cooling flow, insulation condition, and drive diagnostics before returning the equipment to service.

Frequently Asked Questions (FAQ)

Q1. Is this resistor genuinely new?

Yes. This product is supplied as New Original / New Surplus. It is not used, not refurbished, and not repaired. Every unit undergoes quality verification before shipment.

Q2. Why is New Surplus priced below OEM list price?

New Surplus inventory comes from excess project inventory and authorized surplus channels. It delivers genuine ABB components while avoiding the reliability risks commonly associated with refurbished power components.

Q3. Which ABB drive systems use this resistor?

The is used as a spare component in several ABB medium-voltage drive families, including ACS1000, ACS5000, and ACS6000, where it serves braking and transient suppression functions.

Q4. Can the resistor be replaced while the drive remains energized?

No. The drive must be completely isolated from all power sources, and the cooling system should be secured before replacing the resistor.

Q5. Does this component require configuration after installation?

No software configuration is required. However, electrical connections, cooling line integrity, insulation resistance, and drive diagnostics should all be verified before commissioning.

Q6. What quality inspections are completed before shipment?

Each New Surplus resistor undergoes:

• OEM part number verification
• Serial number traceability
• Visual inspection
• Terminal and connection inspection
• Cooling connection inspection
• ESD-safe packaging
• Final QC approval documentation

Q7. What inventory strategy is recommended?

For facilities operating ABB medium-voltage drives:

• Maintain 1–2 resistors as buffer stock for critical assets.
• Use vendor consolidation to simplify procurement.
• Share inventory across multiple plants where practical.
• Plan a last-time-buy if lifecycle notices indicate declining availability, reducing lead time variability and lowering long-term Total Cost of Ownership (TCO).
