ABB REF615 HBFFAEAGNBC6BNA11G Feeder Protection Relay

Description

Hardware Suffix & Configuration Breakdown

In the ABB Relion series, the long type code explicitly defines the internal hardware configuration, communication options, and functional software licenses. The breakdown for HBFFAEAGNBC6BNA11G is outlined below:

Key Technical Specifications

Product Introduction

The ABB REF615 (specifically type code HBFFAEAGNBC6BNA11G) is a dedicated feeder protection and control relay belonging to the specialized ABB Relion 615 family. Configured under Standard Configuration F, this numerical relay provides directional and non-directional overcurrent and earth-fault protection, three-phase voltage measurements, sequence parameters, and frequency tracking. It is primarily deployed in medium-voltage sub-stations, industrial networks, and grid distribution systems to protect outgoing feeders, incoming bay modules, and segmented bus ties.

This specific variant features a balanced 4 CT + 4 VT hardware allocation, enabling advanced directional protection algorithms crucial for compensated, isolated, or network-looped distribution systems where simple non-directional overcurrent tracking cannot isolate a localized fault. Outfitted with native IEC 61850 communication profiles, the unit supports horizontal GOOSE messaging directly over the ethernet bus. This configuration permits fast, microsecond-range interlocking and automated bus-bar protection strategies without requiring hardwired inter-relay cabling between neighboring breakers.

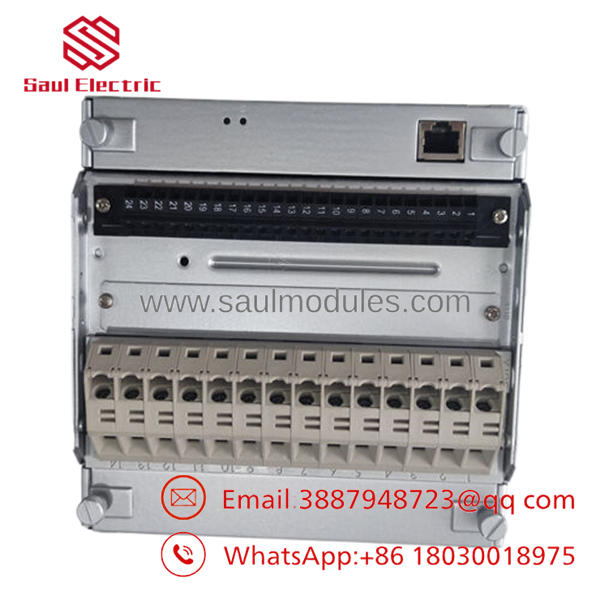

REF615 HBFFAEAGNBC6BNA11G

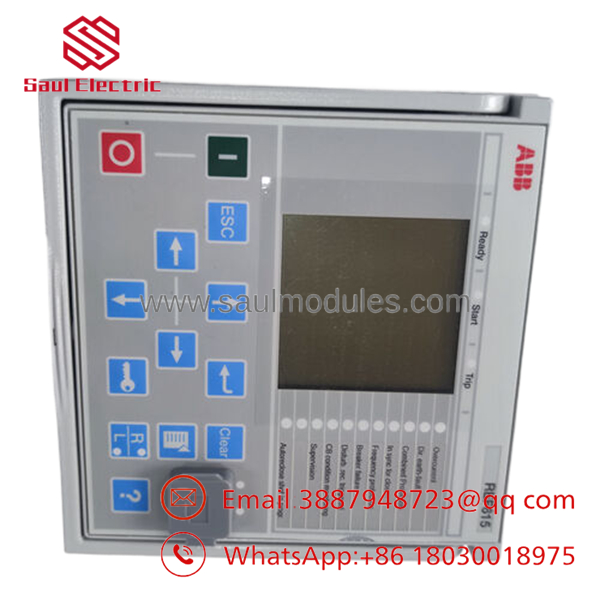

REF615 HBFFAEAGNBC6BNA11G

Comprehensive SOP Quality Control & Testing

To eliminate field commissioning complications and verify hardware baseline conformity, this REF615 terminal undergoes a standardized multi-step diagnostic review before shipping.

1. Inbound Inspection & Traceability

• Type Code Decode: The literal text string HBFFAEAGNBC6BNA11G is matched against the casing laser print and the embedded microcontroller electronic serial ID to ensure it has not been modified.
• Chassis Physical Integrity: We inspect the draw-out unit mechanism, securing levers, and connection fingers for structural warping or contact surface wear.
• Rear Connector Audit: The spring-loaded CT shorting bars inside the terminal housing are inspected to ensure they function safely during module removal.

2. Live Functional Testing

• Test Environment: The relay is inserted into a standardized configuration rack and linked via an Ethernet switch to an engineering workstation running ABB PCM600 Configuration Software.
• Boot Profile Verification: The device is energized using an auxiliary DC source. Technicians verify that the self-supervision watchdog system initializes cleanly without throwing an internal fault error.
• Analog Injection Scaling Calibration: Using a computerized multi-phase relay test set, we inject low-level current and voltage signals into the rear terminals, monitoring the PCM600 online tool to confirm measurement accuracy across all 4 CT and 4 VT channels.
• GOOSE and Protocol Traffic Validation: The rear RJ45 port is loaded into a packet sniffer tool to verify proper network negotiation and data transmission across IEC 61850 parameters.
• Report Logging: Measurement logs, serial indices, and communication logs are saved to an official QC test certificate.

3. Electrical Parameter Testing

• Dielectric Isolation Verification: A 500 V DC isolation test is conducted between independent binary circuits, analog input groups, and the main chassis grounding pad using a Fluke 1507 megohmmeter to ensure isolation barriers measure >10 MΩ.
• Chassis Ground Resistance: Ground track paths are audited from the main backplane ground lug to the outer door casing to verify values are under 0.1 Ω.

4. Firmware & Configuration Verification

• Software Version Alignments: The baseline firmware generation (e.g., Version 4.0 or 5.0 profiles) is documented. Standard configuration parameters for Configuration F are reloaded to factory baselines unless custom customer configuration files are provided.
• Internal Battery Assessment: The internal capacitor/battery health metric is checked to guarantee time-stamped disturbance records remain preserved through localized system power failures.

5. Final QC & ESD Packaging

• Approval Marking: The checking technician applies a unique tracking label over the frame seam.
• ESD and Physical Armor Packing: The relay assembly is placed inside an anti-static ESD bag, surrounded by thick polyethylene foam end-caps, and packed into a double-wall corrugated box engineered for global transport.

Technical Pitfall & Replacement Survival Guide

Replacing a numerical protection relay on a live medium-voltage switchgear bay introduces several operational challenges. Review these five common field issues to prevent component damage or accidental breaker operations.

1. Drawing Out the Internal Relay Core Under Load

• ❗ The Risk: The Relion 615 series features a convenient draw-out design that allows the internal electronics chassis to be extracted while leaving the outer casing and wiring intact. However, if the current transformer (CT) secondary wiring circuit fails to short-circuit correctly inside the case when the unit is pulled, it will cause an open CT loop. This generates dangerous high-voltage spikes, which can destroy the transformer insulation and create a safety hazard.
• 🛠| Mitigation: Never pull the relay core out while the primary circuit breaker is closed and current is flowing through the feeder. Isolate the primary feeder or manually short-circuit the external CT test block prior to extracting the internal module.

2. Standard Configuration Application Matching Error

• ❗ The Risk: Ordering a generic REF615 without matching the exact configuration letter code (e.g., swapping a Configuration F unit with a Configuration E unit) alters the physical input/output card layout. A Configuration E configuration cannot process the directional voltage signals needed for a Configuration F system, preventing the import of your site’s application file and leaving the feeder unprotected.
• 🛠| Mitigation: Before mounting the replacement, compare the type code string letter by letter. Ensure the third position reads F, confirming that the internal multi-channel analog cards match your existing layout exactly.

3. Missing Local PCM600 Parameter File Backups

• ❗ The Risk: A new surplus relay arrives with generic factory setting baselines. Simply plugging the unit into the rack without uploading your specific protection parameters (such as trip curves, pick-up currents, and time-multiplier delays) will cause the relay to trip using default settings, resulting in nuisance trips or delayed fault clearing.
• 🛠| Mitigation: Connect your laptop to the front RJ45 service port of the old relay using the PCM600 tool before removing it. Read and save the .pcmp parameter file. Once the new hardware is installed, write this specific file to the new relay to restore your plant’s protection parameters.

4. Unassigned Binary Output Protective Tripping Logic

• ❗ The Risk: The physical binary output contacts on the rear terminal block must be explicitly mapped to internal logic gates using the Application Configuration tool in PCM600. If you upload the parameters but skip mapping the digital output matrix, the relay will detect electrical faults internally but will fail to close the physical contact that signals the breaker’s trip coil to open.
• 🛠| Mitigation: Run a dry-run trip test after configuration downloading. Use the manual forcing tool inside to trigger output contact X100-PO1 (or your designated trip channel) and confirm that the external trip coil fires as intended before energizing the primary circuit.

5. Incorrect External Phase Rotation Wiring Alignment

• ❗ The Risk: Directional overcurrent protection relies on calculating the precise phase angle between current and voltage vectors. If the phase voltage transformer lines (L_1, L_2, L_3) are wired out of sequence during a terminal block update, the relay will calculate an incorrect phase angle, causing it to misinterpret a forward fault as a reverse fault and fail to operate when needed.
• 🛠| Mitigation: Clearly label each analog secondary wire before disconnecting the old unit. Use a phase rotation meter to verify that the secondary current and voltage transformer lines follow the correct A-B-C sequence before finalizing commissioning.

Frequently Asked Questions (FAQ)

Can I program the over the front RJ45 port without auxiliary power connected?

No. The front port is an isolated Ethernet service connection interface that communicates with the main processor board. The internal cards require 24–240 V DC or 48–240 V AC power applied to rear terminals X100-1 and X100-2 before the processor can boot up and establish a connection with your software tool.

What is the specific purpose of “Standard Configuration F”?

Standard Configuration F is tailored for distribution systems requiring comprehensive directional overcurrent and directional earth-fault protection. By monitoring both current vectors and voltage inputs from open-delta or star-connected voltage transformers, Configuration F can determine whether an electrical fault is located upstream in the bus zone or downstream on the protected feeder line. This capability is essential for selective tripping in meshed or ring networks.

Does this specific model variation support fiber-optic Ethernet connections?

No, not directly on this hardware variant. The character B in position 14 of the type code HBFFAEAGNBC6BNA11G indicates that this unit is configured with a standard 100Base-TX copper network interface connection on the rear panel. If your substation automation network uses fiber-optic links (such as 100Base-FX LC connectors), you will need to utilize an external media converter or select a different variant within the Relion 615 configuration matrix.

Why is the internal current transformer selection referred to as programmable?

The series simplifies spare parts management by using universal, tapped internal current transformers. The physical hardware terminal blocks accommodate both standard 1 A and 5 A secondary current transformer connections. You do not need to replace physical component cards to change CT ratios; you simply adjust the primary and secondary current settings inside the software configuration parameters via the front HMI or the engineering software.

How do you confirm that this unit is a “New Surplus” asset rather than a pulled repair?

Our inventory is sourced directly from excess stock holdings, canceled engineering projects, and distributor allocations. Every unit undergoes a visual inspection for mechanical screw marks, terminal oxidation, and chassis scratching typical of used components. These units remain stored within original factory packaging configurations and receive full operational validation on our test benches to confirm their unissued condition before shipment.
