Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SC510 |
| Product ID | 3BSE003832R1 |
| Product Type | Submodule Carrier (Without CPU) |
| System Platform | ABB Advant Controller 450 |
| Function | Carrier for communication and expansion submodules |
| CPU Included | No |
| Installation | Rack-mounted |
| Product Dimensions | 486 × 22.5 × 288 mm |
| Net Weight | 0.67 kg |
| Country of Origin | Sweden |
| HS Code | 85389091 |
ABB identifies 3BSE003832R1 as an SC510 Submodule Carrier without CPU, intended for use within the Advant Controller platform to accommodate expansion and communication submodules.
Product Introduction
The ABB SC510 (3BSE003832R1) is a submodule carrier used in the ABB Advant Controller 450 automation platform. Unlike a processor module, the SC510 contains no CPU. Its purpose is to provide the mechanical mounting, backplane connection, and electrical interface required for communication and expansion submodules within the controller rack.
The SC510 is commonly found in legacy Advant DCS installations across power generation, petrochemical, pulp and paper, and heavy industrial facilities. It allows system expansion while maintaining the modular architecture of the Advant Controller family. Because the platform has entered the Classic lifecycle phase, many users purchase New Surplus spare units to maintain existing installations.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Expansion modules not detected | Backplane connection problem | ✅ High | Inspect connector seating and backplane contacts | Reseat carrier and inspect connectors |
| Communication module offline | Faulty installed submodule | ❌ Low | Test module in another carrier | Verify module before replacing SC510 |
| Controller startup failure | CPU module issue | ❌ Low | Check CPU diagnostics and LEDs | CPU is usually the source of the fault |
| Intermittent communication | Oxidized connector contacts | ⚠️ Medium | Inspect edge connectors and clean contacts | Replace carrier only if connector damage exists |
| Rack reports hardware fault | Damaged carrier backplane | ✅ High | Perform visual inspection for bent pins or PCB damage | Replace carrier if backplane damage is confirmed |
| Expansion module loose | Mechanical mounting damage | ✅ High | Inspect mounting rails and locking clips | Replace damaged carrier assembly |
| Random communication errors | Poor rack grounding | ❌ Low | Verify cabinet grounding resistance | Correct grounding before replacing hardware |
Technical Note
The is a passive carrier without processing electronics. In practice, failures are uncommon. Most service issues originate from defective communication modules, CPU modules, oxidized backplane connectors, or cabinet wiring. Replace the only after eliminating these more common causes. Photographs of the backplane connectors and installed modules are extremely helpful during troubleshooting.

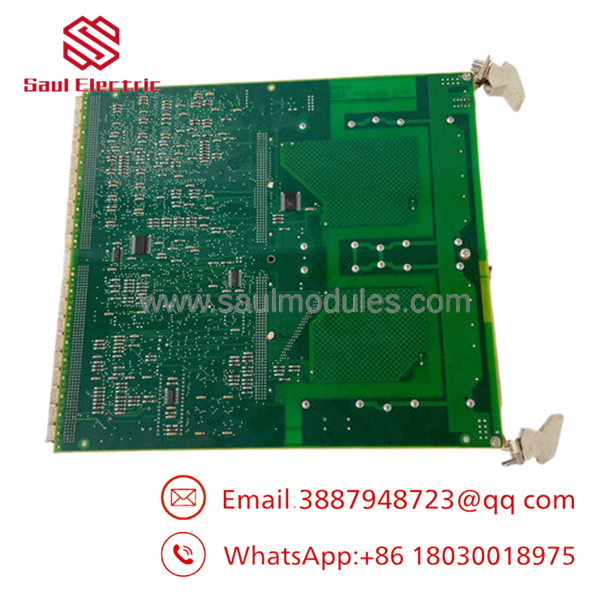

- 3BSE003832R1

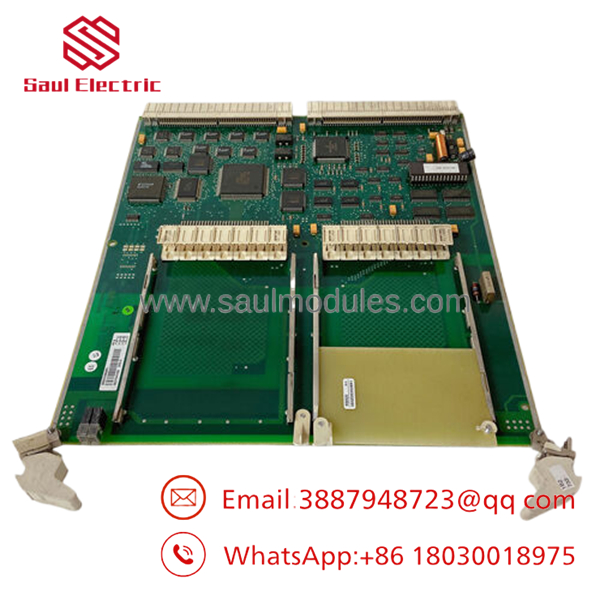

- 3BSE003832R1
Frequently Asked Questions (FAQ)
Q1. Is the a CPU module?
No. The is a Submodule Carrier without CPU. It provides the physical and electrical interface for expansion modules but performs no control or processing functions itself.
Q2. Which ABB systems use the ?
The is designed for ABB Advant Controller 450 systems and other compatible Advant platform configurations that require a submodule carrier for expansion hardware. Compatibility should always be verified using the controller configuration and installed submodules.
Q3. Is this product still manufactured?
No. The Advant Controller 450 platform is in ABB’s Classic lifecycle phase. Original production has ended, so replacement units are typically supplied from New Surplus inventory or authorized refurbishment programs.
Q4. Can I replace the while the system is energized?
No. Shut down the controller and isolate power before removing the carrier. Although the is passive, removing it under power can interrupt communication with installed submodules and may damage backplane connectors.
Q5. Why is New Surplus inventory more affordable than factory procurement?
New Surplus units typically originate from unused project inventory, canceled modernization projects, or warehouse spare stock. They have never been commissioned in the field but are sold through the secondary industrial automation market, making them more economical than sourcing legacy OEM inventory.
Q6. What should I verify before replacing the carrier?
Before replacement:
- Photograph every installed module.
- Label each expansion module before removal.
- Inspect all backplane connectors for bent or oxidized contacts.
- Verify the CPU module is functioning correctly.
- Check rack grounding and cabinet power.
- Handle the carrier using proper ESD protection.
One misplaced communication module can create multiple system alarms. Taking clear photos before disassembly saves considerable commissioning time.
Q7. How is each inspected before shipment?
A professional inspection process typically includes:
- ABB part number and serial number verification
- Visual inspection for PCB damage, corrosion, and connector wear
- Backplane connector continuity inspection
- Mechanical alignment and mounting inspection
- Rack fit verification
- Cleaning of connector surfaces
- ESD-safe anti-static packaging
- Final QC inspection before shipment
Inspection reports and photographs should be available upon request for New Original (New Surplus) inventory.
