Description
Key Technical Specifications
- Model Number: SD831
- ABB Article Number: 3BSC610064R1
- Product Type: Switch-mode power supply unit
- Input Voltage: 100–240 V AC / 110–300 V DC
- Output Voltage: 24 V DC
- Rated Output Current: 3 A
- Rated Output Power: 72 W
- Efficiency: 88–89.8%
- Maximum Output Current: 3.3 A
- Operating Temperature: Maximum ambient 55 °C
- Protection Functions: Over-current protection, over-voltage protection
- Mounting: DIN rail mounting
- Protection Rating: IP20
- Dimensions: 32 mm W × 102 mm D × 124 mm H
- Weight: Approx. 430 g
- Standards: IEC 61131-2, UL 508, EN 50178
Product Introduction
ABB SD831 (3BSC610064R1) is a 24 V DC industrial power supply module designed for ABB control and I/O systems. It converts 100–240 V AC or 110–300 V DC input into regulated 24 V DC power for automation cabinets, controllers, and field devices.
The SD831 uses DIN rail mounting and supports both standard and redundant power architectures when combined with ABB voting modules. Before installation, confirm load current, wiring, and replacement compatibility with the existing ABB cabinet design.

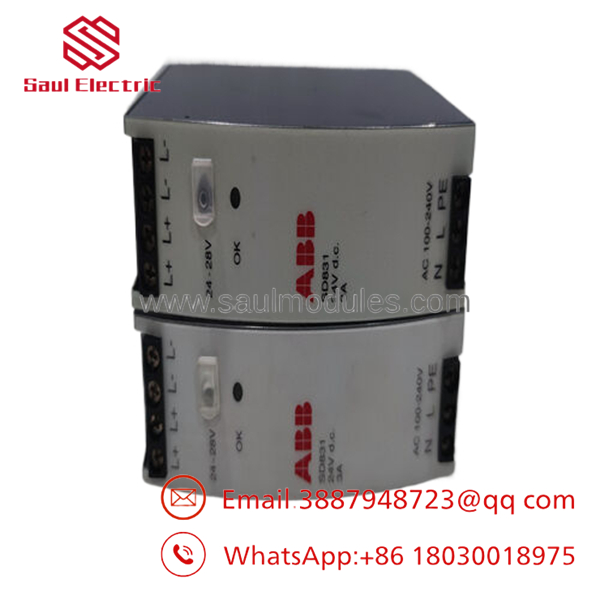

- SD831

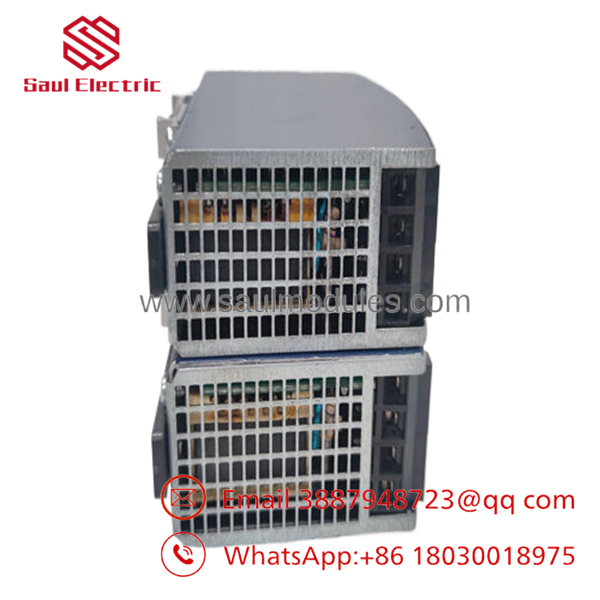

- SD831
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No 24 V DC output | Input power missing or PSU failure | ✅ High | Measure AC/DC input terminals with multimeter | Confirm upstream breaker and input wiring before replacing |
| PLC or I/O modules randomly restart | Output voltage drop or overload | ✅ High | Measure 24 V DC during equipment startup load | Check total cabinet current consumption |
| Output voltage below 24 V DC | Power supply overload or aging unit | ✅ High | Measure output terminals under normal load | Reduce load or replace SD831 |
| Power LED off | No input voltage or internal fault | ✅ High | Check input voltage and indicator status | Verify supply wiring and module condition |
| New trips protection | Short circuit downstream | ⚠️ Medium | Disconnect loads and test output recovery | Inspect connected devices before replacement |
| System failure continues after PSU replacement | External device fault | ❌ Low | Check controller and I/O diagnostics | Do not replace additional modules without test data |
❗ Technical support note: If the issue remains unclear, provide photos of the nameplate, cabinet wiring, measured voltage values, and diagnostic information.
Frequently Asked Questions (FAQ)
Q: What is ABB used for?
A: ABB is a 24 V DC switch-mode power supply used in ABB automation systems to provide control power for PLC, I/O, and industrial electronic equipment.
Q: Is ABB compatible with ABB System 800xA systems?
A: is listed within ABB power supply product lines used with control and I/O systems. Confirm the exact cabinet design and power requirements before replacement.
Q: Can I replace with another 24 V DC power supply?
A: Technically possible in some applications, but not recommended without checking output current, protection functions, mounting, wiring, and system requirements. Industrial control cabinets often depend on specific power characteristics.
Q: Does ABB require programming after replacement?
A: No programming is normally required because it is a power supply module. After installation, verify the 24 V DC output and confirm connected controllers restart correctly.
Q: Why is an New Surplus unit cheaper than factory supply?
A: Industrial spare parts often come from unused project inventory or maintenance stock. The important checks are traceability, storage condition, and functional testing records.
Q: Is hot-swappable?
A: Do not assume it is. Remove power before replacement. Working on energized power supplies can damage equipment and create electrical hazards.
Q: What should I verify before ordering ABB ?
A: Check the full part number ( / 3BSC610064R1), input voltage, output current requirement, cabinet mounting space, and whether the system uses redundant power architecture.
