Description
Key Technical Specifications
- Manufacturer: ABB
- Model: SDCS-PIN-46-COAT
- Ordering Number: 3BSE004939R1003
- Product Type: Pulse transformer board
- Series: ABB DCS800 drive system
- Function: Isolates and transmits gate/control pulses
- Version: COAT protective-coated variant
- Compatibility: DCS800 DC drive systems
- Protection: Conformal coating for moisture and dust resistance
- Condition: New original / new surplus
Product Introduction
ABB SDCS-PIN-46-COAT is a pulse transformer board used in ABB DCS800 DC drive systems. It provides signal isolation and pulse transmission between control electronics and power semiconductors, which is a core function in high-power drive cabinets.
The COAT version adds protective coating for harsher cabinet environments. In replacement work, the exact board revision matters because the DCS800 hardware family uses multiple related PIN boards, and the wrong match can leave the drive dead on startup.
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation
- Notify operations and create downtime. Verify the drive is in a safe state, apply lockout/tagout, and wait at least 5 minutes for capacitor discharge.
- Gather an ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
- Back up drive parameters, document all connector locations, and photograph the old board, jumpers, and cable routing.
- Confirm the exact part number and COAT version before opening the replacement package.
Stage 2: Removing the Old Module
- Remove the cabinet cover or access panel.
- Label every wire before disconnecting it. Do not force ribbon cables or headers.
- Release the mounting hardware and pull the board straight out to avoid connector damage.
- Inspect the slot, backplane, and connectors for dust, bent pins, corrosion, or heat damage.
- Keep the old board until the replacement passes commissioning.
Stage 3: Installing the New Module
- Put on the ESD strap and verify the exact model match.
- Copy all jumper settings and connector positions from the reference photos.
- Seat the board fully and secure the mounting hardware.
- Reconnect all wiring with the correct torque and verify shield grounding.
- Check off the install list: [] Board match, [] Wiring secure, [] Fasteners locked.
Stage 4: Power-On & Testing
- Use a multimeter to check for shorts on the cabinet supply before energizing.
- Power up the control cabinet first, not the motor or load side.
- Verify status indicators, board recognition, and any alarm messages.
- Confirm drive communication and watch for fault codes during startup.
- Run a dry test before returning the drive to service.
- If the board does not initialize, check seating, jumper settings, and revision match first.

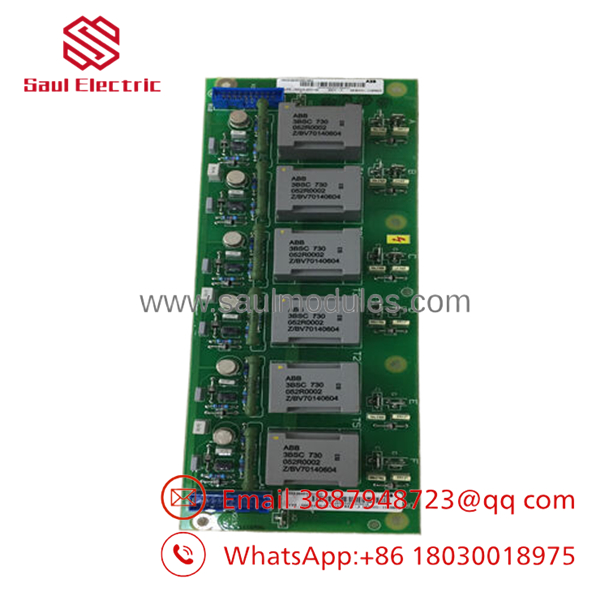

- SDCS-PIN-46-COAT

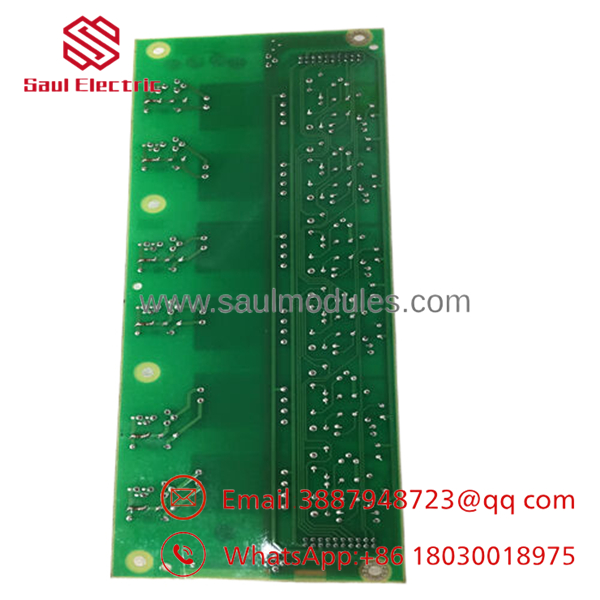

- SDCS-PIN-46-COAT
Frequently Asked Questions
Can I hot-swap the SDCS-PIN-46-COAT?
No, not in normal field practice. This is a drive interface board, and live removal can damage the cabinet or drop the drive out.
Is this an obsolete part?
Yes, it is usually treated as a legacy ABB DCS800 part. Stock is limited, so exact-number matching is important.
What does the board do?
It is the pulse transformer interface board for the DCS800 drive system. Its job is to isolate and transmit control pulses to the power stage.
Is this the same as 3BSE004939R1003?
Yes, that is the ordering number associated with SDCS-PIN-46-COAT. The model and ordering number should match what is installed.
Will I lose my drive parameters when I replace it?
Usually no, but you should still back up the drive before replacement. A board swap can expose other issues, and it is not the time to rely on memory.
What condition is it usually sold in?
Commercial stock is typically New Original or New Surplus. If it is refurbished, ask for test records and return terms.
Why is the secondary-market price lower than ABB list price?
Because surplus inventory usually trades below OEM pricing. That lower price only makes sense if you verify revision, condition, and warranty before buying.
