Description
Key Technical Specifications
- Model Number: SPCJ4D34-AA
- Manufacturer: ABB
- Product Type: Digital Motor Protection Relay Module
- Relay Family: ABB SPAM / SPCJ 4D34 Protection Module
- Associated System: SPAM 150 C motor protection relay assembly
- Current Input: 1 A / 5 A CT input range
- Protection Functions: Three-phase overcurrent, earth fault, phase unbalance, motor protection logic
- Protection Characteristics: Definite time and inverse time overcurrent functions (application dependent)
- Auxiliary Supply: 80–265 V AC/DC typical for SPAM relay assemblies
- Diagnostics: Self-supervision and internal fault monitoring
- Communication: SPACOM system interface support depending on relay configuration
- Mounting: Modular plug-in relay module installation
- Operating Temperature: Approx. −20 °C to +55 °C (verify exact relay assembly specification)
Product Introduction
ABB SPCJ4D34-AA is a modular protection relay module used in ABB SPAM 150 C motor protection systems. It processes current signals from CT inputs and provides protection functions including overcurrent, earth-fault detection, phase imbalance monitoring, and motor fault supervision.
This module is used in industrial motor and power distribution applications where selective protection and fault isolation are required. Before replacement, verify CT ratio settings, relay configuration, module revision, and SPAM system compatibility.

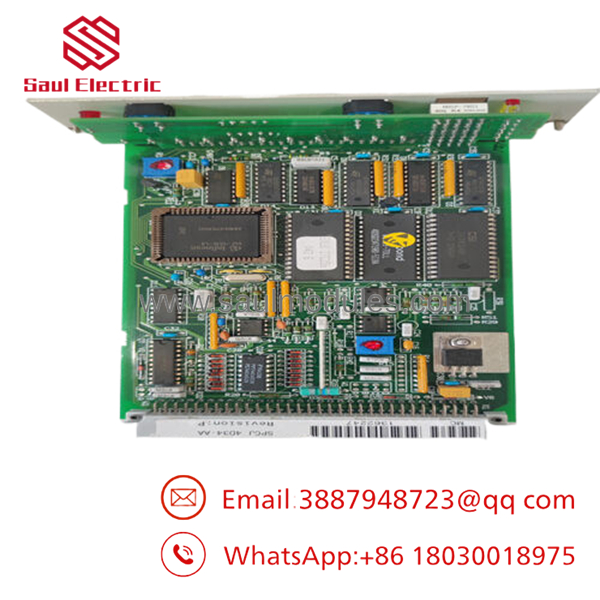

- SPCJ4D34-AA

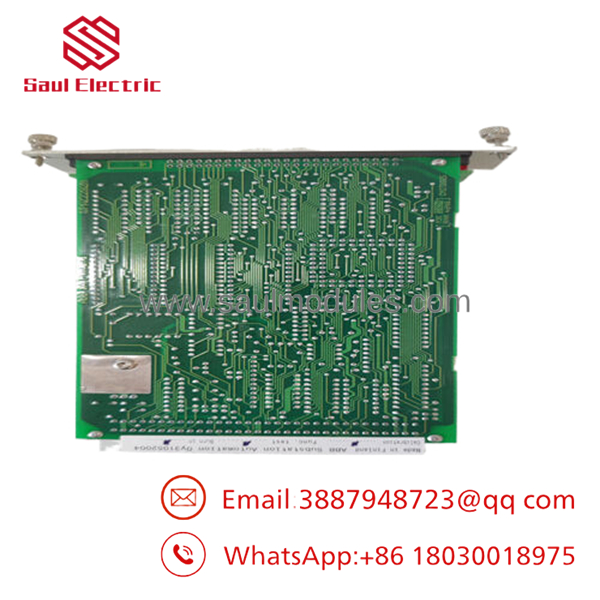

- SPCJ4D34-AA
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Motor trips immediately after start | Incorrect protection setting or CT mismatch | ⚠️ Medium | Check relay settings and compare CT ratio with motor data | Correct parameters before replacing module |
| No trip signal during overcurrent fault | SPCJ4D34-AA module fault | ✅ High | Inject test current and verify relay response | Replace module after confirming test failure |
| Earth fault protection unavailable | CT wiring or module input fault | ⚠️ Medium | Check residual CT wiring and input terminals | Verify external wiring before module replacement |
| Relay shows internal fault alarm | Hardware diagnostic failure | ✅ High | Review relay self-monitoring status | Replace module if internal fault remains |
| Motor protection relay has no display/function | Auxiliary supply failure | ❌ Low | Measure relay supply voltage | Check power module and wiring first |
| Replacement module does not operate correctly | Parameter or revision mismatch | ✅ High | Compare old/new module labels and settings | Restore configuration and verify compatibility |
❗ Technical support note: If diagnosis is unclear, provide photos of the SPCJ4D34-AA label, SPAM relay case, CT wiring, relay settings, and fault records.
Frequently Asked Questions (FAQ)
Q: What is ABB used for?
A: is a protection relay module used in ABB SPAM 150 C systems for motor protection functions such as overcurrent, earth fault, and phase imbalance monitoring.
Q: Is a complete protection relay?
A: No. It is a modular relay board used as part of an ABB SPAM protection relay assembly. The complete system includes additional modules and housing.
Q: Can I replace directly?
A: Only after confirming the SPAM system configuration, module revision, CT input range, and relay parameters. Similar ABB modules may not have identical protection functions.
Q: Does require programming after replacement?
A: Protection parameters should be checked and restored after replacement. Do not assume factory defaults match the existing motor protection settings.
Q: Why is an ABB surplus unit cheaper than a factory supply?
A: Industrial relay modules are often sourced from maintenance inventory, unused project stock, or discontinued equipment storage. Confirm condition and testing records before installation.
Q: What is the most common replacement mistake with this module?
A: Installing the hardware without matching the original protection settings. The relay may power up but provide incorrect motor protection.
Q: What testing should be requested before buying a used ?
A: Request serial/label photos, visual inspection, power-up verification, relay function testing, and parameter backup confirmation.
