Description
Key Technical Specifications
- Model: ABB SS822
- Product Type: Power Supply Module
- System Compatibility: ABB System 800xA, AC800M automation platforms
- Output Voltage: 24 V DC
- Power Supply Configuration: Redundant power supply arrangement
- Input Voltage: 120/230 V AC (verify exact variant before installation)
- Communication Interface: Power system status monitoring through ABB control architecture
- Mounting Type: DIN rail / system rack installation (application dependent)
- Operating Temperature: Verify exact environmental rating from OEM datasheet
- Application: Industrial automation, DCS, PLC control cabinets
- Standards: Designed for industrial control system applications
Product Introduction

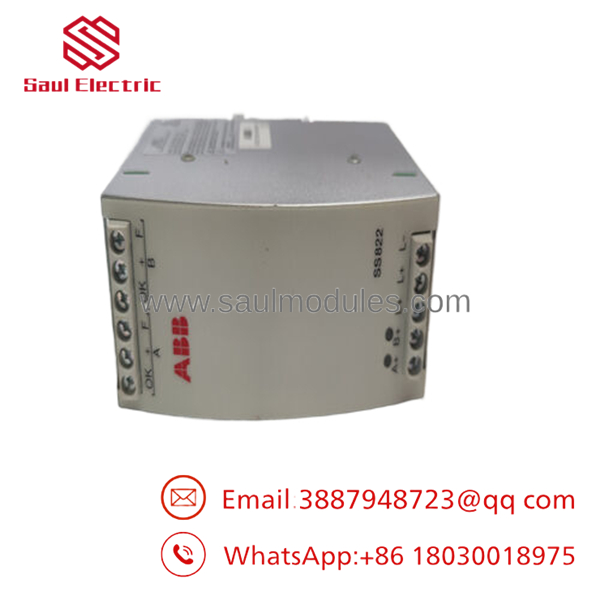

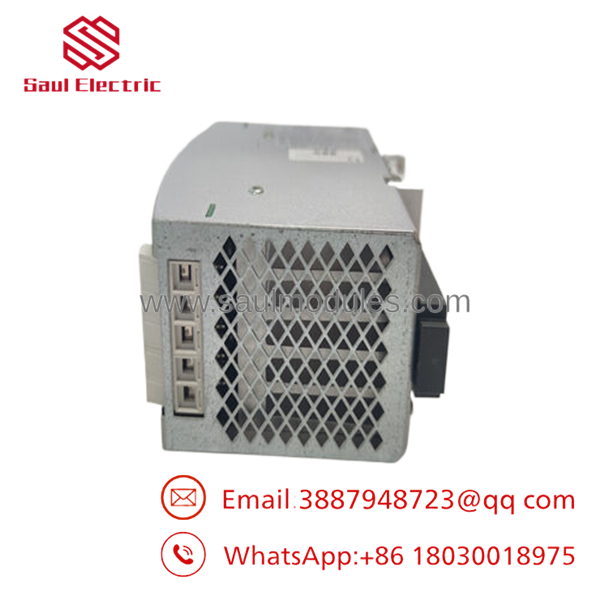

The ABB SS822 is a 24 V DC power supply module used in ABB System 800xA and AC800M industrial automation systems. It provides regulated DC power for control system components, I/O modules, and automation cabinets where stable power availability is required.
The SS822 is commonly selected for replacement of installed ABB power modules in DCS environments. For field replacement, verify rack configuration, power requirements, and OEM compatibility before installation.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power LED after installation | Missing AC input or failed upstream breaker | ✅ High | Measure AC input voltage at supply terminals with multimeter | Confirm incoming power before replacing SS822 |
| 24 V DC output missing | Internal PSU fault or overload condition | ✅ High | Measure output terminals and compare with rated 24 V DC output | Remove load and retest; replace module if output remains unstable |
| Control modules randomly reboot | DC voltage drop or insufficient power capacity | ✅ Medium | Measure 24 V DC under operating load | Calculate total rack consumption and maintain power margin |
| Redundancy alarm active | Backup power module mismatch or wiring issue | ✅ High | Check redundant configuration and connection status | Verify both supply units and cabinet wiring |
| System communication faults after replacement | Incorrect system configuration or compatibility issue | ❌ Low | Review controller diagnostics and hardware configuration | Confirm SS822 compatibility with installed ABB system version |
| Power supply overheats | Cabinet airflow issue or excessive load | ⚠️ Medium | Check temperature and cabinet ventilation | Correct cooling or reduce load before replacing module |
If the fault remains unclear, provide photos of the installed module, wiring terminals, LED status, and controller diagnostic logs for technical review.
- SS822
Frequently Asked Questions (FAQ)
Q: Is the ABB a PLC CPU or an I/O module?
A: No. The is a power supply module. It provides DC power for ABB automation systems and is installed as part of the control system power architecture.
A: Usually, but verify the exact system configuration first. Check the installed ABB hardware layout, power requirements, and redundant setup before swapping the module.
A: Availability depends on supplier stock because many ABB automation components have moved into replacement or lifecycle management stages. Confirm current inventory status before planning downtime.
A: The power supply module does not store PLC application logic. A normal power module replacement does not erase controller programming, but always follow site shutdown procedures.
Q: Why is this module cheaper than buying directly from the factory?
A: Many industrial buyers source New Original or New Surplus ABB modules from automation inventory channels. These units may come from unused project stock or discontinued inventory rather than active production supply.
Q: Is the tested before shipment?
A: A properly handled replacement unit should be verified before installation. Typical checks include visual inspection, power-on test, output voltage measurement, and confirmation of module condition.
Q: Can I install the while the system is running?
A: Do not assume hot-swap capability. Verify the specific ABB system manual before removal or insertion. Incorrect replacement procedures can interrupt the control system or damage connected hardware.
