ABB TC514V2 3BSE013281R1 AF100 Opto Modem

Description

Key Technical Specifications

• Model: TC514V2
• Product ID: 3BSE013281R1
• Manufacturer: ABB
• Product type: AF100 twisted pair / opto repeater
• Protocol / network: Advant Fieldbus 100
• Power supply: 24 V DC
• Rated isolation: 50 V
• Mounting: DIN-rail
• Dimensions: 168 mm x 122 mm x 58 mm
• Weight: 0.34 kg
• RoHS status: Exempt under ABB declaration for legacy hardware
• Replacement note: TC514 is listed as replaced by TC514V2 in ABB documentation

Product Introduction

ABB TC514V2 3BSE013281R1 is an Advant Fieldbus 100 twisted pair to optical fiber repeater used in legacy ABB control and communication architectures. It converts AF100 twisted pair links to optical fiber for longer-distance and electrically isolated transmission.

This module is a practical fit when an installed ABB Advant system needs the same communication layer preserved without reworking the cabinet design. It is DIN-rail mounted, powered by 24 V DC, and ABB documentation identifies TC514V2 as the replacement for TC514.

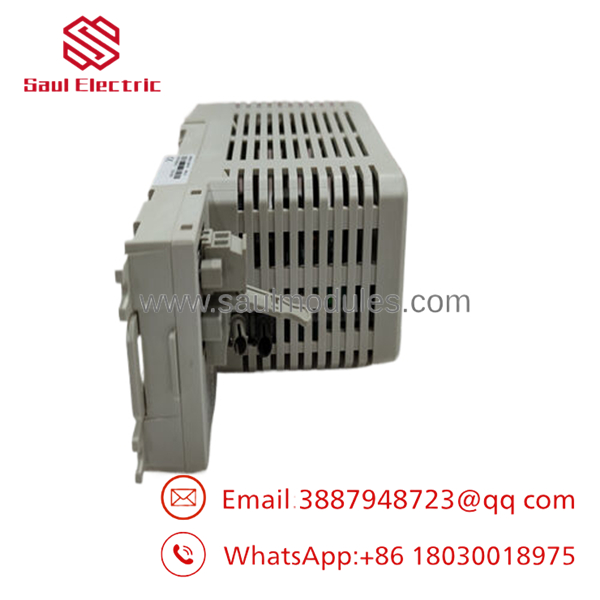

TC514V2

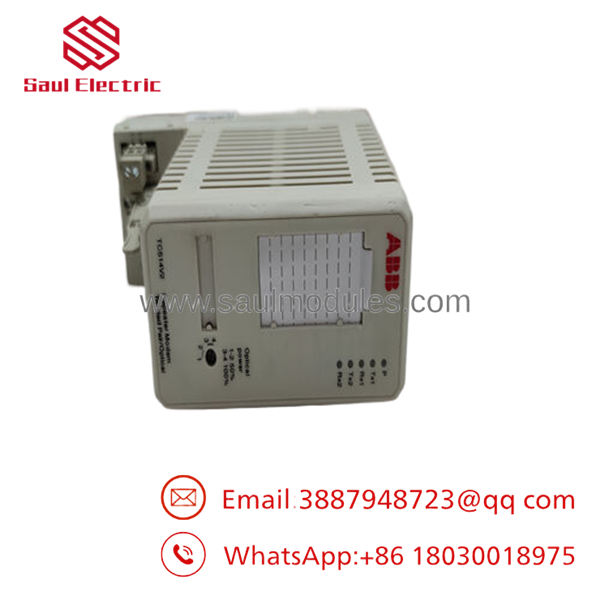

TC514V2

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

1. Notify operations and isolate the panel. Lock out/tag out the cabinet and wait at least 5 minutes for stored energy to discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the current configuration, record all terminal numbers, and photograph the existing wiring and any jumper or switch positions.
4. Confirm the exact order number and cabinet space before opening the enclosure.

Stage 2: Removing the Old Module

1. Remove the access cover if present.
2. Label each wire before disconnecting it.
3. Release the DIN-rail latch and pull the unit straight off the rail.
4. Inspect the rail, terminals, and fiber/twisted-pair connectors for oxidation, looseness, or damage.
5. Keep the old unit nearby until the replacement passes validation.

Stage 3: Installing the New Module

1. Put on the ESD strap and confirm the model number matches exactly.
2. Clone the original configuration. Match any selector settings, termination links, and wiring orientation exactly as photographed.
3. Snap the unit onto the DIN rail and confirm the latch is fully engaged.
4. Reconnect the twisted pair and optical connectors carefully, then tighten all field wiring to the correct torque.
5. Verify the checklist: [] settings copied, [] wiring secured, [] latch locked.

Stage 4: Power-On & Testing

1. Use a multimeter to verify there is no short on the 24 V rail before energizing.
2. Power the module and cabinet control supply first.
3. Confirm the power LED comes on and that the Tx/Rx indicators behave as expected on both media sides.
4. Verify communication from the AF100 side and confirm the downstream segment is healthy.
5. Run a link test before putting the process back into service.
6. Time estimate: 5–10 minutes for mechanical replacement, 10–15 minutes for verification.
7. ⚠️ If there is no comms on one side, check polarity, connector cleanliness, and the downstream media segment before blaming the module.

Frequently Asked Questions

A: No. Treat it as a powered communication device, not a casual field-swappable part. Shut the cabinet down first to avoid backplane or link damage.

Q: Is this model obsolete?
A: Yes, it is legacy ABB Advant hardware. Stock can still appear, but you should plan around limited availability and verify condition carefully.

Q: What does this unit actually do?
A: It converts AF100 twisted pair communication to optical fiber. In plain terms, it lets an older ABB network bridge media types without redesigning the control system.

Q: Is TC514V2 the same as TC514?
A: ABB documentation shows as the replacement for TC514. That said, verify the exact cabinet wiring and revision before assuming a drop-in swap.

Q: Why is surplus pricing lower than OEM list price?
A: Because it is usually discontinued inventory, not fresh factory production. Lower cost is fine if the seller can prove identity, test status, and physical condition.

Q: What should I check before ordering?
A: Confirm the full order number, 24 V DC supply, DIN-rail fit, and whether your site is actually on Advant Fieldbus 100. Those details decide whether the part will work without rework.

Q: Is it new or refurbished?
A: Ask for that in writing. I would only accept New Original, New Surplus, or tested refurbished if the seller can show photos and test evidence.
