Description
3. Key Technical Specifications
- Application Range: Synchronous machines 100 kVA to 80 MVA
- Excitation Output: Up to 20 A continuous (1020 model); variants up to 40 A with power module
- Power Supply Input: Wide range AC/DC, 0-250 VAC / 25-600 Hz typical
- Output Voltage: 0-300 VDC nominal
- Communication: Ethernet 10/100 MBit/s, Modbus TCP, USB
- Environmental: Robust design for harsh industrial conditions, wide temperature operation
- Control Modes: AVR / FCR / PF / VAR with limiters and soft start
- I/O: Flexible configurable analog and digital inputs/outputs
- Software Packages: LIGHT, BASIC, FULL with optional PSS
- Certifications: Compliant with major grid codes including German VDE-AR-N standards
- Dimensions/Protection: Compact footprint, IP20 typical
4. Product Introduction & Supply Chain Strategy
The ABB UNITROL1000 is a compact automatic voltage regulator designed for precise voltage control of synchronous generators and motors in industrial and power generation applications. It maintains stable operation during load changes and supports machines ranging from small 100 kVA units to medium 80 MVA systems, delivering fast response and built-in functions like rotating diode monitoring and load sharing.
Purchasing this as New Surplus delivers strong Total Cost of Ownership benefits by securing genuine ABB hardware ahead of potential lead time spikes or EOL announcements on specific variants. It avoids the failure risks of refurbished units that can trigger costly downtime while providing full expected service life and warranty coverage. Maintaining buffer stock on critical excitation components like these minimizes stock-out incidents without excessive capital tie-up, especially useful for plants relying on cross-site standardization.

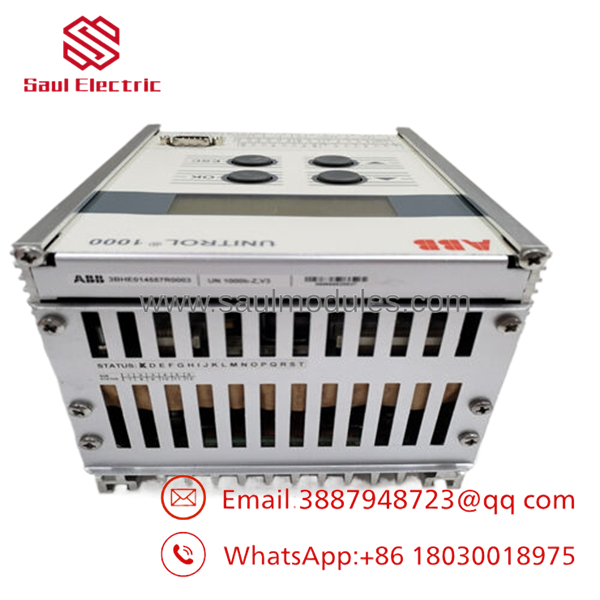

- UNITROL1000

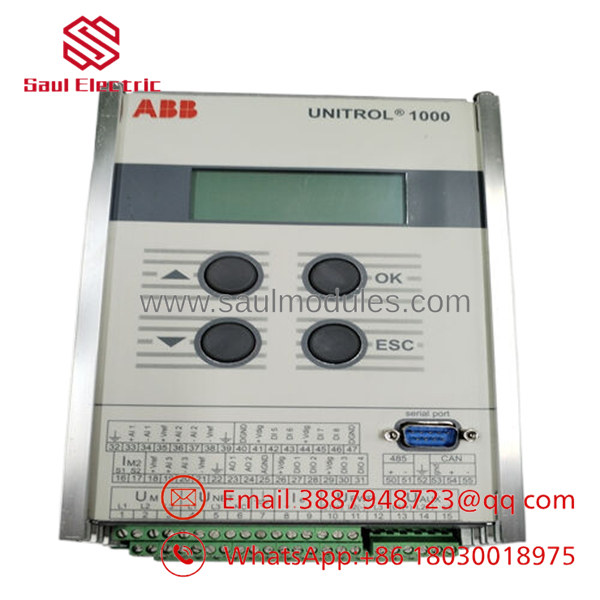

- UNITROL1000
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Perform lock-out/tag-out on the excitation system. Gather tools including a grounded ESD wrist strap, multimeter, and camera. Photograph existing DIP switch settings (if applicable), terminal wiring, and parameter configurations from the old unit. Verify 24V supply stability with 20% buffer margin.
Stage 2: Removal Power down the system completely. Carefully extract the old module from the rack using even pressure to prevent bending backplane pins. Document all connections before disconnection.
Stage 3: Installation (Clone & Seat) Set the new UNITROL 1000 to match the photographed DIP switches and jumper positions exactly. Align and firmly seat the module into the backplane. Reconnect wiring precisely, matching any revision-specific pinouts.
Stage 4: Power-On & Testing Check 24V rails for shorts before full power-up. Monitor LEDs for RUN status versus ERR indications. Use CMT1000 commissioning tool to verify communication handshake, download logic parameters, and perform auto-tuning where supported. Confirm voltage regulation and protective functions.
6. Firmware/Software Versions & Upgrade Notes
Recommended firmware follows the latest compatible release for your specific UNITROL 1000 variant (typically 6.xxx series for full functionality). Use the CMT1000 tool for upgrades. Backward compatibility is maintained for core functions across major versions, but always verify exact match for your hardware. Forward compatibility from older versions generally works, but test thoroughly in a controlled environment.
Warning: Upgrading firmware during a hardware swap carries risks of parameter mismatches or temporary communication timeouts. Downgrading can disable newer features or cause instability. Always back up current configuration first and avoid changes during live operation unless using the supported online upgrade path.
7. Frequently Asked Questions (FAQ)
Q: Why is this New Surplus UNITROL 1000 priced lower than brand-new OEM but higher than refurbished options? A: We source genuine ABB New Surplus inventory through authorized channels at a discount to list price. This gives you full original manufacturing quality and expected 10-15 year lifespan without the gamble of used parts. The premium over refurbished reflects avoided downtime risks.
Q: Are these truly New Surplus units? A: Yes. These are Original New units in anti-static packaging, verified through full functional testing in a controlled rack environment. They have zero runtime wear, original packing documentation, and serial number traceability — never pulled from service or refurbished.
Q: What is the obsolescence status of the UNITROL 1000 series? A: The series remains active with support, but specific older variants are moving toward EOL. Strategic last-time-buy and buffer stock make sense to protect against future availability gaps in critical excitation applications.
Q: Can the UNITROL 1000 be hot-swapped? A: Hot-swapping carries risks to both the module and system. We strongly recommend proper lock-out/tag-out and controlled power-down for safe replacement to avoid backplane issues or control disruptions.
Q: Will my existing parameters and logic be retained after swap? A: With proper firmware match and configuration backup via CMT1000, parameters transfer reliably. Always clone settings exactly and verify post-installation.
Q: What warranty do you provide on these New Surplus units? A: We back them with a solid 1-2 year warranty against manufacturing defects, supported by our QC test reports. This far exceeds typical 30-day coverage on refurbished parts.
Q: How do I confirm compatibility with my generator setup? A: Share your machine rating, existing firmware version, and application details. Our team can verify fit and advise on any required software package or options.
