Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | HEIE450617R1 |
| Module Type | EtherCAT Communication Module |
| Data Rate | 10/100 Mbps |
| Power Consumption | 5 W typical |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or chassis |
| Function | High-density signal interfacing via EtherCAT |
| Compatibility | ABB automation systems (S500, AC500, etc.) |
4. Product Introduction

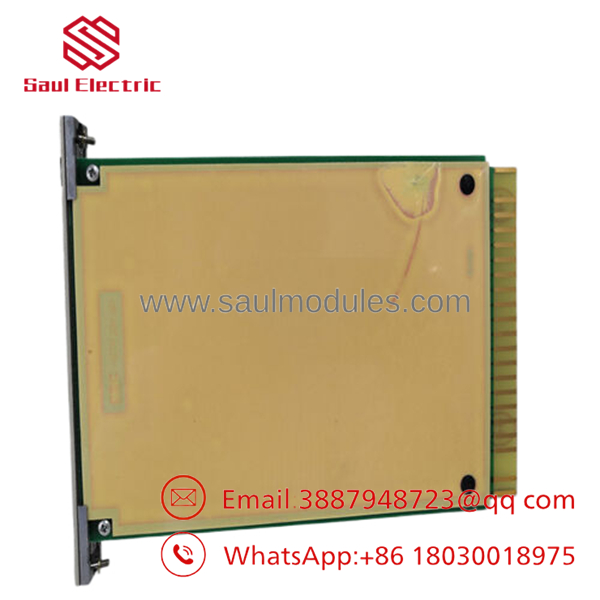

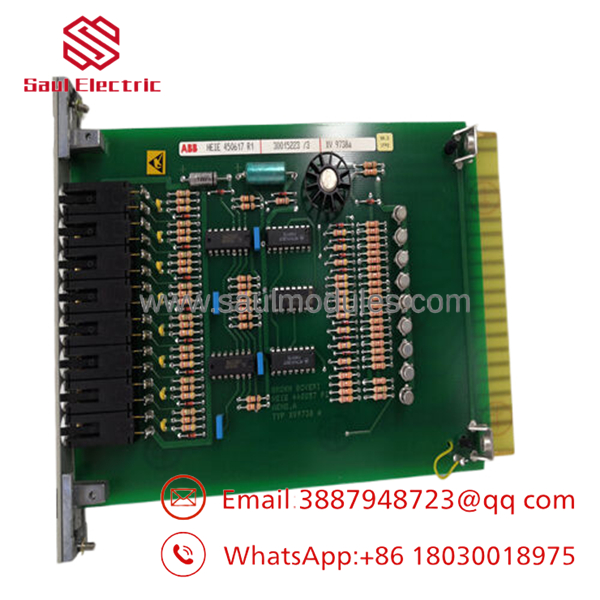

The ABB XV9738a (HEIE450617R1) is an EtherCAT communication interface module that enables high-speed networking in industrial automation setups. It connects controllers, I/O devices, and drives with low-latency data exchange.
This module provides reliable real-time communication for distributed control systems. Engineers rely on it for its integration with ABB platforms and solid performance in machine and process applications where deterministic networking is required.
- XV9738a
- XV9738a
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No link LEDs | Cable or port issue | ✅ High | Check Ethernet cable and port LEDs | Test with known good cable; verify switch |
| Communication timeout | Configuration mismatch | ✅ High | Use engineering tool to read diagnostics | Confirm EtherCAT master settings and node ID |
| Intermittent data loss | EMI or grounding problem | ✅ Medium | Inspect shielding and ground connections | Improve cable routing and grounding |
| Module not recognized | Power or seating fault | ✅ High | Verify power supply and module insertion | Reseat module; measure supply voltage |
| High error rate | Network overload or fault | ✅ Medium | Monitor network traffic and error counters | Reduce load or isolate faulty segment |
Share network topology, error logs, and firmware versions with support if problems continue.
6. Frequently Asked Questions (FAQ)
Is the XV9738a hot-swappable? No. Power down the affected network segment before swapping. Live changes can disrupt EtherCAT ring or bus communications.
What networks does this module support? It primarily handles EtherCAT protocol for real-time industrial communication. Confirm compatibility with your specific ABB controller and topology.
Is this New Original? Yes — New Original / New Surplus with traceability. Units undergo full inbound inspection and functional testing on compatible racks.
Will it replace an existing XV9738a directly? Yes in most cases. Match firmware and parameter settings. Photograph existing connections and configuration before removal.
How do I set it up? Configure via ABB engineering software. Assign the correct EtherCAT device description file (ESI) and verify network topology in the master controller.
What is the warranty period? 1-year warranty from shipment on tested New Original modules. Standard coverage for defects under normal use.
Why source from surplus stock? Faster delivery than factory lead times. Every module receives visual inspection, power-up tests, communication handshake verification, and burn-in where applicable. Test reports available upon request.
