Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3BHE032285R0101 |
| Board Designation | XVC772A101 / HVD-BOARD VARNISHED |
| Brand | ABB |
| Product Type | High-Voltage Drive Control Board |
| Rated Voltage | 4.5 kV (IGCT / thyristor circuit) |
| Rated Current | 1200 A (rms, 6-pulse bridge configuration) |
| Thyristor Topology | 6-pulse bridge (3 pairs of anti-parallel thyristors) |
| Isolation Voltage | 10 kV AC (1 min, board-to-ground) |
| Cooling Method | Water-cooled with integrated manifold (thermal resistance ≤ 0.08 K/W) |
| Control Power | 24 V DC (supplied via backplane or external) |
| Dimensions (L×W×H) | 380 mm × 220 mm × 180 mm (approx.) |
| Weight | Approx. 15 kg (complete assembly) / 0.2–0.25 kg (board only) |
| Operating Temperature | -40°C to +85°C (ambient); up to +125°C (junction) |
| Protection Rating | IP20 (cabinet-mounted) |
| Protection Features | Overcurrent (200% limit for 10 ms), overvoltage clamping, thermal monitoring |
| Certifications | IEC 60747, CE, RoHS |
| Compatible Systems | ABB ACS6000 medium-voltage drives, industrial rectifiers |
Product Introduction & Supply Chain Strategy

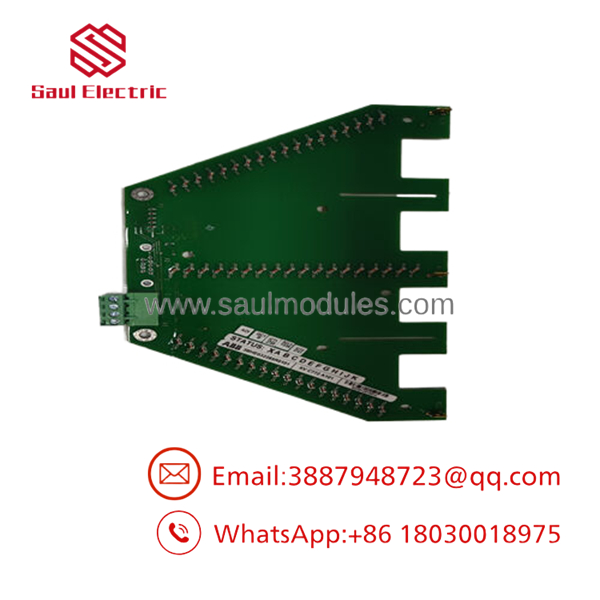

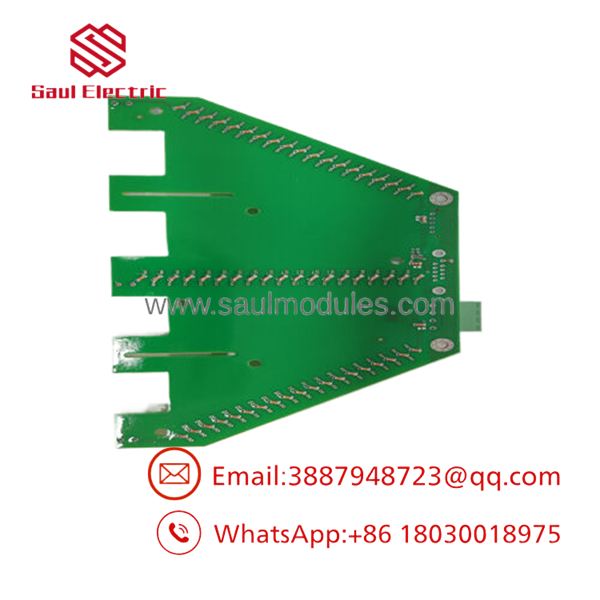

The ABB 3BHE032285R0101, also designated as the XVC772A101 HVD-BOARD VARNISHED, is a critical high-voltage control board for the ABB ACS6000 medium-voltage drive platform. It sits between the main drive controller and the power semiconductors, executing the precise gate drive logic for the 6-pulse IGCT bridge. The board manages the timing of high-power switching, monitors fault conditions, and reports status back to the drive control system. It is the primary control interface for the power conversion stage in 3.3 kV to 6.6 kV motor drives, typical of applications like boiler feed pumps, mine hoists, and large compressors. The “VARNISHED” designation indicates a conformal coating for enhanced humidity and dust resistance, critical for reliability in harsh industrial environments.
Procuring this board as New Surplus is a TCO-critical decision. This is not a general-purpose component — it is the firing brain for the most expensive power stage in an MV drive. Refurbished HVD boards carry extreme risk: degraded gate drive timing from aged components, compromised isolation from previous overvoltage events, and latent damage to the power semiconductors that no cosmetic inspection can detect. A failure in this board during operation trips the entire drive stack, stopping a multi-megawatt motor. On a critical compressor or boiler feed pump, the unplanned downtime cost exceeds the board’s value by orders of magnitude. This unit offers OEM-origin traceability, zero operational hours, and full 1-year warranty — eliminating the uncertainty of used or repaired components .
- 3BHE032285R0101
- 3BHE032285R0101
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the drive. Disconnect medium voltage input and verify the DC bus capacitors are fully discharged per ABB safety procedure. The DC link in an ACS6000 cabinet holds lethal energy for minutes after power-down.
- Verify the water cooling loop is isolated and depressurized before disconnecting any hoses. Water ingress into the control board is catastrophic.
- Wear appropriate PPE for MV work and ESD wrist strap. Gather a camera for documentation.
Stage 2: Removal
- Disconnect all fiber optic cables from the board. Mark each cable and port (Tx/Rx polarity is critical for gate firing sequences).
- Disconnect the water cooling hoses if the board includes the integrated manifold. Cap fittings to prevent coolant spillage.
- Remove mounting screws and carefully extract the board from its slot in the chassis. Do not rock the board side-to-side — the backplane connector pins are fragile.
Stage 3: Installation
- Inspect the new board for any transit damage. Verify the VARNISHED coating is intact.
- Insert the board into the guide rails and press firmly until the backplane connector seats fully. Secure with original hardware.
- Reconnect water cooling hoses — verify all O-rings are in good condition and connections are torque-specified per ABB manual. Do not over-tighten.
- Reconnect fiber optic cables to the exact ports recorded during removal. Polarity errors will prevent gate firing.
Stage 4: Power-On & Testing
- Re-energize the water cooling loop first. Verify flow rate and pressure are within specifications (typically ≥ 20 L/min, 3–5 bar).
- Re-energize 24 V DC control power. Observe LED status on the board — normal operation is indicated by a steady ready state.
- Restore main drive power and perform pre-charge. Conduct a low-speed/no-load motor test to verify proper gate firing and control handshake before returning to full production duty.
Firmware/Software Versions & Upgrade Notes
The HVD board contains embedded logic that determines the firing angle, pulse width, and fault response characteristics. It is not user-configurable via field firmware upgrades.
Version compatibility note: The 3BHE032285R0101 is the dedicated board for the ACS6000 platform. Verify the cabinet type and hardware revision of your existing system. Earlier versions of the HVD board may not be pin-compatible with later drive revisions. Always match the part number exactly to maintain system certification and safety ratings.
Critical warning: Only qualified ABB drive service personnel should handle this board. The board resides in the medium-voltage section of the drive cabinet and presents lethal stored energy even when disconnected from mains. Hot-swapping is not supported — always perform board replacements during a planned outage.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden failure risk of refurbished stock. The cost of a single MV drive failure on a critical compressor dwarfs the price difference.
Q: Is this module still active or is it EOL?
A: This board remains active for the extensive ACS6000 installed base across power plants, mines, and chemical facilities . Securing a new surplus unit now protects against future lead time increases as ABB’s focus shifts to newer drive platforms .
Q: What is the difference between this board and a standard power supply?
A: This is not a DC-DC converter — it is a high-voltage drive control board that manages the firing of IGCTs in the power bridge . The 4.5 kV isolation rating and 1200 A current capability reflect its role in the medium-voltage power section.
Q: Can I hot-swap this board while the drive is running?
A: No. This is not a hot-swappable module. Always de-energize and discharge the DC link before any service work . Hot-swapping would cause an immediate fault and risk severe backplane damage.
Q: What is the warranty period and coverage?
A: The board carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not to field wiring, water cooling system faults, or damage from improper installation. All units are QC-tested before shipment to verify gate drive communication and isolation integrity.
