Product Introduction & Engineering Value
When standalone machinery calls for simple logic execution without the complexity of modern industrial Ethernet, keeping a legacy processor online is often the fastest path to uptime. The Allen-Bradley 1747-L514 represents the standard SLC 5/01 architecture, offering 4K of configurable user memory in a rugged slot-0 form factor.
Engineers rely on this entry-level CPU to maintain legacy stamping presses, conveyor diverts, and dedicated pump skids. It interfaces directly with DH-485 network drops for programming via RSLogix 500 while reliably controlling local chassis I/O.
Technical Specifications
| Specification | Parameter Value |
| Processor Type | SLC 5/01 |
| User Memory | 4K Instructions (Configurable Data/Program Storage) |
| Bit Execution Time | 0.8 µs minimum |
| Onboard Comm Port | DH-485 (RJ-45 connector) |
| Max Local I/O Capacity | 256 local I/O points (up to 3 chassis max) |
| Backplane Current (5V DC) | 90 mA |
| Backplane Current (24V DC) | 0 mA |
| Program Backup Options | Capacitor back-up (lithium battery optional: 1747-BA) |
| EEPROM Support | 1747-M1 or 1747-M2 non-volatile memory modules |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Field Application & The “Trench” Experience
During an unplanned stoppage on a secondary cardboard baler line, an old SLC 5/01 CPU failed following a severe voltage surge in the main power distribution panel. The maintenance team faced a total plant slowdown as material backed up. Pulling a tested replacement 1747-L514, they transferred the saved RSLogix 500 program file via a 1747-UIC USB-to-DH485 interface, inserted the unit into Slot 0, and flipped the keyswitch to RUN. The baler resumed operation in under 25 minutes, avoiding an expensive control panel retrofit.
- Dedicated Material Handling Swappers: Running localized logic for automatic pallet turntables and shuttle cars.
- Standalone Chemical Dosing Skids: Managing flow rate calculations and pump interlocks across small industrial water treatment panels.
- Secondary Stamping Feed Mechanisms: Driving pneumatic indexers and part-present proximity sensor arrays in high-cycle stamping cells.
Transparency SOP: QA & Testing
- Physical & Memory Socket Inspection: Checking the PCB logic board, backplane gold edge connectors, RJ-45 port pins, and verifying the EEPROM socket contacts.
- Backplane Current & Power-Up Verification: Inserting the module into Slot 0 of a standard 1746 rack to monitor logic startup, power LED status, and backplane current draw.
- Firmware & Memory Stress Test: Loading a full 4K logic test program into processor RAM using RSLogix 500; toggling memory bit states and stress-testing math instructions.
- DH-485 Network Communications Check: Establishing continuous polling handshakes over the RJ-45 port to verify noise-free serial transmission at 19.2 kbps.

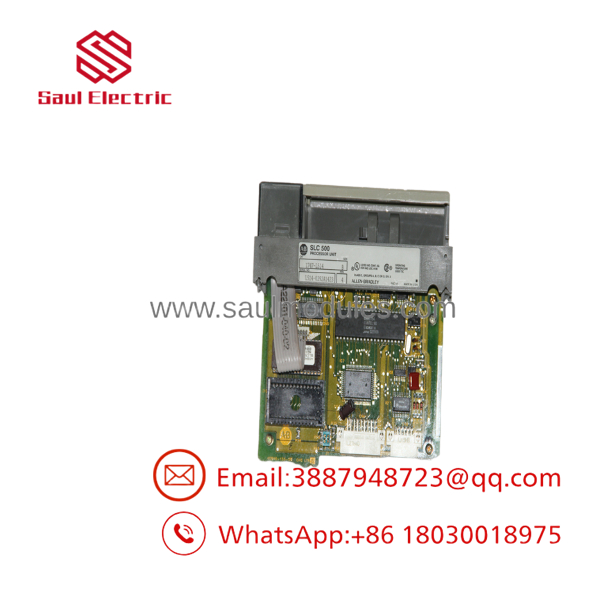

- 1747-L514

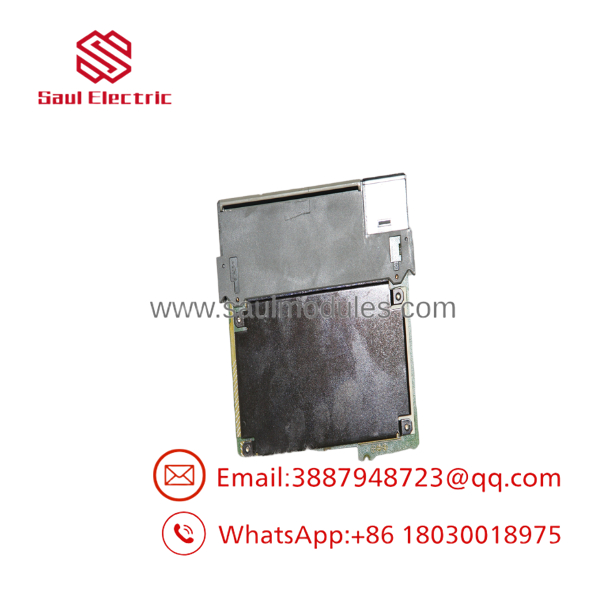

- 1747-L514
The Veteran’s Tech Trap Guide
- ⚠️ DH-485 RJ-45 Port Warning: The RJ-45 port on the front of the 1747-L514 is NOT an Ethernet port! Plugging a standard computer Ethernet card or network switch into this port will inject 24V DC network power into your network interface card and fry the comm transceiver. Always use a dedicated DH-485 interface device like the 1747-UIC or 1747-PIC converter.
- PRO TIP: Memory Retention Safeguards: While the 1747-L514 includes internal capacitor retention for short power outages, extended downtime requires a fresh 1747-BA lithium battery. For absolute protection against program loss in unpowered spare panels, install a pre-programmed 1747-M1 or M2 EEPROM module into the CPU’s memory socket.
- ⚠️ I/O Memory Allocation Limits: The SLC 5/01 has fixed memory allocation structures and limited instruction set capabilities compared to later SLC 5/03 or 5/05 processors. Advanced instructions like floating-point math, indirect addressing, and complex MSG instructions are not supported on the .
Dynamic FAQ
Q: Can I replace a 1747-L511 (1K SLC 5/01) with a 1747-?
A: Yes. The 1747- is fully backward compatible with the 1747-L511, offering expanded 4K memory while utilizing the exact same physical slot, pinout, and DH-485 communication setup.
Q: Does the 1747- require a battery to retain its program?
A: It features an internal capacitor that preserves RAM for up to a few days without power. However, for long-term power-off retention, installing a 1747-BA lithium battery module is strongly recommended.
Q: How do I program a 1747- from a modern Windows PC?
A: You need RSLogix 500 programming software and a 1747-UIC (USB to DH-485 converter) connected via a standard 1747-C13 cable to the RJ-45 port on the CPU.
Q: Are these replacement CPU modules thoroughly tested before shipment?
A: Yes. Every 1747- undergoes complete bench testing, including program load/download cycles, RAM memory checks, and extended DH-485 communications verification on an active 1746 chassis.
