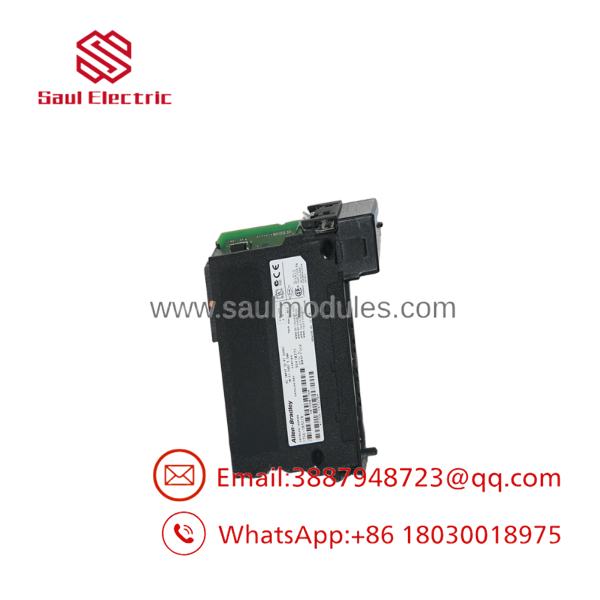

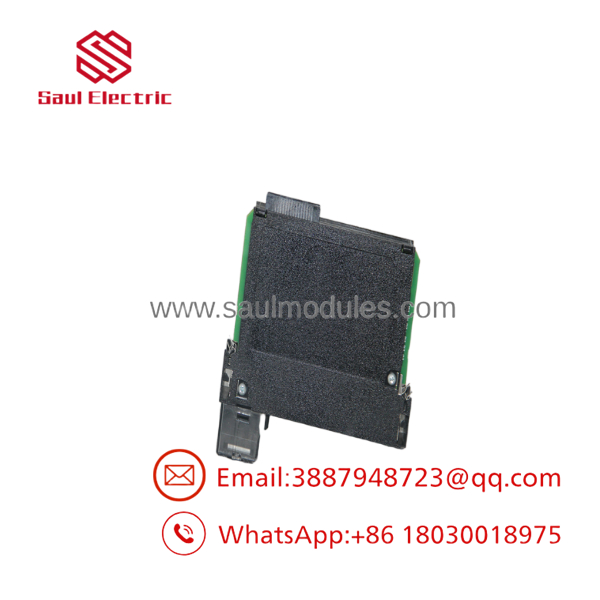

Allen-Bradley 1756-IB32B ControlLogix 32 Point DC Input Module

Description

Product Introduction

The Allen-Bradley 1756-IB32B is a ControlLogix 32-point DC digital input module designed to collect discrete field signals from sensors, switches, and machine feedback devices. It provides high-density 24VDC input capability in a single ControlLogix chassis slot, reducing panel space requirements for large discrete I/O systems. The module supports 10-31.2VDC input signals through a 36-pin removable terminal block.

In real plant installations, the 1756-IB32B is commonly selected when engineers need more input points without expanding chassis size. Compared with lower-density modules such as the 1756-IB16, it doubles channel capacity while keeping the same ControlLogix I/O architecture. The trade-off is shared input grouping, so applications requiring channel-by-channel isolation should consider isolated input models instead.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The call comes in at 2 AM:

“The machine is running, but half the sensors disappeared.”

The PLC processor is healthy. Network communication is normal. The problem points toward field I/O.

The technician starts checking sensors one by one.

That takes time.

A 32-point input module like the 1756-IB32B is often installed in machines with many discrete devices. One failed channel may be simple. Several failed channels usually point toward common wiring, power distribution, or terminal block issues.

Typical applications include:

• Automotive Manufacturing – Assembly line sensor feedback – The 1756-IB32B handles high quantities of proximity switches, clamp sensors, and position feedback devices in ControlLogix systems.
• Packaging Equipment – Machine sequence monitoring – Provides input collection for photoeyes, cylinder sensors, and operator pushbuttons.
• Material Handling – Conveyor automation – Monitors limit switches, safety relay feedback, and equipment status signals.
• Water Treatment – Pump and valve monitoring – Collects discrete equipment feedback across control panels.
• OEM Machinery – High-density control cabinets – Reduces slot usage where many 24VDC inputs are required.

Field Case

A distribution center conveyor system experienced random stops across multiple zones.

Maintenance initially suspected several failed sensors because multiple input points were dropping.

During troubleshooting, the team found the sensors were operating correctly. The issue was a loose DC common connection affecting one input group on the 1756-IB32B terminal block.

After correcting the wiring and securing the terminal connections, the conveyor system returned to normal.

The input module was never the problem.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks.

• Inbound Inspection
  • Verify Allen-Bradley label, catalog number, series, and hardware revision.
  • Inspect the 36-pin terminal interface and chassis connector.
  • Check for damaged pins, corrosion, or unauthorized repairs.
• Live Rack Testing
  • Install module in a ControlLogix chassis.
  • Verify module recognition through Studio 5000 Logix Designer.
  • Apply simulated 24VDC input signals to all 32 channels.
  • Confirm input status LEDs and controller tag updates.
• Electrical Parameter Checks
  • Verify input voltage thresholds.
  • Test channel response and filtering.
  • Measure backplane current consumption.
• Firmware Verification
  • Record exact firmware revision.
  • Confirm module profile compatibility.
  • Verify electronic keying information.
• Final QC & Anti-static Packaging
  • Complete channel-by-channel testing.
  • Protect terminal and backplane contacts.
  • Package using anti-static materials.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse 1756- with 1756-IB32I. The standard does not provide individual channel isolation. Verify the exact catalog number before ordering.

❗ Check the terminal block part number. The 1756- requires a compatible 36-pin RTB. Reusing the wrong terminal block creates wiring problems.

⚠️ Watch the input grouping. Although the module has 32 points, inputs share common groups. A common wiring fault can affect multiple channels.

⚠️ Do not ignore input filtering. A sensor that pulses quickly may appear unstable if the input filter configuration is incorrect.

⚠️ Verify sensor polarity before replacement. A wiring mistake between sourcing sensors and sinking inputs can create false troubleshooting paths.

Take a clear photo of the terminal block before removing the old module. Trust me. High-density I/O wiring is where small mistakes become long outages.

Frequently Asked Questions (FAQ)

Q1. What is the Allen-Bradley 1756-?

The is a ControlLogix 32-point 10-31.2VDC digital input module used for collecting discrete ON/OFF signals from industrial field devices.

Q2. What is the difference between 1756-IB16 and 1756-?

The main difference is channel density.

• 1756-IB16: 16 DC input points.
• 32 DC input points.

The provides twice the input capacity while using one ControlLogix chassis slot.

Q3. Is the 1756- a 24VDC input module?

Yes. It is commonly used with 24VDC industrial sensors and switches. The supported input range is 10-31.2VDC.

Q4. Does the 1756- provide individual input isolation?

No. The module provides input-to-backplane and group isolation, but individual channels are not separately isolated. Applications requiring isolated channels should use an isolated input module.

Q5. Can the 1756- replace a 1756-IB16?

Usually yes from a signal type perspective, but it is not a direct plug-in replacement. The Studio 5000 project, terminal block wiring, and I/O mapping must be reviewed.

Q6. Can the 1756- be hot-swapped?

ControlLogix supports certain module replacement procedures, but the correct method depends on the system design and application. Follow Rockwell Automation installation procedures before removing an energized module.

Q7. Why is a surplus 1756- cheaper than buying directly from Rockwell Automation?

Industrial automation surplus units typically come from excess inventory, plant spare stock, system upgrades, and equipment retirement programs. The important factor is inspection records and functional testing.

Q8. What warranty is typically provided?

Qualified automation suppliers commonly provide a 12-month warranty on tested new surplus and refurbished 1756- modules. Rockwell Automation lists a standard one-year warranty for the product.
