Product Introduction
The Allen-Bradley 1756-L63 is a ControlLogix 5563 processor module designed for large industrial automation systems requiring higher application memory, distributed I/O management, and complex Logix5000 control programs. It provides 8MB of user memory and supports up to 128,000 digital I/O points within a ControlLogix architecture.
The L63 processor became common in manufacturing, process control, and large OEM machines where program size exceeded the capacity of smaller L61/L62 controllers. It is now discontinued, so engineers replacing an existing unit should verify firmware revision, RSLogix 5000 compatibility, project backups, and communication module configuration before installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1756-L63 |
| Product Family | ControlLogix 5560 |
| Module Type | Processor Module |
| Controller Type | Logix5563 |
| User Memory | 8 MB |
| I/O Memory | 478 KB |
| Maximum Digital I/O | 128,000 points |
| Maximum Analog I/O | 4,000 Inputs / 2,000 Outputs |
| Maximum Tasks | 32 tasks |
| Programs per Task | 100 programs |
| Programming Software | RSLogix 5000 / Studio 5000 Logix Designer |
| Programming Port | RS-232 Serial |
| Nonvolatile Storage | CompactFlash support (1784-CF series) |
| Battery | 1756-BA1 / 1756-BATM / Series dependent |
| Backplane Current | 1200 mA @ 5.1VDC / 14 mA @ 24VDC |
| Power Dissipation | Approx. 3.5 W |
| Thermal Dissipation | Approx. 11.9 BTU/hr |
| Scan Performance | Approx. 0.08 ms per 1K instructions |
| Slot Requirement | 1 ControlLogix chassis slot |
| Operating Temperature | 0°C to +60°C |
| Lifecycle Status | Discontinued |
Application Scenarios & The “Trench” Experience
The alarm comes in during production.
“The PLC is online, but the machine logic will not execute.”
The processor shows a fault.
The spare controller is ready. Everyone expects a quick swap.
Then the questions start:
What firmware was running?
Which RSLogix 5000 version created the project?
Was the CompactFlash backup current?
Legacy ControlLogix systems are not difficult because the hardware is complicated. They are difficult because the details matter.
Typical applications include:
- Automotive Manufacturing – Large assembly cell control – The 1756-L63 executes complex sequencing, safety interlocks, and distributed I/O operations.
- Process Automation – Plant-wide control systems – Provides processor capacity for large ladder logic, function block, and structured text applications.
- Packaging Industry – Multi-station production equipment – Handles extensive machine logic and coordinated device control.
- Power Generation – Auxiliary control systems – Maintains validated legacy PLC applications where downtime costs are high.
- Material Handling – Large conveyor networks – Controls multiple remote I/O racks through ControlLogix communication modules.
Field Case
A food processing plant experienced a processor failure during a planned maintenance restart.
The spare 1756-L63 was installed and powered up correctly.
However, the controller would not accept the existing project download.
The issue was firmware mismatch.
The spare processor was at a different firmware revision than the original controller, and the available RSLogix 5000 installation did not support that revision.
After flashing the correct firmware and restoring the archived project, production resumed.
The replacement hardware was fine. The recovery process failed because the software environment was not prepared.
- 1756-L63

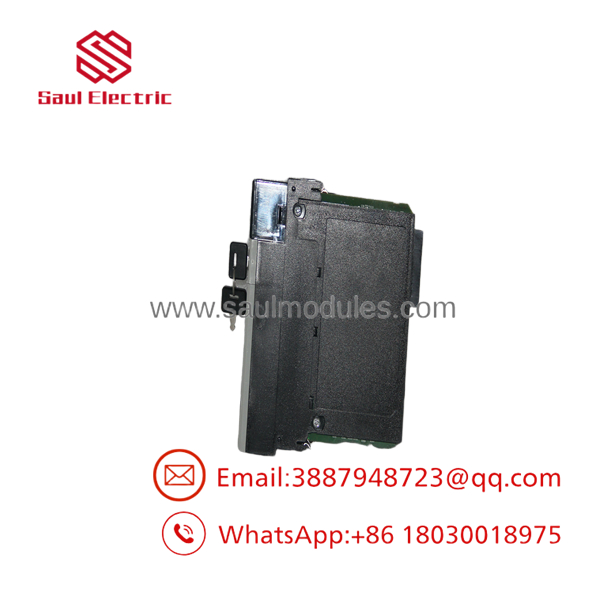

- 1756-L63
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks.
- Inbound Inspection
- Verify Allen-Bradley label, catalog number, serial number, and hardware revision.
- Inspect RS-232 connector, battery area, and chassis interface.
- Check for corrosion, physical damage, or unauthorized repairs.
- Live Rack Testing
- Install processor into a ControlLogix chassis.
- Verify controller recognition.
- Establish RSLogix 5000 communication.
- Check controller status and diagnostic data.
- Electrical Parameter Checks
- Verify backplane current draw.
- Perform repeated power-cycle testing.
- Confirm stable processor operation.
- Firmware Verification
- Record exact firmware revision.
- Confirm compatible RSLogix 5000 versions.
- Verify controller identification information.
- Final QC & Anti-static Packaging
- Clear diagnostic faults after testing.
- Protect backplane contacts from ESD.
- Package using anti-static materials.
The Veteran’s Tech Trap Guide
⚠️ Do not treat the 1756-L63 like a simple memory upgrade. The L63 has more memory than L61/L62, but firmware and project compatibility still decide whether the replacement works.
❗ Check the controller revision before downloading. An older RSLogix 5000 installation may not support the processor firmware installed on the spare.
⚠️ Do not forget the CompactFlash card. Many plants rely on external memory for recovery images and application backups.
⚠️ Verify communication modules separately. The processor does not include built-in EtherNet/IP. Network interfaces require separate 1756 communication modules.
⚠️ Check battery condition before storage. A weak battery can create unnecessary risk during extended power loss.
Take a screenshot of the Controller Properties window before removing the old CPU. Trust me. That single image can prevent hours of recovery work.
Frequently Asked Questions (FAQ)
Q1. What is the Allen-Bradley 1756-L63?
The 1756-L63 is a ControlLogix 5563 processor module with 8MB user memory used for industrial PLC logic execution and large ControlLogix automation systems.
Q2. Is the 1756-L63 still manufactured?
No. Rockwell Automation lists the 1756-L63 as discontinued, with discontinuation announced in 2017. Existing installations typically use repair services, tested surplus inventory, or migration planning.
Q3. What software is required for the 1756-L63?
The processor requires compatible RSLogix 5000 or Studio 5000 Logix Designer software depending on the firmware revision installed.
Q4. Can the 1756-L63 replace a 1756-L61 or 1756-L62?
It may be possible depending on the application, but it is not an automatic drop-in replacement. Verify firmware, memory requirements, project compatibility, and controller revision before substitution.
Q5. Does the 1756-L63 have built-in Ethernet/IP?
No.
The controller includes an RS-232 serial port. EtherNet/IP communication requires a separate ControlLogix Ethernet communication module such as the 1756-ENBT, 1756-EN2T, or similar compatible module.
Q6. Can the 1756-L63 be hot-swapped?
No.
Processor replacement requires controlled procedures. Removing the CPU from an active system can stop machine operation and interrupt process control.
Q7. Why is a surplus 1756-L63 cheaper than buying directly from Rockwell Automation?
Because the L63 is discontinued. Available units commonly come from plant spare inventories, equipment upgrades, and retired systems. The important factors are firmware verification, functional testing, and condition history.
Q8. What warranty is typically provided?
Qualified automation suppliers commonly provide a 12-month warranty on tested new surplus and refurbished 1756-L63 processors. Rockwell Automation lists a standard one-year warranty period for this product.
