Allen-Bradley 1762-L40BWA 120/240V AC Relay Output PLC Module

Description

Product Introduction

The Allen-Bradley 1762-L40BWA is a brick-style PLC from the MicroLogix 1200 family designed for standalone industrial automation. Operating on a 120/240V AC power supply, it packs 24 digital inputs and 16 relay outputs into a single compact housing.

Unlike smaller 24-point controllers, the L40 variant gives you maximum base I/O density before needing extra rack space. It handles up to six 1762 expansion modules without requiring an external power supply upgrade. It runs RSLogix 500 code natively, making it a drop-in replacement for aging control panels.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 2:15 AM on a Tuesday. A line contactor on a secondary packaging system shorts out, dumping 120VAC directly back into a relay channel on an old MicroLogix 1200. The internal relay trace burns, taking down the entire palletizing conveyor. The line is losing $4,000 an hour. You do not have time to rewrite logic or re-wire an entire panel for a Micro850 migration. You need the exact 1762-L40BWA module, flashed, loaded, and running in under twenty minutes.

Specific Applications

• Food & Beverage (Packaging Conveyors): High-speed 20kHz inputs read optical encoders while relay outputs directly cycle 120VAC pneumatic solenoid valves.
• Water Treatment (Remote Lift Stations): Reads float switches and drives pump motor starters via clean dry-contact relays, transmitting system status over Modbus RTU via telemetry radios.
• Material Handling (Palletizers & Stacker Cranes): Provides 40 base points to handle complex limit switch arrays without wasting space on external expansion cards.
• OEM Custom Machinery (Commercial Washers/Dryers): Serves as a self-contained controller running standard cyclic routines with minimal external wiring.

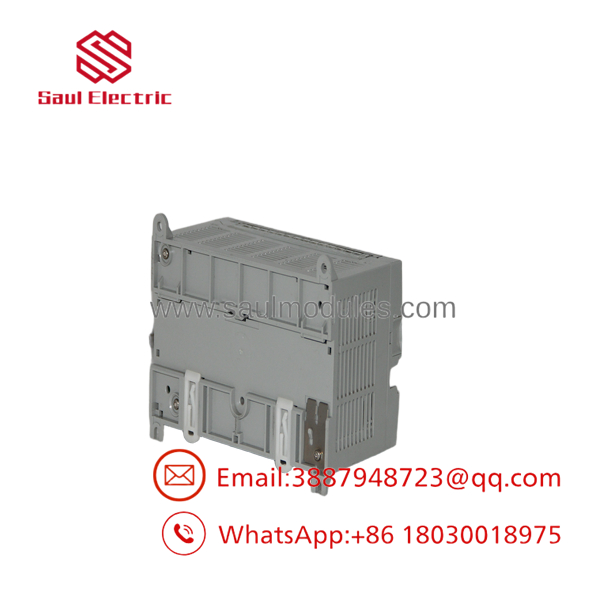

1762-L40BWA

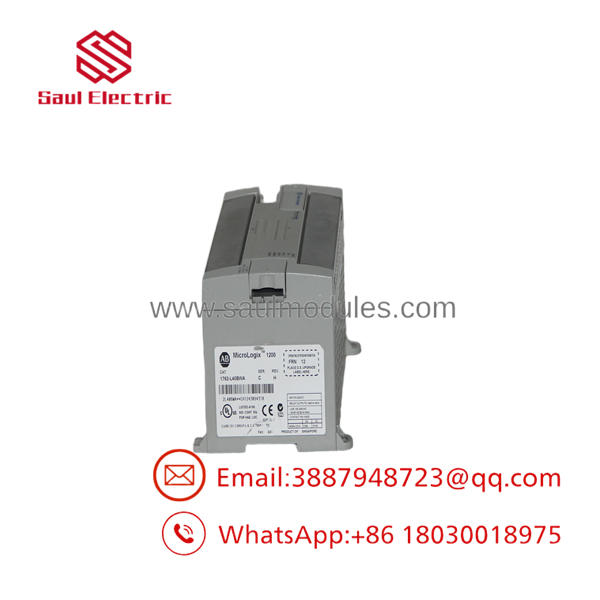

1762-L40BWA

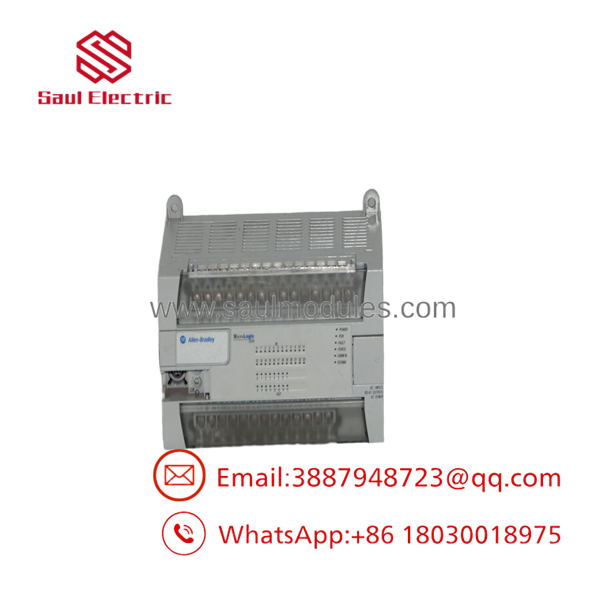

1762-L40BWA

Transparency SOP: Quality Assurance & Testing

We test every 1762-L40BWA unit on real test rigs before it goes into anti-static packaging:

1. Inbound Inspection: We inspect terminal blocks for stripped screws, verify PCB solder integrity, and confirm serial numbers match genuine OEM manufacturing batches.
2. Live Rig Testing: The brick mounts to an active 1762 backplane. We cycle every single 24VDC input and verify LED indicator responses.
3. Relay Continuity & Load Checks: Each of the 16 relay channels undergoes continuity tests under load to rule out pitted or welded contacts.
4. Communication Handshake: We flash test routines over the RS-232 port using DF1 Full-Duplex at 19.2k baud to ensure port hardware isn’t fried.
5. Auxiliary 24VDC Output Test: We meter the sensor power terminals under a 350mA load to verify clean power delivery.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Hot-Swap Expansion Modules: The 1762 bus does NOT support Removal and Insertion Under Power (RIUP). Pulling a expansion card while power is applied will fry the main processor board instantly. Kill line power first.
• ❗ Watch Inductive Flyback Voltage: If you are switching inductive loads (solenoids, motor contactors) directly with the internal relays, install RC snubbers (for AC) or flywheel diodes (for DC) across the load. Unsuppressed inductive spikes will weld these internal relays shut within six months.
• ⚠️ Check the Comm Port Mode Switch: The 1762- features a “Communications Toggle Push Button” under the door. If you lose communication during setup, press this button. It forces Channel 0 into default DF1 driver settings (19200 baud, 8-N-1, Node 1).
• ❗ 24VDC Auxiliary Power Overload: Do not overload the onboard 24VDC sensor supply terminals (+24VDC / -24VDC). Pulling more than 400mA causes thermal shutdown of the main power board, triggering a false processor fault.

Frequently Asked Questions

Q: Can I directly replace a 1762- Series A with a Series B?

Yes. Series B units are backwards compatible with Series A configurations in RSLogix 500. Keep in mind that Series B hardware updated internal component layouts and improved noise immunity on high-speed input channels.

Q: What software do I need to program the 1762-?

You need RSLogix 500 (Standard or Professional) or RSLogix Micro. MicroLogix Starter Lite (the free version) also supports the 1762-, provided you select the exact hardware catalog number during project creation.

Q: The FAULT LED is flashing red. Is the controller dead?

Not necessarily. A flashing red LED indicates a recoverable fault (such as a memory checksum error or math overflow). Connect via RSLogix 500, go online, check the Fault Handler, clear the error, and switch the processor back to RUN mode. If the FAULT LED is solid red, the internal hardware has failed.

Q: Can I use this unit without expansion modules?

Yes. The 1762- operates perfectly as a standalone controller using its built-in 24 inputs and 16 outputs. The expansion bus port comes covered by a protective cap from the factory.

Q: How does your 12-month warranty work on discontinued Rockwell items?

If the unit fails due to hardware fault within 365 days of purchase, we replace it immediately from our surplus inventory. If we do not have replacement stock available, we issue a full refund upon return of the defective hardware.

Q: Why buy new surplus or remanufactured instead of migrating to Micro800?

Migrating to Micro800 (CCW software) requires a complete rewrite of your ladder logic, panel design updates, and new wiring layouts. Swapping a failed 1762- with identical hardware takes under 15 minutes, eliminates logic conversion errors, and gets your machine running instantly.
