Allen-Bradley 1768-L43 CompactLogix L43 2MB Motion Controller

Description

Product Introduction

The Allen-Bradley 1768-L43 is a mid-range CompactLogix controller designed for applications requiring motion control and complex machine logic. Part of the 1768 architecture, this processor bridges the gap between smaller 1769 CompactLogix units and high-end ControlLogix platforms.

Unlike standard 1769 controllers that rely solely on right-side expansion buses, the 1768-L43 features a high-speed left-side bus dedicated to specialized 1768 communication and motion modules (like the 1768-M04SE SERCOS interface or 1768-ENBT EtherNet/IP bridge). It handles up to four axes of synchronized motion, giving system builders precise control without paying for full ControlLogix chassis hardware.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 1:30 AM on a holiday weekend. A critical bottle-labeling line at a beverage facility grinds to a halt after a major voltage sag damages the central CPU board on a 1768-L43 controller. The line uses four SERCOS drives linked via a 1768-M04SE module to sync the feed screw, star wheel, and cutter. The plant faces $12,000 in spoiled product per hour if the line stays down. Re-architecting the machine to a newer 5370 CompactLogix requires updating code to Studio 5000 v30+, swapping out SERCOS drives for CIP Motion, and completely rewiring the panel. A pre-tested 1768-L43 drop-in replacement card loaded with firmware v20 gets the line back online before the morning shift starts.

Specific Applications

• High-Speed Rotary Cutters: Manages electronic cam profiles across four SERCOS servo drives with sub-millisecond motion updates.
• Multi-Axis Packaging Machines: Controls web tension, flying cut-offs, and index conveyors simultaneously via 1768-M04SE interface cards.
• Automated Palletizers: Executes coordinate kinematics, handling layer-forming grippers while managing 1769 safety I/O modules across three remote banks.
• Chemical Dosing Skids: Leverages 2 MB memory to run PID loops, data logging algorithms, and web-page serving via the 1768-EWEB module.

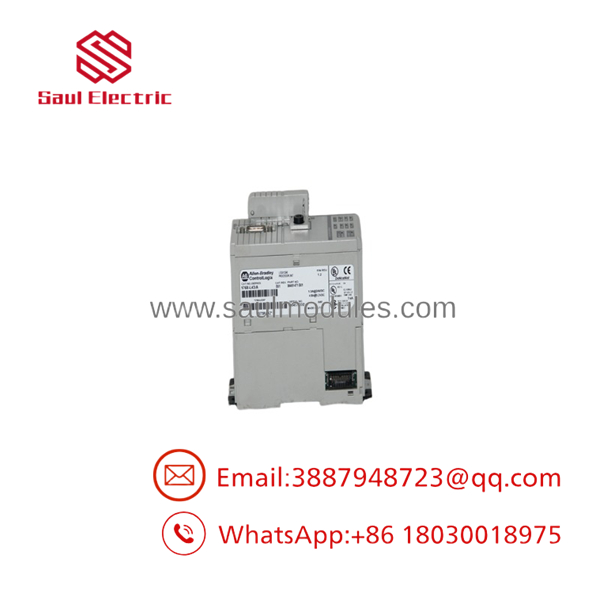

1768-L43

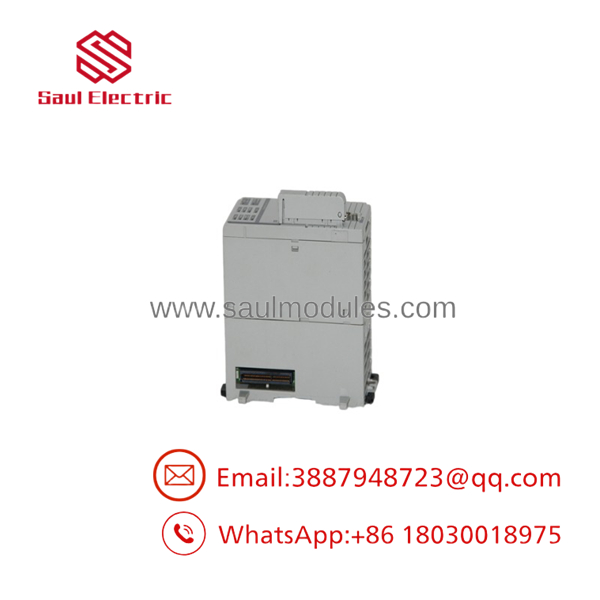

1768-L43

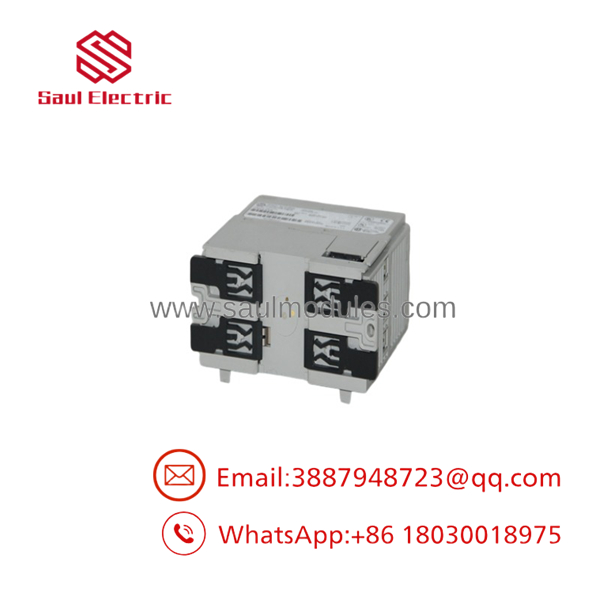

1768-L43

Transparency SOP: Quality Assurance & Testing

Every 1768-L43 processor undergoes comprehensive bench testing before entering our inventory:

1. Visual & Structural Verification: We check plastic guide rails, inspect the backplane bus pin headers for damage, and verify latching mechanics.
2. Left/Right Bus Handshake Test: The L43 is docked with a 1768-PA3 power supply, a 1768-ENBT Ethernet card on the left, and a bank of 1769-IQ16/OW8 modules on the right to verify dual-bus routing.
3. SERCOS Motion Validation: We link the unit to a 1768-M04SE SERCOS card and run a 4-axis motion test routine, monitoring drive sync logs for lost packet counts.
4. Firmware Flashing & Memory Check: We cycle firmware loading from v16 to v20, load test logic to max out memory allocation, and verify CompactFlash card read/write cycles.
5. Cold-Start Battery Drain Audit: The unit remains unpowered overnight to ensure the 1769-BA battery holds memory registers without dropping fault flags.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Exceed the 1768 Left-Side Module Limit: The 1768-L43 supports a MAXIMUM of two 1768 left-side expansion modules (e.g., one power supply and two comm/motion cards). Trying to slot three communication cards to the left of the CPU will prevent the system backplane from booting.
• ❗ Watch Firmware Limits (v20 Ceiling): The 1768-L43 processor cannot be upgraded beyond RSLogix 5000 / Studio 5000 Firmware Version 20. Do not try to flash v21+ onto this hardware; you will corrupt the onboard bootloader.
• ⚠️ Power Supply Placement: You CANNOT run a 1768-L43 using standard 1769 power supplies on the right side. The system requires a 1768-PA3 (AC) or 1768-PB3 (DC) power module mounted on the left side of the CPU to energize the main 1768 backplane.
• ❗ Match SERCOS Ring Speeds: When pairing the L43 with a 1768-M04SE card, double-check fiber optic transmission speeds (4 Mbps vs 8 Mbps) and drive node addresses in RSLogix 5000. Mismatched baud rates cause intermittent ring-break faults that look like failing hardware.

Frequently Asked Questions

Q: What is the main difference between the 1768-L43 and the 1768-L45?

Memory size and motion capacity. The 1768-L43 features 2 MB of user memory and supports up to 4 motion axes. The 1768-L45 offers 3 MB of memory and supports up to 8 motion axes. Both share the same physical form factor and 1768/1769 bus architectures.

Q: Can I use EtherNet/IP for motion on the 1768-L43?

Yes, but with limitations. The L43 supports analog motion cards (1769-M02AE) and SERCOS motion cards (1768-). While it can command drive motion over EtherNet/IP using explicit messaging or drive control profiles, it does NOT support modern CIP Motion (which requires 1769-L30ER or ControlLogix 1756-L7x controllers).

Q: How do I store my program so it isn’t lost when the battery dies?

Install an optional 1784-CF128 CompactFlash memory card into the slot under the front door. In RSLogix 5000, set the controller properties to load from Non-Volatile memory “On Power Up” or “On Corrupted Memory.”

Q: What happens if I connect more than 16 1769 I/O modules?

The 1768-L43 can address a maximum of 16 local 1769 Compact I/O modules split across up to 3 expansion banks (connected via 1769 expansion cables). Exceeding 16 modules causes an I/O configuration fault in the controller project.

Q: Is the 1768-L43 obsolete?

Yes, Rockwell Automation has placed the 1768 CompactLogix platform into End-of-Life (Discontinued) status. However, we maintain active, factory-tested new surplus and refurbished stock to keep legacy production lines running without full automation system overhauls.

Q: What warranty covers this surplus processor?

Every 1768-L43 controller we sell comes backed by a 12-month replacement warranty. If the unit experiences a hardware failure during normal operation within one year, we replace it immediately from our inventory or process a full refund.
