Description
Product Introduction
The Allen-Bradley 1769-IF8 is an 8-channel analog input module designed for CompactLogix and MicroLogix 1500 control systems. It acts as the primary sensory interface for continuous process variables, converting incoming signals from temperature transmitters, pressure transducers, and flow sensors into scaled digital integers or floating-point values.
Engineered for flexibility, each channel on the 1769-IF8 can be individually configured for current (0–20mA, 4–20mA) or voltage (±10V, 0–10V, 1–5V, 0–5V) operation using software parameters and onboard terminal wiring. Its delta-sigma analog-to-digital converter delivers 16-bit resolution, enabling tight feedback loops in industrial automation architectures.
Key Technical Specifications
| Parameter | Value |
| Input Channels | 8 Single-Ended or 8 Differential |
| Input Ranges (Current) | 0 to 20 mA, 4 to 20 mA |
| Input Ranges (Voltage) | ±10V, 0 to 10V, 0 to 5V, 1 to 5V |
| Resolution | 16 Bits (Unipolar and Bipolar) |
| Converter Type | Delta-Sigma A/D Converter |
| Response Time | 5 ms minimum per channel (filter dependent) |
| Input Impedance | Voltage Terminal: > 1 MΩ |
| Backplane Current (5VDC) | 120 mA |
| Power Distance Rating | 8 Modules (Must be mounted within 8 slots of power supply) |
| Removable Terminal Block | 1769-RTBN18 (18-pin screw terminal) |
| Programming Software | Studio 5000 Logix Designer / RSLogix 5000 / RSLogix 500 |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 4:00 AM on a freezing winter morning. A critical boiler feed skid loses its main pressure feedback because a technician accidentally shorted a 24V loop power supply wire directly into an analog input terminal on a legacy 1769-IF8 card. The analog value pegged at max integer (32767), causing the controller to trip the main fuel valve on a high-pressure fault. To be honest, trying to recalibrate fried analog channels on an old board under pressure is a waste of time. Having a pre-tested 1769-IF8 on the shelf lets you swap the module, transfer the 18-pin removable terminal block, and re-establish closed-loop PID control in under ten minutes.
Specific Applications
- Chemical Tank Level Monitoring: Reads 4–20mA hydrostatic level transmitters across eight bulk storage vessels simultaneously.
- HVAC Air Handler Systems: Monitors 0–10V signals from relative humidity and duct static pressure sensors to command variable frequency drives.
- Hydraulic Press Control: Captures fast-changing ±10V feedback signals from linear displacement transducers to govern press RAM positioning.
- Extruder Barrel Heating: Accepts 1–5V or 4–20mA converted signals from multi-zone temperature transmitters to execute tight PID heating algorithms.
Transparency SOP: Quality Assurance & Testing
We put every 1769-IF8 analog input module through strict multi-point bench testing before stocking:
- Inbound Visual & Bus Check: We check plastic enclosure tabs, inspect gold backplane header pins for wear, and verify the 18-pin terminal block seating.
- Backplane & Power Audit: The module is installed on a 1769 CompactLogix test rack alongside a 1769-PA4 power supply to verify 5VDC bus detection and Studio 5000 module handshakes.
- Precision Signal Calibration Check: Using a calibrated Fluke 754 process calibrator, we inject 4mA, 12mA, and 20mA signals into all 8 current channels, verifying digital word scaling accuracy down to single-digit LSB values.
- Voltage Sweep Test: We sweep 0V, 5V, and 10V across all channels in voltage mode to confirm high input impedance and eliminate cross-channel crosstalk.
- Burn-in & Thermal Stability Test: The card undergoes a 4-hour continuous data logging run under full 20mA current loop load to confirm zero thermal drift on signal readings.

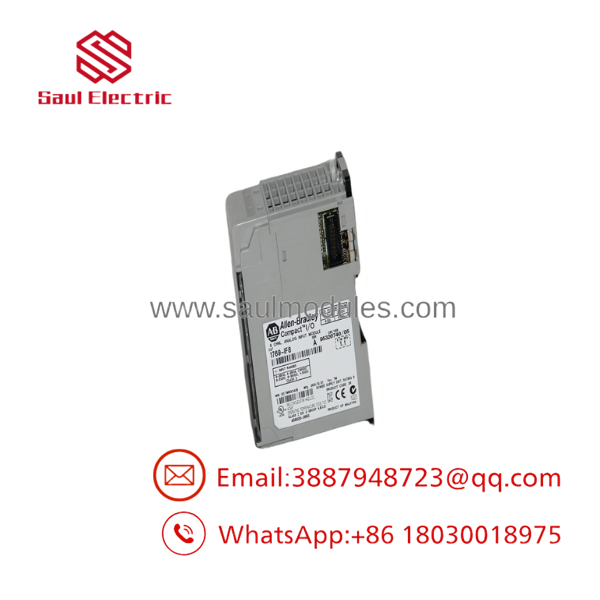

- 1769-IF8

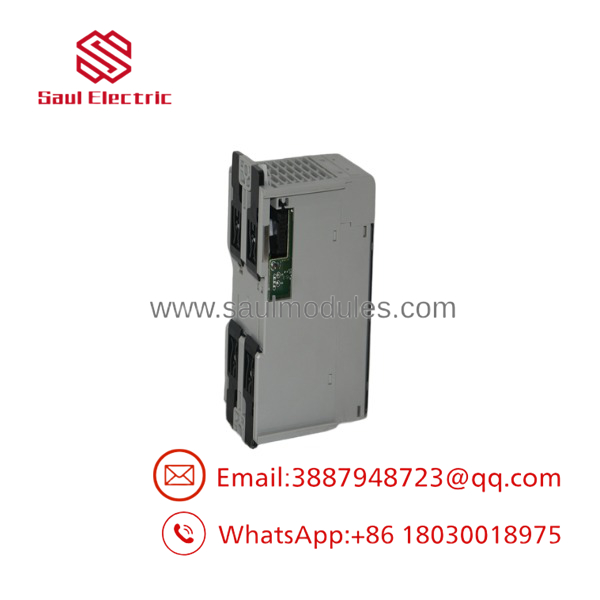

- 1769-IF8
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Forget the 250Ω Current Loop Jumper: When configuring a channel for 4–20mA or 0–20mA current, you must jumper the
i in(current input) andv/i in+(voltage/current input) terminals together on the terminal block. Forgetting this jumper leaves the internal 250Ω precision resistor out of the circuit, causing your 4-20mA sensor to read as 0. - ❗ Mind the Power Distance Rating of 8: The 1769-IF8 has a power distance rating of 8. Do not place it more than 8 slots away from a 1769 system power supply (like a 1769-PA2 or 1769-PA4). Installing it on slot 9 or beyond causes 5V backplane voltage drops that lead to sporadic analog-to-digital conversion errors or missing-module faults.
- ⚠️ Shield Grounding Rules: Always use shielded twisted-pair cabling for analog signal runs. Connect the cable shield to chassis ground at ONE end only (typically at the module end). Grounding both ends creates ground loops that introduce 60Hz AC ripple noise into your 16-bit analog process data.
- ❗ Differential vs. Single-Ended Common Mode Limits: If you wire channels in single-ended mode, all inputs share a common return (
Anlg COM). Make sure your field transmitters share the same DC ground potential; otherwise, ground potential differences will cause offset errors or blow out the channel multiplexer.
Frequently Asked Questions
Q: What is the main difference between the 1769-IF8 and the 1769-IF4?
Channel density and backplane power draw. The 1769-IF8 provides 8 analog input channels in a single slot width, whereas the 1769-IF4 provides only 4 channels. Both cards support voltage and current inputs with 16-bit resolution.
Q: Does the 1769-IF8 provide loop power for 2-wire transmitters?
No. The 1769-IF8 is a passive analog receiver module; it does not output 24VDC loop power to energize field sensors. You must supply external 24VDC power to wire 2-wire (loop-powered) 4–20mA transmitters in series with the input terminals.
Q: Can I mix voltage and current signals on the same 1769-IF8 card?
Yes. Each channel is individually configured in Studio 5000 / RSLogix software and wired independently on the terminal block. For example, you can configure Channels 0–3 for 4–20mA current loops and Channels 4–7 for 0–10V DC signals on the exact same card.
Q: Is the 1769-IF8 compatible with MicroLogix 1500 controllers?
Yes. The 1769-IF8 is fully supported on the MicroLogix 1500 platform (configured via RSLogix 500) as well as the CompactLogix platform (configured via Studio 5000 or RSLogix 5000).
Q: What warranty do you offer on new surplus and refurbished 1769-IF8 cards?
All 1769-IF8 modules sold by us come backed by a full 12-month replacement warranty. If a module suffers a hardware defect during standard operation within 365 days of purchase, we exchange it immediately from our ready stock or issue a full refund.
Q: How do I scale the raw analog values into engineering units?
In Studio 5000 (Logix Designer), open the 1769-IF8 module configuration tags and set the “High Engineering” and “Low Engineering” parameter fields (e.g., 0 to 100 PSI or 0 to 14 pH). The controller automatically scales the raw 16-bit integer data directly into floating-point engineering values for your ladder logic routines.
