Product Introduction & Engineering Value
Power supply failures rarely begin with a complete shutdown. More often, engineers encounter intermittent I/O communication faults, unexpected processor major faults, or analog modules dropping offline after additional hardware has been installed. In many cases, the controller is functioning correctly—the power budget is not.
The Allen-Bradley 1769-PB4 is designed to provide 24V DC operating power for Compact I/O systems. It distributes regulated backplane power to local I/O modules while maintaining the electrical requirements specified for the 1769 platform. Selecting the correct power supply is just as important as selecting the controller because every installed module contributes to the overall current consumption.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-PB4 |
| Product Family | 1769 Compact I/O |
| Product Type | DC Power Supply Module |
| Input Voltage | 24V DC Nominal |
| Input Voltage Range | 19.2…31.2V DC |
| Supported I/O Platform | 1769 Compact I/O / CompactLogix |
| Mounting | DIN Rail or Panel |
| Power Supply Distance Rating | Up to 8 I/O modules |
| Installation Position | Within the Compact I/O assembly |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Enclosure | Open-style industrial component |
| Compatible Expansion Modules | 1769 digital, analog, specialty, and communication modules |
Technical characteristics are based on Rockwell Automation Compact I/O specifications.
Field Application & The “Trench” Experience
A machine builder expanded a palletizing cell by adding several analog and high-speed I/O modules to an existing CompactLogix system. The PLC program downloaded successfully, but random I/O faults appeared every few hours, particularly when multiple outputs energized simultaneously.
The maintenance team initially replaced communication modules without success. After reviewing the system power budget, they discovered the original power supply had exceeded its available backplane capacity. Installing a properly sized 1769-PB4 restored stable operation, and the intermittent communication alarms disappeared without changing a single line of ladder logic.
Typical application scenarios include:
- Packaging lines with expanding Compact I/O stations.
- Material handling systems requiring distributed digital and analog modules.
- Water treatment control panels using CompactLogix processors with multiple local I/O modules.

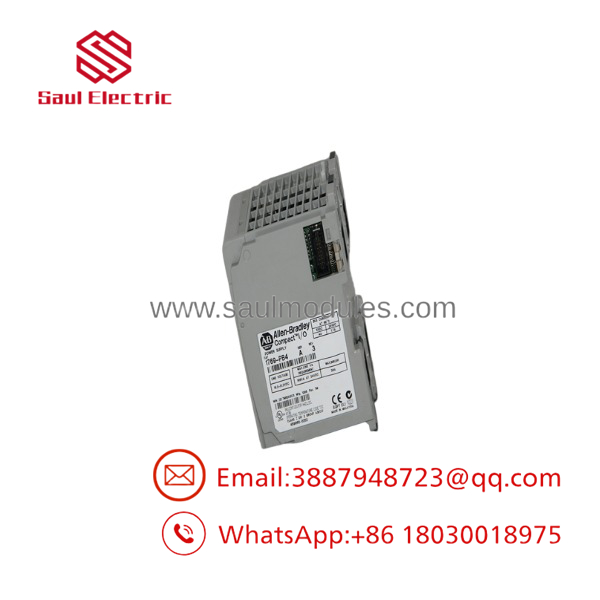

- 1769-PB4

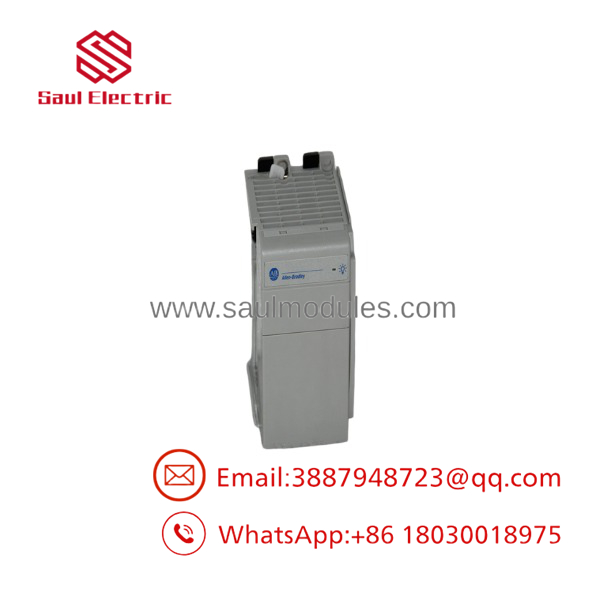

- 1769-PB4

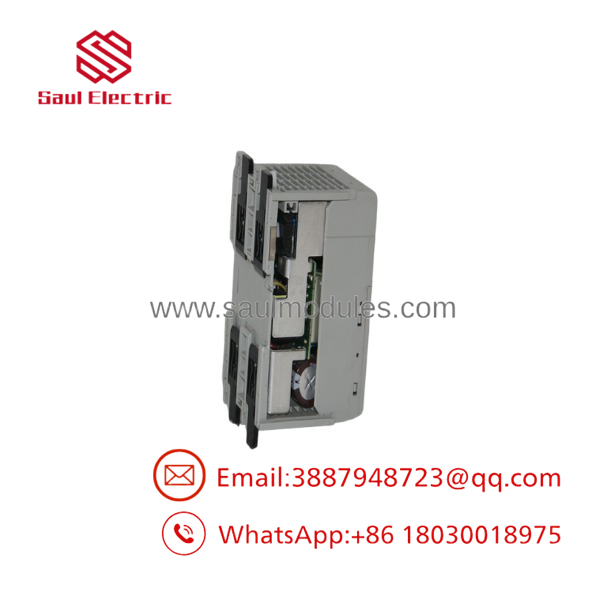

- 1769-PB4
Transparency SOP: QA & Testing
Every 1769-PB4 power supply completes a documented verification procedure before shipment.
- Confirm the catalog number, hardware revision, and manufacturer markings.
- Inspect the housing, terminal block, and CompactBus connector for physical damage.
- Verify input voltage operation using a regulated 24V DC supply.
- Measure backplane output stability under simulated system loading.
- Install the unit in a Compact I/O test chassis and confirm successful controller and I/O startup.
- Record inspection results before classifying the unit as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ Don’t Size the Power Supply by Module Count Alone
Two Compact I/O systems with the same number of modules can have very different power requirements. High-speed counters, analog modules, and communication adapters generally consume more backplane current than standard digital I/O.
⚠️ Observe the Power Supply Distance Rating
The 1769-PB4 supports a maximum power supply distance rating of eight modules. Exceeding this limit can produce intermittent communication faults even when the total current appears acceptable.
PRO TIP: Before replacing a suspected power supply, calculate the total 5V DC and 24V DC backplane current required by every installed module. Many “failed” power supplies are actually operating beyond their intended capacity after years of system expansion.
Dynamic FAQ
Q1. What is the function of the 1769-PB4?
The 1769-PB4 supplies regulated backplane power to CompactLogix and 1769 Compact I/O modules using a 24V DC input source.
Q2. Which controllers are compatible with the 1769-PB4?
It is designed for 1769 Compact I/O systems used with CompactLogix and other compatible Rockwell Automation controllers supporting the 1769 platform.
Q3. How many modules can it support?
The module has a power supply distance rating of up to eight I/O modules. Actual system capacity depends on the total backplane current required by the installed hardware.
Q4. Can the 1769-PB4 replace a failed 1769-PB2?
In many systems, yes, provided the electrical specifications, mounting arrangement, and application requirements are verified. Review the overall system power budget before making a substitution.
Q5. How is New Surplus inventory verified?
Each unit undergoes visual inspection, input power verification, backplane output testing, functional startup in a Compact I/O chassis, and documentation review before shipment.
Q6. What is the most common installation mistake?
The most frequent issue is overlooking the cumulative backplane current requirements of newly added I/O modules. Engineers often verify the input voltage but forget to confirm that the power supply can support the expanded Compact I/O assembly under full operating conditions.
