Description
Product Introduction & Engineering Value
Power supplies in legacy PLC systems are often overlooked because they operate quietly for years. When they begin to fail, the symptoms rarely point directly to the source. Random processor faults, intermittent I/O communication errors, or unexpected system resets frequently lead engineers to replace CPUs or I/O cards before checking the power supply.
The Allen-Bradley 1771-PA is an external power supply designed for the 1771 PLC platform. It converts either 120V AC or 220V AC input power into regulated 5V DC for the chassis backplane. Unlike later chassis-integrated supplies, the 1771-PA is installed externally and powers a single 1771 chassis, making it suitable for PLC-2, PLC-5, and compatible 1771 I/O systems.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1771-PA |
| Product Family | 1771 PLC System |
| Product Type | External AC Power Supply |
| Nominal Input Voltage | 120/220V AC |
| Input Voltage Range | 97–132V AC or 195–264V AC |
| Input Frequency | 47–63 Hz |
| Maximum Real Input Power | 108 W |
| Maximum Apparent Input Power | 176 VA |
| Backplane Output Voltage | 5V DC |
| Maximum Backplane Output Current | 16 A |
| Fuse | 3 A, 250 V, Normal-Blow |
| Supported Chassis | One 1771 I/O Chassis |
| Connection Cables | 1771-CP1, 1771-CP2, 1771-CP3 |
| Installation | Stand-alone, panel mounted |
| Enclosure Requirement | Open-type device; install in a suitable industrial enclosure |
Technical data is based on published Allen-Bradley product specifications.
Field Application & The “Trench” Experience
A pulp and paper mill reported sporadic processor faults on an aging PLC-5 system that had operated reliably for more than twenty years. The maintenance team replaced several analog modules because the faults appeared during heavy production loads, but the shutdowns continued.
During a scheduled outage, technicians monitored the chassis backplane voltage while the machine accelerated to full production speed. The external 1771-PA was no longer maintaining a stable 5V DC output under peak load. Replacing the power supply restored normal operation immediately, eliminating nuisance processor faults without changing the control program.
Typical applications include:
- Continuous paper machine control using large PLC-5 local racks.
- Automotive body assembly lines operating multiple 1771 remote I/O chassis.
- Steel rolling mill auxiliary systems requiring high-density digital and analog I/O.

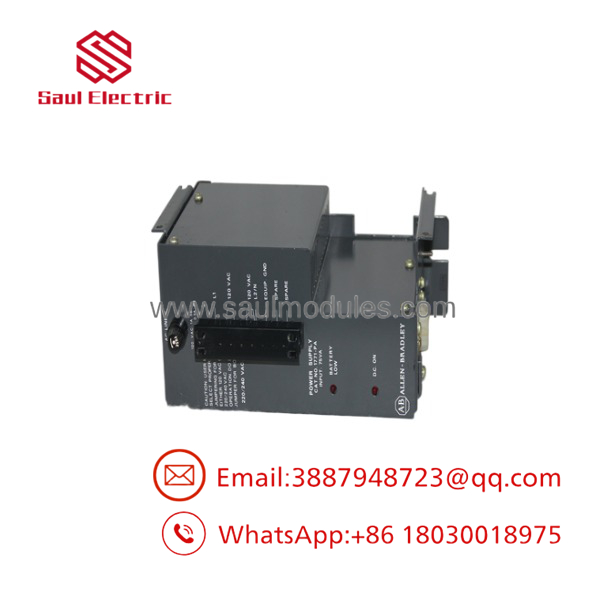

- 1771-PA

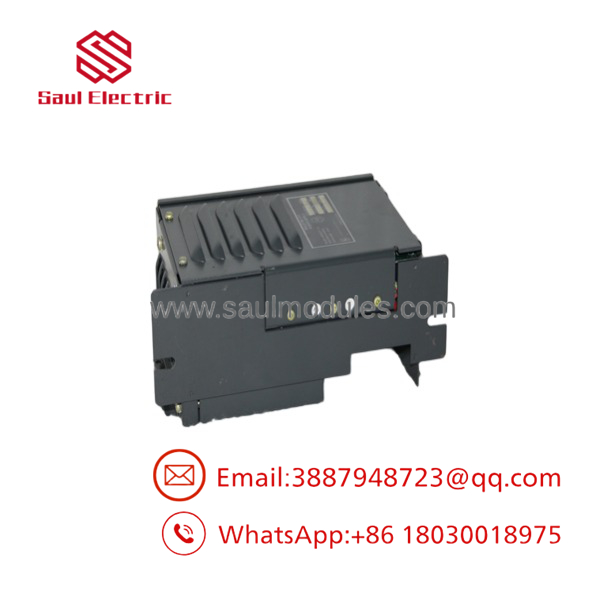

- 1771-PA

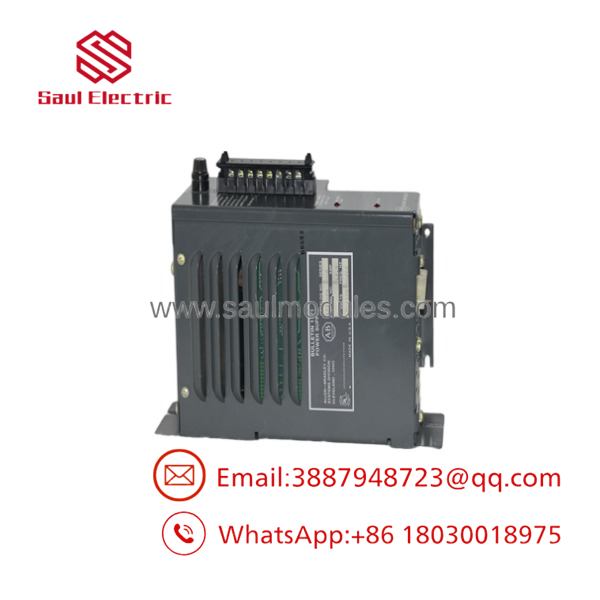

- 1771-PA
Transparency SOP: QA & Testing
Every 1771-PA shipped from inventory completes a documented functional inspection.
- Verify catalog number, serial identification, and enclosure condition.
- Inspect the AC input terminals, output cable connectors, cooling components, and mounting hardware.
- Apply both supported AC input voltages using calibrated laboratory equipment.
- Measure 5V DC backplane output under multiple electronic load conditions.
- Install the supply on a reference 1771 chassis to verify stable processor startup and continuous operation.
- Record voltage regulation, ripple measurements, and thermal performance before releasing the unit as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ One Power Supply Means One Chassis
The 1771-PA is designed to power only one 1771 chassis. Attempting to feed multiple chassis from a single unit can produce unstable operation and voltage drop.
⚠️ This Unit Is Not Intended for Parallel Operation
Unlike certain later 1771 power supply models, the 1771-PA should not be connected in parallel with another 1771-PA. Doing so can damage equipment or lead to processor memory loss.
PRO TIP: Before replacing the power supply, measure the 5V DC backplane voltage while every analog card, communication module, and processor is operating simultaneously. A supply that appears healthy during idle conditions may become unstable only when the chassis reaches its maximum current demand.
Dynamic FAQ
Q1. What is the primary function of the 1771-PA?
The 1771-PA converts 120/220V AC input into regulated 5V DC backplane power for a single 1771 I/O chassis.
Q2. Which PLC platforms use the 1771-PA?
The power supply is commonly used with PLC-5, PLC-2, compatible 1771 adapters, and other legacy 1771 control systems.
Q3. What is the maximum backplane output capacity?
The module supplies up to 16 A at 5V DC, allowing it to support large 1771 chassis populated with processors and multiple I/O modules.
Q4. Can two 1771-PA power supplies operate in parallel?
No. The 1771-PA is not designed for parallel connection. Each power supply should power only one chassis.
Q5. How is New Surplus inventory verified?
Every unit undergoes visual inspection, AC input verification, full-load voltage regulation testing, backplane performance validation, and operational testing with a populated 1771 chassis before shipment.
Q6. What causes the most common service issues?
Most service calls are traced to overloaded chassis, deteriorated electrolytic capacitors from long-term operation, poor ventilation, or loose power connections rather than processor failures. Measuring the regulated 5V DC output under operating load should always be one of the first diagnostic steps.
