Allen-Bradley 1785-L80C15 PLC-5/80C ControlNet Processor

Product Introduction & Engineering Value

Large legacy manufacturing facilities often depend on deterministic communications between dozens of remote racks. Replacing only the processor while preserving the existing network architecture can significantly reduce project cost and commissioning time.

The Allen-Bradley 1785-L80C15 is the highest-performance member of the PLC-5 ControlNet family. Designed for ControlNet Phase 1.5, it combines 100K words of application memory with high-capacity distributed I/O support. The processor is intended for complex process control and large machine automation systems where ControlNet, Remote I/O, and Data Highway Plus networks operate simultaneously.

Technical Specifications

Field Application & The “Trench” Experience

A petrochemical blending unit experienced intermittent production interruptions after a processor failure halted communications across multiple ControlNet nodes. Because the installation contained dozens of distributed I/O racks, replacing the entire control platform during the outage was not practical.

Maintenance engineers installed a tested 1785-L80C15, restored the application from EEPROM, and verified every scheduled ControlNet connection before restarting production. The existing field wiring, ControlNet media, and Remote I/O infrastructure remained unchanged, allowing the plant to resume operation within the planned maintenance window.

Typical applications include:

• Continuous polymer reactor control using distributed ControlNet I/O.
• High-speed automotive body assembly with synchronized material handling.
• Power generation balance-of-plant systems requiring extensive Remote I/O networks.

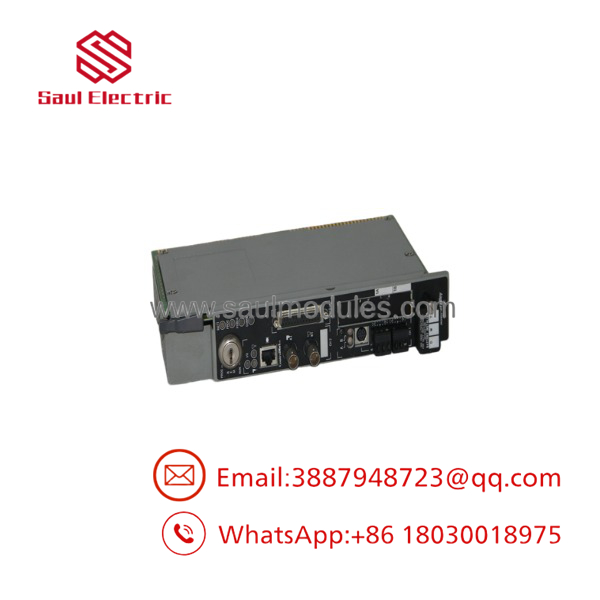

1785-L80C15

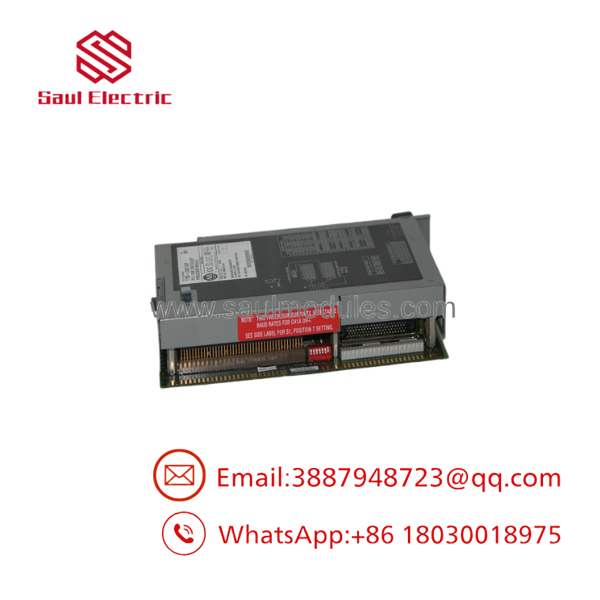

1785-L80C15

Transparency SOP: QA & Testing

Before shipment, every processor completes a documented validation procedure.

1. Verify catalog number, hardware revision, and product identity.
2. Inspect connectors, ControlNet ports, communication interfaces, and processor housing.
3. Install the processor in a certified 1771 test chassis.
4. Execute memory diagnostics, EEPROM verification, and processor self-tests.
5. Confirm ControlNet scheduling, DH+ communication, Remote I/O operation, and serial communications.
6. Record all functional results before the processor is released as New Surplus or Refurbished.

The Veteran’s Tech Trap Guide

⚠️ Verify the ControlNet Phase Before Replacement

The 1785-L80C15 is a ControlNet Phase 1.5 processor. Earlier 1785-L80C controllers use Phase 1.25 hardware and are not direct drop-in replacements without verifying firmware and network compatibility.

⚠️ Don’t Restore the Program Without Checking Scheduled Connections

ControlNet scheduling information is just as important as the ladder logic. A restored application with mismatched ControlNet scheduling can leave I/O nodes offline even though the processor enters RUN mode.

PRO TIP: Before removing the original processor, archive the PLC program, EEPROM contents, firmware revision, ControlNet schedule, node address, and communication parameters. These details typically determine whether startup takes minutes or several hours.

Dynamic FAQ

Q1. What is the memory capacity of the 1785-?

The processor provides 100K words of user memory, making it suitable for large PLC-5 applications with extensive control logic and data tables.

Q2. Which industrial networks are supported?

The 1785- supports ControlNet Phase 1.5, Data Highway Plus (DH+), Remote I/O, and configurable serial communications.

Q3. How many I/O points can this processor manage?

The controller supports up to 3,072 inputs and 3,072 outputs, with support for as many as 92 Remote I/O racks, depending on the system configuration.

Q4. Is the 1785- still manufactured?

No. Rockwell Automation has discontinued the , and it is classified as an Engineering Replacement product. Existing installations are typically maintained using New Surplus inventory or professionally refurbished processors.

Q5. How is New Surplus inventory verified?

Every processor undergoes visual inspection, processor diagnostics, memory retention testing, communication verification, ControlNet functional testing, and operation in a reference PLC-5 chassis before shipment.

Q6. What is the most common mistake during replacement?

The most frequent issues are installing a processor with the wrong ControlNet phase, failing to restore the original network schedule, or overlooking firmware compatibility. Verifying these items before commissioning helps prevent extended downtime and unnecessary troubleshooting.
