Allen-Bradley 2711-B6C8 PV600 Keypad Touch Color HMI

Description

Product Introduction

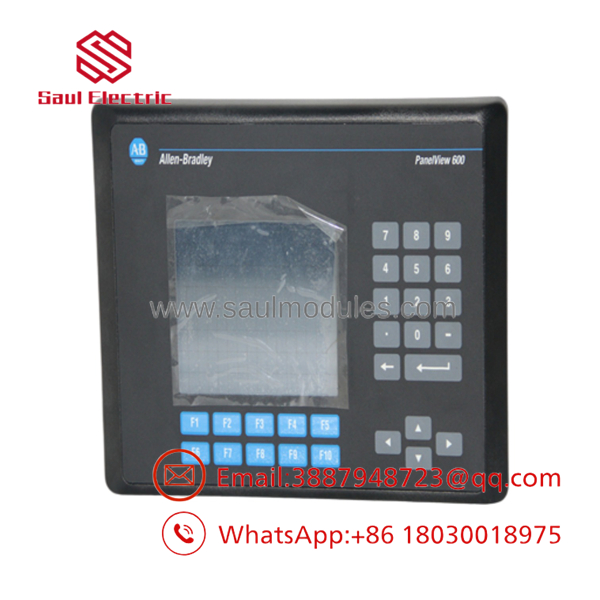

The Allen-Bradley 2711-B6C8 is a legacy PanelView 600 graphic terminal configured with dual operator input modes—both a tactile keypad and a touch screen. Operating on 85-264V AC power, this terminal features a 5.5-inch active-matrix color display designed to show process diagnostics, alarm banners, and system trends. It communicates over Data Highway Plus (DH+) networks while including an auxiliary RS-232 printer port for alarm logging.

Plants running legacy PLC-5 or SLC 5/04 architectures depend on the 2711-B6C8 to keep critical equipment running without forcing expensive PLC system upgrades. The dual Keypad/Touch combination allows operators to navigate screen menus quickly on the touch surface while using physical function keys (F1-F10) for primary actions like start/stop commands in harsh, gloved environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A backlight dies on an aging press line HMI during a night shift. The screen goes dark, leaving the operator blind to hydraulic pressures and motor status. Production grinds to a halt because the PLC requires operator reset confirmations on the display to cycle the line. Rewriting the panel layout for a modern PanelView Plus requires software conversion, mounting plate adaptations, and network bridge hardware that takes days to source. Swapping in a direct 2711-B6C8 replacement restores the physical drop-in footprint and DH+ baud rate in under an hour.

• Legacy Automotive Stamping – Press Control Operator Panels – Connects to SLC 5/04 racks via DH+ to display press strokes, die positions, and safety interlocks.
• Chemical Batch Processing – Recipe Management & Alarm Logging – Uses the dual input setup to enter batch parameters on screen and output hardcopy alarm logs through the RS-232 printer port.
• Water Treatment Plants – Distributed Pump Station Monitoring – Connects multiple remote pump panels over a long-distance DH+ trunk line.
• Food & Beverage Packaging – High-Glove Operation Lines – Physical function keys permit immediate motor start/stop inputs even when operators wear heavy protective gloves.

2711-B6C8

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.

1. Inbound Inspection: Every terminal undergoes a visual check for cracked screen glass, worn membrane keypads, damaged bezel gaskets, and backplane port stress.
2. Live Rig Testing: The 2711-B6C8 is powered up with 120V AC and linked via DH+ (3-pin Phoenix connector) to a live SLC 5/04 rack running PanelBuilder32 test firmware.
3. Electrical & Input Checks: We test every touch grid zone and cycle through function keys F1 through F10 to confirm physical contact response.
4. Display & Backlight Burn-In: The unit undergoes a burn-in test to verify display brightness, color balance, and backlight stability without screen flickering.
5. Final QC & Anti-static Packaging: The unit is cleaned, sealed in static-shielding material with screen face protection, and packaged in custom foam boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ DH+ Node Address & Baud Rate Mismatch: Before dropping in a new terminal, check the DH+ node address and baud rate set in the original unit. PanelView 600 units won’t auto-negotiate network speeds; if your SLC is running at 230.4k baud and the HMI defaults to 57.6k, communication will fail immediately.
• ❗ Touch Screen Calibration Offset: If operator presses trigger adjacent buttons, do not replace the unit right away. Hold the lower-left corner of the touch screen during power-up to enter Terminal Config Mode, then run the touch screen alignment routine.
• ⚠️ AC Power Terminal Block Wiring: Double-check your incoming power leads on the rear terminal block. Connecting 120V AC to a DC-powered variant (like a 2711-B6C8L1) will destroy the internal power supply instantly. The 2711-B6C8 takes AC power, but always verify voltage ratings printed on the side label before applying line power.
• ❗ Memory Card Formatting Limits: If you use ATA memory cards to transfer .PVA runtime files, use low-capacity PCMCIA cards formatted in FAT16 (typically 2MB to 64MB). Modern high-capacity SD cards with PCMCIA adapters will fail to load in PanelBuilder32 environments.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I convert my PanelBuilder32 (.PVA) file to work on a modern PanelView Plus HMI?

A: Yes, FactoryTalk View Studio Machine Edition includes an import tool for PanelBuilder32 files. However, display aspect ratios, font scaling, and network communication tags (like DH+ to EtherNet/IP) require manual re-engineering and hardware migration converters.

Q: What is the difference between the 2711- and the 2711-T6C8?

A: The “B” in 2711- indicates a dual Keypad + Touch interface. The “T” in 2711-T6C8 indicates a Touch-only interface without physical function keys on the outer bezel.

Q: Is the backlight inside the 2711- field replaceable?

A: Yes. The 2711- uses a replaceable CCFL backlight bulb assembly (Allen-Bradley catalog number 2711-NC13). You can replace it from the rear of the module without opening the main enclosure housing.

Q: Can the RS-232 port on this module be used to download application logic from a PC?

A: The RS-232 port on a 2711- is hardcoded for printer output (alarm and trigger logging). Application runtime files must be downloaded over the DH+ network or transferred using a compatible memory card.

Q: How do you verify the quality of legacy surplus HMIs that are no longer manufactured by Allen-Bradley?

A: Every unit is sourced through vetted industrial channels, fully disassembled for internal component inspection, power-tested on an active DH+ network, and backed by our 12-month replacement warranty from the invoice date.
