Allen-Bradley H-4030-P-H00AA Low Inertia Rotary Servo Motor

Description

Product Introduction

The Allen-Bradley H-4030-P-H00AA is a high-performance, low-inertia brushless AC servo motor built for high-duty cycle applications requiring rapid acceleration and precise point-to-point motion. Operating at 230V AC with a maximum rated speed of 4000 RPM, this Frame 4030 motor features neodymium-iron-boron (NdFeB) permanent magnets to achieve high torque density in a compact frame.

Designed to interface seamlessly with Allen-Bradley Ultra 100 (1398-DDM-019), Ultra 200 (1398-DDM-020), and Ultra Plus positioning drives (1398-PDM-20/25), the motor comes equipped with an internal 2000-line optical quadrature encoder for position feedback. Heavy-duty MS military-style circular connectors provide secure power and feedback hookups, while its IP65 capability (when fitted with a shaft seal kit) protects internal windings in tough plant environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A high-speed pick-and-place gantry on a packaging line drops offline due to continuous position lag faults on its vertical axis. The Ultra 200 drive reports a resolver/encoder feedback loss after an operator sprayed down the cell without verifying the motor shaft seal integrity. Fluid ingress through the unsealed front bearing contaminated the optical encoder disk. Replacing the motor with an exact match H-4030-P-H00AA—along with installing a fresh shaft seal kit—restores axis positioning accuracy and eliminates hours of zero-point realignment and servo drive retuning.

• High-Speed Packaging & Indexing: Powers rotary star wheels, feeder belts, and flying cut-off knives where rapid speed changes and low rotor inertia are critical.
• CNC & Precision Machining Auxiliary Axes: Drives ball screws and rotary tables requiring precise 2000-line optical encoder position tracking.
• Material Handling & Diverter Gates: Executes fast point-to-point positioning commands on automated sorting systems.
• Converting & Printing Equipment: Maintains precise web tension control and registration alignment under continuous 230V AC operational loads.

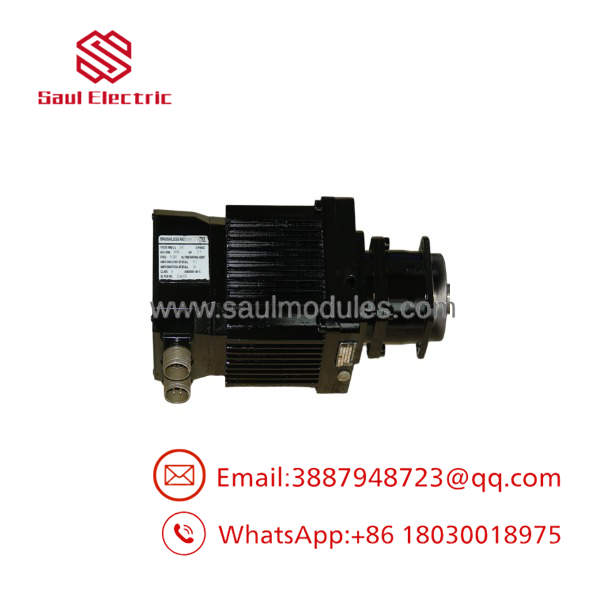

H-4030-P-H00AA

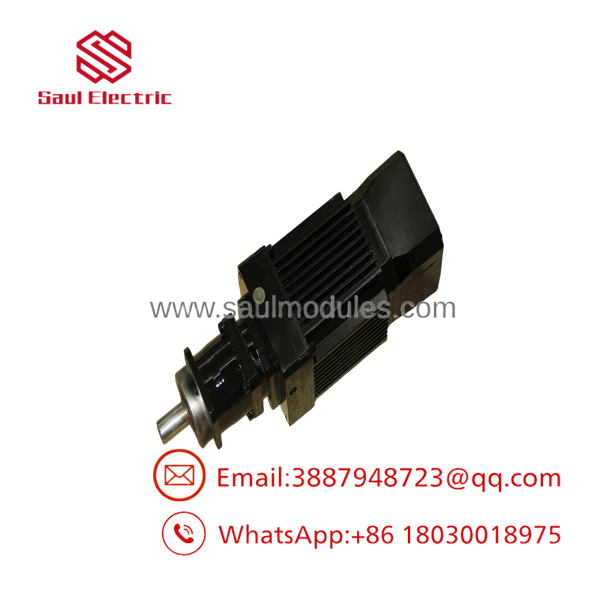

H-4030-P-H00AA

Transparency SOP: Quality Assurance & Testing

1. Mechanical & Visual Inspection: The motor shaft, keyway, mounting flange, and MS connector pins are inspected for wear, shaft runout, bearing play, or thermal discoloration.
2. Winding Insulation & Resistance Checks: Phase-to-phase resistance (2.0\ \Omega \pm 10\%) and phase-to-ground megohmmeter insulation resistance tests are performed to verify coil integrity.
3. Back-EMF & Encoder Verification: Mounted on a test stand, the motor is rotated to check balanced sinusoidal back-EMF waveform symmetry and continuous 2000-line quadrature encoder feedback signal stability.
4. Closed-Loop Closed-Drive Test: Linked to a live Ultra 100/200 drive running MotionView / RSLogix test profiles, verifying smooth 4000 RPM acceleration curves, holding position stability, and zero thermal runaway.
5. Final Cleaning & Secure Packaging: Cleaned, shaft protection sleeve installed, wrapped in corrosion-inhibiting material, and suspended in heavy-duty foam casing for safe transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Shaft Seal Requirement for IP65: The H-4030-P-H00AA is rated at IP40 from the factory. If your installation involves oil mist, liquid spray, or heavy dust, you must install the optional shaft seal kit (Catalog 0041-5058) and use environmentally sealed MS cables to achieve an IP65 ingress rating.
• ❗ Encoder Line Count Drive Setting: The “H” feedback code designates a 2000-line optical encoder (8000 quadrature counts/rev). Ensure your drive parameters in MotionView / Ultraware match this resolution; selecting a 1000-line or resolver motor model in software will cause violent motor runaway or immediate overspeed faults.
• ⚠️ Power Wiring Phase Sequence: Reversing motor power phases U, V, and W (pins A, B, C on the MS power connector) will cause the motor to run backward relative to the encoder, triggering an instant drive feedback error or runaway condition.
• ❗ No Holding Brake Caution: The “-00-” code in the part number indicates No internal brake. If replacing a motor on a vertical Z-axis, ensure the axis has an external mechanical brake or safety holding mechanism to prevent vertical load back-driving when power is disabled.

Frequently Asked Questions (FAQ)

Q: What drives are compatible with the Allen-Bradley H-4030-P-H00AA? A: It is natively supported by Allen-Bradley Ultra 100 (1398-DDM-019), Ultra 200 (1398-DDM-020), Ultra Plus (1398-PDM-20/25), and Kinetix series drives configured for 230V AC brushless servo operation with incremental encoder feedback.

Q: What is the difference between H-4030-P-H00AA and H-4030-P-H04AA? A: The “H00” model has no holding brake, whereas the “H04” model includes an integrated 24V DC mechanical holding brake.

Q: Is the original H-Series servo motor still manufactured by Allen-Bradley? A: Rockwell Automation has discontinued the legacy H-Series motors. However, direct form-fit-function replacement motors (manufactured by Elwood Corporation) and fully tested surplus units are available to maintain existing machines without re-engineering.

Q: What is the connector type used for power and feedback? A: The motor uses military-style threaded MS connectors (MS3106/MS3108 series) with a 12 AWG cable fit for power and 16 AWG for feedback.

Q: What warranty is provided on surplus/reconditioned units? A: All New Surplus and fully reconditioned H-4030-P- motors are backed by a full 12-month replacement warranty from the invoice date.
