Product Introduction
The Applied Materials 0100-71443 is an industrial-grade process interface board engineered for legacy AMAT semiconductor fabrication equipment, including Centura, Endura, and Producer tool platforms. Positioned within the main VME hardware cage, this board functions as a high-speed communication bridge, routing real-time feedback from chamber instrumentation directly to the tool’s central controller.
Designed for severe continuous-duty cleanroom environments, the 0100-71443 incorporates onboard signal conditioning and high-density logic execution. By offloading local sensor handshaking and actuation timing from the primary system CPU, it prevents communication bottlenecks during complex wafer processing sequences like plasma etching, thin-film deposition, and load lock cycling.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Applied Materials (AMAT) |
| Part Number | 0100-71443 |
| Form Factor | 6U VME Standard Eurocard (Single-Slot) |
| System Architecture | AMAT VMEbus Control System / Tool Host Interface |
| Interconnects | High-Density DIN 41612 P1/P2 Connectors |
| Operating Temperature | 0°C to +55°C Industrial Ambient |
| Power Requirements | +5VDC, ±12VDC (VMEbus Power Rail Draw) |
| Diagnostic Features | Onboard LED Status Matrix (Power, Activity, Fault) |
| Compliance | RoHS Compliant / OEM Standard Specifications |
Application Scenarios & The “Trench” Experience
In a high-throughput 200mm or 300mm wafer fab, a single interface board failure causes a catastrophic sequence of events: the host controller loses signal integrity, the tool triggers an immediate interlock fault, and wafers in transit get locked inside vacuum chambers. Troubleshooting legacy VME control racks under pressure requires proven drop-in hardware—not experimental upgrades that force software re-qualification.
- Semiconductor – Physical Vapor Deposition (PVD): Routes critical target bias, magnetron positioning, and shield thermal data to the main rack.
- Semiconductor – Plasma Etch Systems: Handles fast-acting interlock signals and gas panel valve feedback loops.
- Substrate Automation & Wafer Handling: Interlocks robotics motion controls with load-lock pressure sensors to ensure smooth transfer execution.
During an unscheduled shift shutdown on a 200mm Centura cluster tool, the system repeatedly dropped communication with Chamber B, throwing unrecoverable VME timeout errors. Field diagnostics isolated the failure to a degraded bus driver chip on the original 0100-71443 interface PCB. Swapping the board with a pre-tested, jumper-verified 0100-71443 unit restored backplane telemetry immediately, enabling chamber vacuum pump-down and recipe re-start in under an hour.
Transparency SOP: Quality Assurance & Testing
We understand that cleanroom hardware must work right out of the box. Every Applied Materials 0100-71443 undergoes a stringent bench inspection workflow before shipment:
- Microscopic Visual Inspection: Complete trace-level check under optical magnification to verify no thermal discoloration, cracked solder joints, or damaged surface-mount components.
- Backplane Pin Integrity: Inspection of all P1 and P2 connector gold pins for wear, alignment, oxidation, or bent contacts.
- Powered Power-Rail Check: Insertion into a powered 6U VME test chassis to confirm steady onboard voltage regulation and clock generation.
- Functional Comm Handshake: Rigorous execution of bus communication loops and local logic responses to ensure zero signal drift or dropped packets.
- Cleanroom ESD Preparation: Ultrasonic contact cleaning, protective pin guards installation, and heat-sealing in static-shielding moisture-barrier bags.

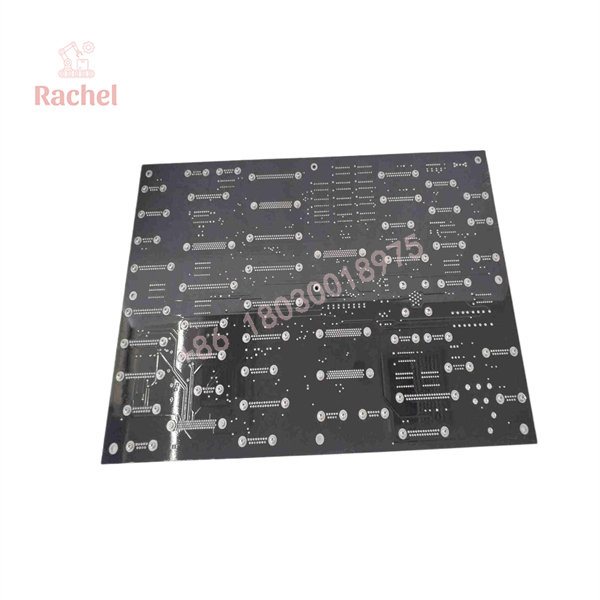

0100-71443

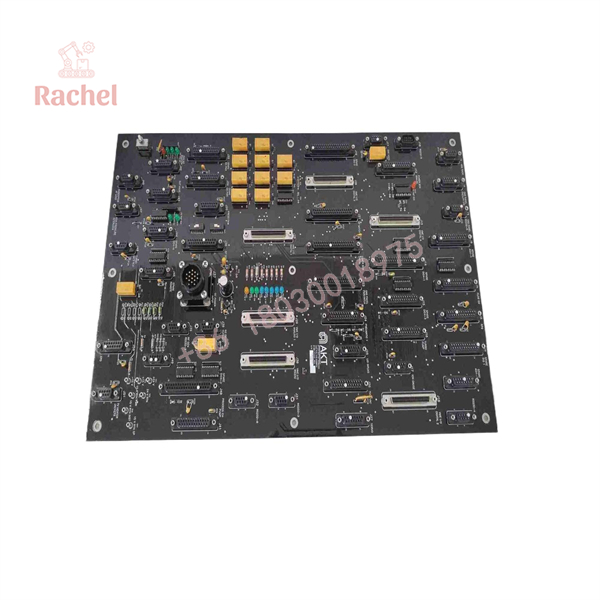

0100-71443
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Power Off Before Pulling the Card: Standard VMEbus backplanes do not feature hot-swap protection for data lines. Pulling or inserting the 0100-71443 while the VME cage is powered will create inductive transients, killing transceivers on this board and adjacent cards in the rack.
❗ Mirror the OEM Jumper Configurations: Before placing the replacement board into the chassis, lay it next to your old card. AMAT configures address spaces, interrupt vectors, and bus priority using physical board jumpers. If you install the replacement with default jumper settings, the host software will fail to assign the card slot.
⚠️ Watch for ESD Pin Destruction: Semiconductor controller boards feature high-density CMOS logic that is extremely susceptible to static charges. Always wear a grounded wrist strap attached to chassis earth before opening the ESD bag or handling the board edges.
Frequently Asked Questions
Q: Is the AMAT 0100-71443 directly hot-swappable?
A: No. The VME backplane architecture requires a complete system power-down before removing or inserting this card to avoid electrical damage.
Q: Do I need to load software onto the board after replacing it?
A: No firmware download is typically necessary for the 0100-71443 itself. As long as your hardware revision and jumper settings match the original board, the tool host CPU will automatically recognize and control the card on boot.
Q: Why source New Surplus 0100-71443 boards instead of direct OEM?
A: Applied Materials has marked many legacy platform components as End of Life (EOL), resulting in long factory lead times or total unavailablity. Purchasing tested surplus provides immediate inventory at a lower cost without risking extended line stoppage.
Q: How can I confirm if my existing 0100-71443 board has failed?
A: Check the front-panel status LEDs. If the fault LED remains illuminated while power rail voltages are within spec, or if system software reports persistent VME bus timeout errors for that specific slot, the board is likely faulty.
Q: What warranty comes with this replacement board?
A: All our surplus and pre-tested AMAT boards come backed by a comprehensive 12-month functional replacement warranty.
