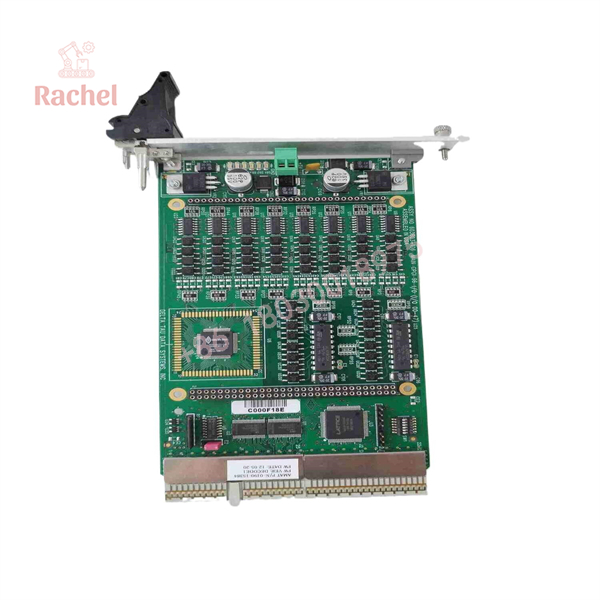

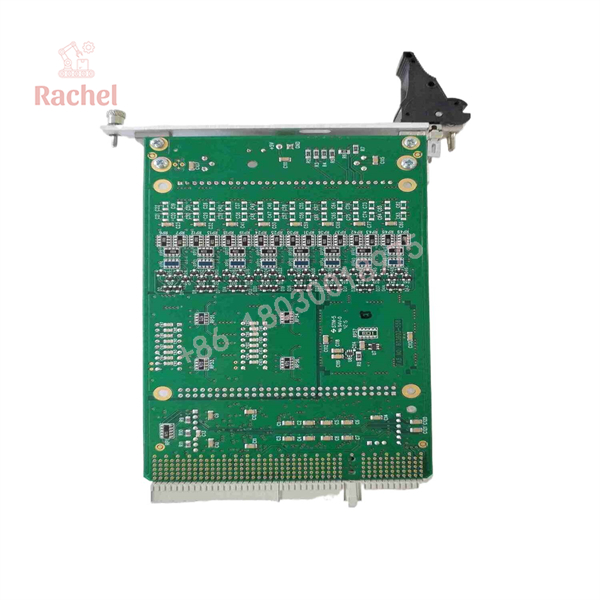

The Applied Materials 0190-15384 is a high-reliability printed circuit board assembly built for AMAT 300mm wafer processing platforms. Mounted directly inside the tool’s main signal distribution rack or mainframe card cage, this card handles low-latency communication between the supervisory controller, mass flow controllers (MFCs), and vacuum pressure feedback loops.
Unlike standard off-the-shelf industrial I/O boards, the 0190-15384 is engineered to tolerate intense electromagnetic interference (EMI) generated by high-power RF matching networks. Replacing a drifting or corrupted control card with this module restores precise timing synchronization across your chamber valves, preventing gas phase micro-loading issues and keeping wafer yields locked at target specs.
Key Technical Specifications
| Parameter | Value |
| Part Number | 0190-15384 / 019015384 |
| OEM Manufacturer | Applied Materials (AMAT) |
| Form Factor | Rack-Mount Card / Backplane Slide-In PCBA |
| Platform Compatibility | AMAT Producer, Endura, Centura 300mm Mainframes |
| I/O Architecture | Multi-channel isolated digital & analog signal processing |
| Operating Voltage | DC bus powered via mainframe backplane (+5V DC / ±15V DC nominal) |
| Bus Interface | Proprietary AMAT high-speed backplane bus |
| Operating Temperature | 10°C to 50°C (Cleanroom controlled environment) |
| Compliance & Grade | Class 10/100 Cleanroom compatible |
Application Scenarios & The “Trench” Experience
It’s 3 AM during a critical production run on your 300mm Producer platform. Chamber B suddenly trips a backplane communication timeout fault, halting a batch of 25 prime wafers mid-etch. The tool software reports non-responsive I/O on the gas box line. After pulling your hair out swap-testing cables for two hours, you isolate the failure to an optocoupler breakdown on the 0190-15384 card inside the rack. Having an exact replacement 0190-15384 board sitting on your maintenance shelf drops your mean-time-to-repair (MTTR) from 3 days down to 20 minutes.
Typical Applications:
- 300mm Chemical Vapor Deposition (CVD) – Synchronizes high-speed pneumatic gas valve sequencing to eliminate pressure spikes during layer transitions.
- Plasma Etch Mainframes – Interfaces real-time chamber pressure readings directly to throttle valve controllers under RF noise.
- Physical Vapor Deposition (PVD) – Routes target bias telemetry and shield status signals back to the main cell controller.
0190-15384
0190-15384
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual AMAT-compatible rack backplanes. Every surplus or reconditioned 0190-15384 board goes through our strict 5-stage SOP:
- Inbound Visual & Anti-Counterfeit Audit: Microscopic inspection for trace cracking, cold solder joints, stressed capacitors, or past thermal damage.
- Backplane Power-On & Loop Test: Insertion into a live test rack to verify DC power rail stability and logic boot execution.
- Channel-by-Channel Signal Verification: Oscilloscope and logic analyzer sweeps of all I/O channels to ensure zero signal crosstalk or voltage drift.
- Thermal Stability Bake: Running the card under synthetic full-load I/O stress in an environmental chamber to catch latent silicon faults.
- ESD-Safe Cleanroom Packaging: Cleaned under HEPA filtration, double-sealed in static-shielding bags with moisture-absorbent desiccant packs.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Kill Mainframe DC Bus Power Before Pulling: Never pull or insert this card while the card cage backplane is energized. Hot-swapping will trigger high-voltage bus transients that can blow input diodes on adjacent cards and corrupt volatile memory on the cell controller. Shut down rack power completely first.
❗ Check Board Jumper/DIP Switch Settings: Before sliding the new 0190-15384 into the slot, compare its hardware configuration jumpers against the card you just pulled. A single misaligned jumper will change the board’s node address or input voltage scaling, throwing immediate system configuration errors upon boot. Take a quick photo of the old board’s switches before you bench it.
⚠️ Maintain Anti-Static Handling: Modern 300mm control cards use high-density ICs susceptible to ESD damage that won’t show up immediately. Always wear a grounded wrist strap attached to chassis ground when handling this board outside its static-shielding bag.
Frequently Asked Questions (FAQ)
Q: Is the AMAT 0190-15384 board hot-swappable?
A: No. Pulling this card live will damage the edge connectors and likely trip the entire rack’s power supply due to voltage spikes. Always power down the card cage before replacement.
Q: Can I drop this board into a 200mm Centura frame?
A: No. The 0190-15384 uses a pinout layout and bus timing specific to 300mm platform architectures. Verify your tool’s bill-of-materials (BOM) drawing before ordering.
Q: Does this unit require firmware flashing prior to installation?
A: Generally no. This board functions as a hardware-level I/O interface. Field logic configuration is managed dynamically by the main tool host software during system boot, provided all hardware address jumpers match your original card settings.
Q: What is the warranty coverage on this card?
A: We back every unit with a full 12-month operational warranty. If it fails bench diagnostics or drops a channel within 365 days of purchase, we replace it or refund it—no hassle.
Q: Why choose surplus inventory over buying direct from Applied Materials?
A: Sourcing tested surplus components bypasses lead times that can stretch up to several months for legacy 300mm platforms, allowing you to restore tool availability immediately at a fraction of the OEM list price.
