Description
Product Introduction
The Schneider Electric Modicon AS-B883-200 is a high-density 10-channel thermocouple input module engineered for legacy Modicon 800 series automation racks. Operating as an advanced front-end analog processor, this hardware layer directly measures microvolt-level potentials from thermal sensors and converts them into precise internal register values for central processor logic execution.
Designed for heavy process industries, the AS-B883-200 supports a broad range of thermocouple calibrations (B, E, J, K, R, S, T, N) alongside linear millivolt signals. It features onboard Cold Junction Compensation (CJC) and handles up to 200 VDC/VAC peak common-mode voltage isolation, ensuring accurate temperature tracking while shielding sensitive conversion circuitry from plant-floor electrical noise and ground differentials.
Key Technical Specifications
| Parameter | Value |
| Product Line | Modicon 800 Series I/O |
| Module Type | Thermocouple / Linear Millivolt Input |
| Number of Inputs | 10 differential channels |
| Supported Input Types | B, E, J, K, R, S, T, N thermocouples, or linear mV |
| Resolution | 1^\circC / 1^\circF standard; 0.1^\circC / 0.1^\circF under program control |
| Update Time | 100 ms per selected channel; 1.0 s max for all channels |
| Common Mode Voltage | 200 VDC/VAC peak max |
| Cold Junction Compensation | Integrated hardware CJC support |
| Backplane Power Draw | 400 mA at +5 VDC, 5 mA at +4.3 VDC |
| Power-Up / Warm-Up Time | 13 s power-up max; 2 min warm-up max |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
Application Scenarios & The “Trench” Experience
Picture this: It is 3:00 AM at a continuous catalytic cracking unit. Suddenly, an alarm floods the operator HMI: reactor bed temperature profile inputs freeze, triggering an automatic safety interlock slowdown because a localized voltage spike fried the analog front-end of an aging thermocouple input card. You have ten critical high-temperature thermocouple loops blind, and operations won’t authorize a restart until the temperature monitoring loop is fully verified. You don’t have time for a full DCS hardware migration; you need to hot-swap or rack-swap an exact AS-B883-200 card to get the thermal data streams back online.
- Petroleum Refining & Petrochemicals: Monitoring multi-zone reactor vessel skin and catalyst bed temperatures under harsh electromagnetic interference.
- Power Generation: Tracking turbine bearing, exhaust gas, and boiler tube temperatures across extensive long-run shielded cabling.
- Metal Processing & Heat Treating: Managing multi-zone annealing furnace thermal profiles where high-resolution measurement accuracy is mandatory.

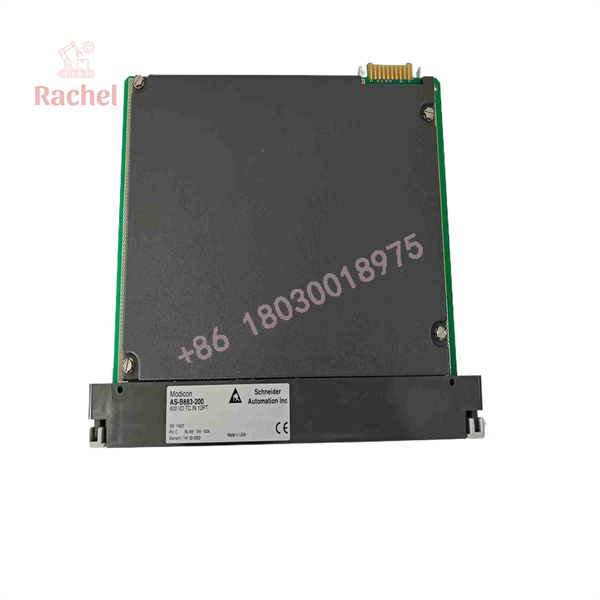

AS-B883-200

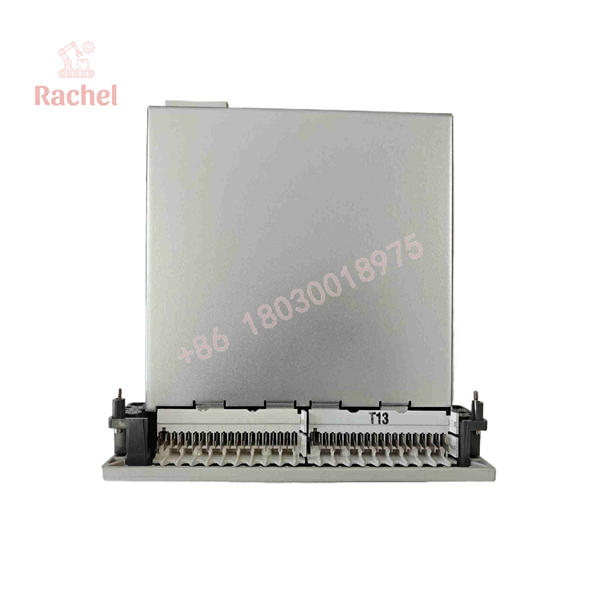

AS-B883-200
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Modicon racks. Every surplus AS-B883-200 unit goes through a rigorous verification process before leaving our warehouse:
- Inbound Inspection: Physical check for component integrity, anti-counterfeit markings, and OEM seal inspection.
- Live Rig Testing: Powered on a dedicated Modicon 800 test chassis to verify backplane handshakes and clear communication registers.
- Thermal Calibration Verification: Injecting calibrated millivolt simulation signals across all 10 channels to verify analog-to-digital conversion accuracy and CJC tracking.
- Firmware Verification: Logging exact hardware revisions and checking internal memory registers.
- Final QC & Anti-Static Packaging: Sealed in humidity-controlled moisture barrier bags with high-density ESD protection.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Power Down the Rack First: Never pull or insert the AS-B883-200 while the chassis is powered. Doing so risks backplane arcing that can wipe out adjacent CPU communication ports or neighboring analog modules.
- ❗ Shield Grounding Discipline: Always terminate thermocouple extension wire shields at a single designated panel ground point. Leaving shields floating or double-grounded will induce common-mode noise, causing erratic temperature reading spikes across your registers.
- ⚠️ Allow Warm-Up Time: Remember that this card requires up to a 2-minute warm-up period after a cold boot to stabilize its internal Cold Junction Compensation network. Don’t panic if readings drift slightly during the first 120 seconds post-power-up.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the AS-B883-200 handle Cold Junction Compensation internally?
A: Yes. The module features built-in Cold Junction Compensation (CJC), eliminating the need for external reference blocks when terminating standard thermocouple wire.
Q: Is this module hot-swappable?
A: No. Legacy Modicon 800 series racks do not support live insertion. You must drop rack power before sliding this card in or out.
Q: Are these units brand new or refurbished?
A: Our inventory consists primarily of New Surplus and Factory Sealed stock sourced from global industrial liquidations. Every unit undergoes rigorous bench calibration testing before shipment.
Q: Why is your price lower than direct OEM channels?
A: Schneider Electric has long since sunsetted active production lines for the Modicon 800 series. Authorized channels charge heavy lifecycle management premiums to push complete system overhauls. We supply certified surplus hardware to keep legacy plants running reliably without forced capital migrations.
Q: What warranty is included with purchase?
A: Every AS-B883-200 ships with our comprehensive 12-month replacement warranty.
