Description
Product Introduction
The Schneider Electric Modicon AS-BADU-204 is a 4-channel analog output module built specifically for the Modicon TSX Compact and legacy 984 system architectures. This hardware layer translates processor control words into variable analog signals, driving complex field instrumentation like proportional control valves, positioners, and variable speed drives.
Within a control loop configuration, this module manages process variables by taking digital register values from the backplane and scaling them cleanly to physical plant equipment. Unlike standard discrete cards, the AS-BADU-204 provides smooth, continuous regulation across its multi-channel setup, maintaining process stability in demanding continuous loop manufacturing environments.
Key Technical Specifications
| Parameter | Value |
| Product Line | Modicon TSX Compact / 984 Series |
| Module Type | Analog Output Module |
| Number of Channels | 4 analog output channels |
| Input Register Allocation | 3 input registers required |
| Output Register Allocation | 4 output registers required |
| Signal Range / Voltage | ±24 V bipolar range, 0 to 400 ohms span |
| Backplane Power Draw | 5 VDC, less than 50 mA from I/O bus |
| Form Factor / Dimensions | 1.6 x 5.6 x 4.5 inches |
| Operating Temperature | 0 °C to 40 °C (32 °F to 140 °F) |
| Maximum Operating Altitude | 2,000 meters |
Application Scenarios & The “Trench” Experience
Picture this: It is mid-afternoon during a high-capacity batch run at a chemical plant when a sudden loop failure causes a critical control valve to drop flat to 0%, threatening to over-pressurize a distillation column. Maintenance tracks the fault to an analog output card on the Modicon Compact rack that has lost its conversion capability due to an aging DAC component failure. Plant operations are completely dead in the water until loop control is re-established. You pull an exact-match AS-BADU-204 from the shelf, slide it into the chassis, and restore precise valve modulation before safety systems trigger a plant-wide shutdown.
- Chemical & Petrochemical Processing: Modulating pneumatic control valves and chemical injection metering pumps via steady analog control signals.
- Packaging & Material Handling: Controlling high-speed drive speed references and tension-control brakes on continuous web-handling lines.
- Water and Wastewater Treatment: Adjusting chemical feed rate controllers and motorized weir gates dynamically based on telemetry loop feedback.

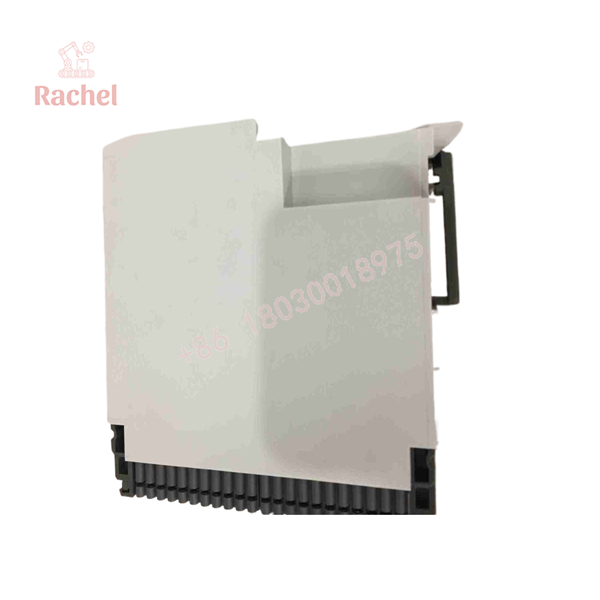

AS-BADU-204

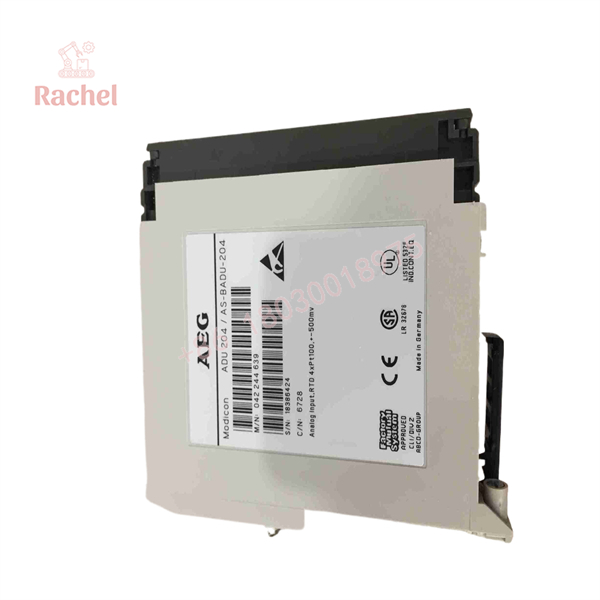

AS-BADU-204
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Modicon racks. Every surplus AS-BADU-204 unit goes through a strict verification process before leaving our warehouse:
- Inbound Inspection: Physical check for component integrity, anti-counterfeit markings, and OEM seal inspection.
- Live Rig Testing: Powered on a dedicated Modicon TSX Compact test chassis to verify backplane register handshakes and communication tracking.
- Analog Scaling Verification: Validating multi-channel output generation under simulated load to confirm zero drift and linearity across all four channels.
- Firmware Verification: Logging exact hardware revisions and scanning internal memory components.
- Final QC & Anti-Static Packaging: Sealed in humidity-controlled moisture barrier bags with high-density ESD protection.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Turn Off Rack Power First: Never pull or insert the AS-BADU-204 while the backplane is energized. Hot-swapping legacy Compact I/O cards can trigger severe bus errors, corrupt register maps, or fry adjacent communication processors.
- ❗ Register Configuration Mismatch: Double-check your ladder logic configuration. This module explicitly consumes 3 input registers and 4 output registers. Overlapping register assignments in your PLC program will cause data corruption across neighboring slots.
- ⚠️ Shielding and Grounding: Always run twisted, overall-shielded cable for your analog output loops, and terminate the drain wire at a single-point panel ground. Leaving shields unterminated invites electrical noise to distort your control loops.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the AS-BADU-204 hot-swappable?A: No. Pulling this card live on a legacy Modicon Compact rack can corrupt backplane communications and damage the internal bus pins. Always kill power first.
Q: Are these units brand new or refurbished?A: Our inventory consists primarily of New Surplus and Factory Sealed stock sourced from global industrial liquidations. Every unit undergoes rigorous live-rig bench testing prior to shipment.
Q: Why is your price lower than direct OEM channels?A: Schneider Electric transitioned the TSX Compact and 984 product families to end-of-life status long ago. Authorized channels charge heavy lifecycle management premiums to push complete system overhauls. We supply certified surplus hardware to keep legacy facilities operational without forced capital migrations.
Q: What warranty is included with purchase?A: Every AS-BADU-204 ships with our comprehensive 12-month replacement warranty.
