Description
Product Introduction & Engineering Value
Industrial automation environments relying on decentralized control architectures demand compact, high-reliability computing power that integrates directly with modular terminal blocks. The Beckhoff CX1020-0000 embedded PC controller serves as a powerful processing core for TwinCAT-based automation systems, eliminating the need for bulky industrial rack PCs.
Engineered for seamless DIN-rail mounting alongside Beckhoff E-bus or K-bus I/O terminals, this CPU module handles demanding multi-tasking logic and motion control loops without external expansion chassis. Automation engineers rely on its fanless, solid-state architecture to ensure reliable 24/7 operation in harsh control cabinets.
Technical Specifications
- System Family: Beckhoff CX1020 Modular Embedded PC Platform
- Processor Architecture: Intel Celeron CPU core optimized for real-time performance
- Operating System Support: Windows CE or Windows Embedded operating system targets
- Software Environment: Beckhoff TwinCAT PLC and Motion Control runtime
- Bus Interfaces: Direct connection to Beckhoff Bus Terminals (K-bus or E-bus via automatic detection)
- Peripheral Connectivity: Ethernet, USB ports, and optional DVI/Audio interface connections
- Power Supply: 24V DC input via internal power supply module (CX1100 power supply block)
- Mounting Standard: DIN-rail mountable compact enclosure design
Field Application & The “Trench” Experience
During a high-speed runtime on a multi-axis packaging line, an aging embedded controller on a Beckhoff CX node suffered an unrecoverable flash memory failure, halting production mid-shift. Sourcing a complex replacement PC and rebuilding the control rack would have meant hours of costly downtime. The plant automation engineer retrieved a pre-configured, tested Beckhoff CX1020-0000 surplus unit from the maintenance crib, swapped the compact Flash storage card containing the TwinCAT project, and mounted the CPU onto the DIN rail. The controller booted instantly upon power-up, re-established communication with all remote E-bus I/O terminals, and returned the packaging line to full operation within twenty minutes.
Targeted Application Scenarios:
- High-Speed Packaging Machinery: Executing precise motion control and high-cycle logic loops on modular production lines.
- Building Automation & Energy Management: Centralizing data collection and HVAC control across distributed plant terminals.

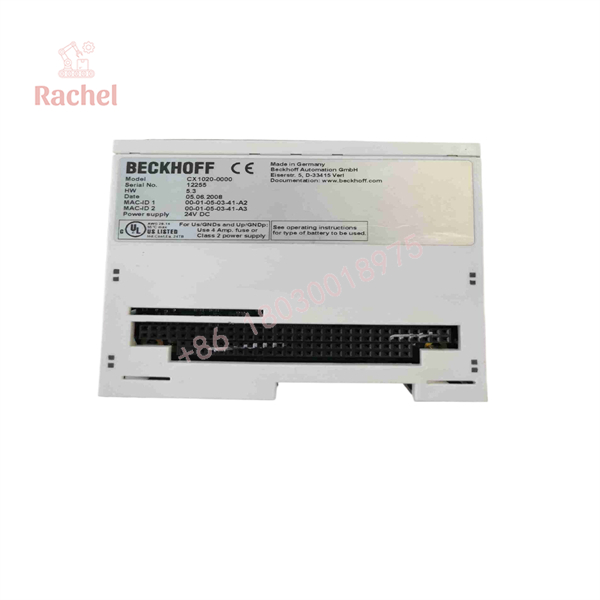

CX1020-0000

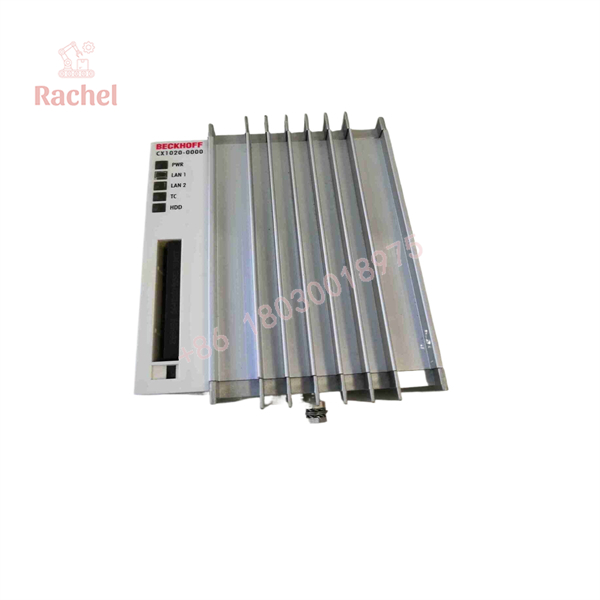

CX1020-0000
Transparency SOP: QA & Testing
1.Visual & Connector Inspection:15 min.
Examine the DIN-rail locking clips, power pins, side-bus connectors, and ports under optical magnification for wear or damage.
2.Power Supply & Boot Test:30 min.
Mount the CPU onto a live CX1100 power supply test fixture to verify 24V DC regulation, BIOS initialization, and cold-boot stability.
3.TwinCAT Runtime & Port Validation:1 hr.
Test onboard Ethernet and USB interfaces while running a benchmark TwinCAT runtime cycle to verify processor and memory integrity.
4.Thermal Burn-In Cycle:24 hrs.
Operate the unit continuously in a thermal test chamber for 24 hours to screen out latent hardware defects prior to shipment.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ COMPACTFLASH CARD INTEGRITY: Never hot-swap the CompactFlash boot card while the CX1020-0000 is powered on. Doing so can corrupt the file system or damage the drive controller, rendering the TwinCAT boot image unrecoverable. Always kill 24V DC control power before touching memory media.
PRO TIP: When replacing a failed CPU module, always verify that the replacement unit’s hardware revision matches your exact TwinCAT software license requirements. Upgrading processor hardware across major architectural revisions can occasionally trigger license validation flags in older software builds.
Dynamic FAQ
- Q: Is the CX1020-0000 compatible with standard Beckhoff Bus Terminals?
- A: Yes, it connects directly to standard Beckhoff I/O terminals, automatically recognizing E-bus or K-bus communication formats based on system configuration.
- Q: Can I transfer my existing CompactFlash card directly to a replacement CX1020 unit?
- A: Yes, moving your original system CF card containing the OS and TwinCAT project files to an identical replacement CPU module allows for a fast, plug-and-play restoration.
- Q: Are your replacement CX1020-0000 units brand new or surplus?
- A: Our stock consists of verified New Surplus and thoroughly reconditioned, fully bench-tested units ready for immediate industrial deployment.
- Q: What warranty coverage comes with this controller?
- A: Every CX1020-0000 unit is backed by our comprehensive 12-month full replacement warranty covering all functional performance aspects.
