Bently Nevada 133819-02 Proximitor Seismic I/O Module

Description

Product Introduction

The Bently Nevada 133819-02 is an upgraded 4-channel Proximitor / Seismic I/O module designed for rear-slot installation in a 3500 machinery protection chassis. Situated directly behind the 3500/42M Proximitor Seismic Monitor main module, it serves as the physical landed connection point for field-installed proximity probes, Velomitors, and piezo-velocity accelerometers.

What distinguishes the 133819-02 from earlier fixed-terminal designs is its pluggable Euro-style terminal block assembly. Technicians can pre-wire harness landings or instantly unplug the terminal strips when swapping rear cards, eliminating the painstaking task of un-landing and re-landing individual wires during critical maintenance windows. Installing an authentic 133819-02 preserves strict API 670 signal accuracy while dramatically accelerating field replacement times.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

picture a forced-outage turnaround at a fertilizer plant after a high-vibration trip on a multi-stage synthesis gas compressor. During emergency troubleshooting, a maintenance technician accidentally strips the terminal housing on an old fixed-terminal rear card while verifying raw gap voltages. On legacy cards, a broken terminal means un-landing all 12 field wires, unscrewing the board, mounting a new one, and manually re-landing every tiny conductor under flashlight beam—a 90-minute task while plant management tracks lost production costs. With the 133819-02, you simply unplug the green terminal headers, loosen the card retaining screws, slide in the new board, and snap the wired headers right back in. Total downtime: under five minutes.

Key Industrial Scenarios

• Chemical & Refining: Interface 3300 XL proximity probes on high-speed shaft bearings requiring rapid-turnaround maintenance capabilities.
• Gas Transmission Stations: Land seismic and vibration sensors on un-manned pipeline compressor trains subject to strict API 670 uptime requirements.
• Power Plants: Route pedestal accelerometer and casing Velomitor signals directly into 3500 protection racks with minimal cabinet clutter.

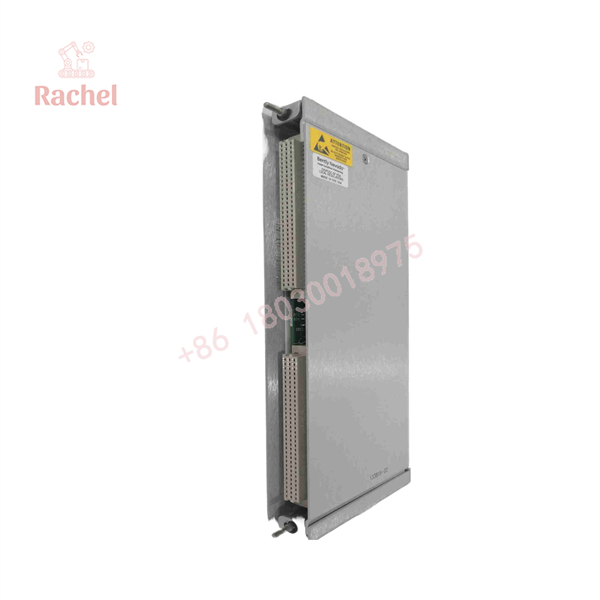

133819-02

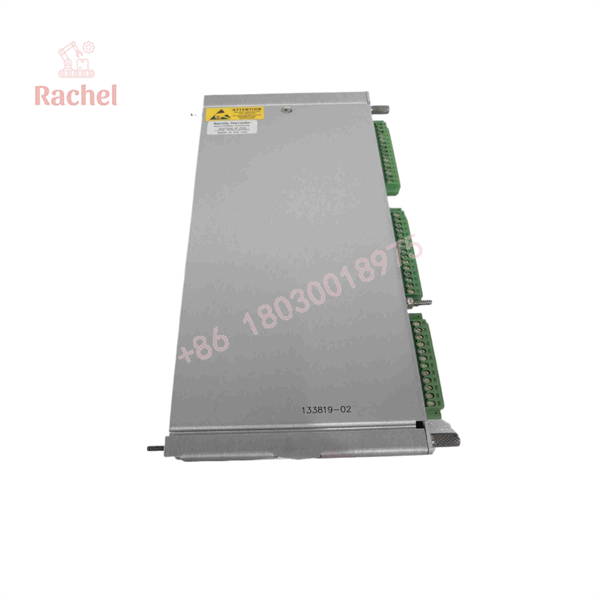

133819-02

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection: Multi-point visual check for board flex, damaged pluggable headers, and micro-fractures in solder joints under magnification.
2. Pluggable Header Mechanical Check: Verify latching tension and contact mating force across all Euro-style terminal blocks.
3. Power Output Verification: Measure the -24 VDC excitation rail across every channel under a simulated sensor load.
4. Full Loop Signal Handshake: Seat the 133819-02 card behind a live 3500/42M main card; feed dynamic AC vibration and DC gap voltage signals through all 4 channels to verify zero signal degradation across backplane traces.
5. Final QC & Anti-Static Packaging: Isopropyl cleaning of contacts, installation of connector dust shields, and sealing in a heavy-duty ESD moisture-barrier bag with fresh desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Header Keying & Terminal Mix-Ups: When pulling the pluggable green terminal blocks off a 133819-02 card, label them or use keying pins! Plugs can physically fit into adjacent slots if you aren’t paying attention. Swapping channel 1 and channel 2 headers sends the wrong shaft vibration channel into your trip logic, potentially causing an unwarranted trip or blinding a fault.
• ❗ Verify Rack Software Termination Settings: Ensure your 3500 Rack Configuration Software has the I/O module type correctly selected as “Internal Termination” for the 3500/42M slot. Setting the software to “External Termination” while running a 133819-02 card causes channel fault codes and freezes live telemetry.
• ⚠️ Shield Ground Loop Hazards: The 133819-02 provides dedicated shield landing pins. Keep your sensor cable shield floating at the field sensor end and land it only at the 133819-02 terminal block. Grounding both ends creates a loop that introduces false 60 Hz electrical noise spikes into your vibration spectrum.
• ❗ Never Pull Plugs Under Active Trip Logic Without Bypass: Unplugging a terminal header instantly cuts -24 VDC power to the connected field transducers, causing raw gap voltages to drop to rail limits. If channels are part of an active 2-out-of-2 voting trip matrix, place the 3500/42M channel into “Bypass” in software before pulling any terminal blocks.

Frequently Asked Questions (FAQ)

Q: What is the main difference between the 133819-02 and older internal termination cards like the 128229-01?

A: The 133819-02 features pluggable Euro-style terminal connectors that allow you to disconnect field wiring in blocks without unscrewing individual wires. Older versions like the 128229-01 use fixed barrier terminals soldered directly to the board.

Q: Is the 133819-02 a direct pin-for-pin replacement for older 3500/42M rear I/O cards?

A: Yes. Form factor, backplane pinouts, and electrical characteristics are fully compatible. You can swap out an older fixed-terminal card for the 133819-02 without altering your 3500 rack backplane or monitor hardware.

Q: Do I need to recalibrate my vibration channels after replacing a 133819-02 card?

A: No. The 133819-02 is a passive routing and signal conditioning interface board. Transducer scale factors (e.g., 200 mV/mil or 100 mV/g) and channel calibration parameters are stored on the 3500/42M front main module.

Q: Why buy New Surplus stock instead of ordering direct from the OEM?

A: Lead times for 3500 series replacement cards from factory distribution channels can range from 8 to 16 weeks. Ordering our tested New Surplus inventory gets a factory-grade module to your plant in days, letting you resolve rack fault alarms immediately without waiting through factory lead times.

Q: What warranty comes with this replacement module?

A: Every 133819-02 module ships with our full 12-month advance replacement warranty. If the board exhibits channel signal failure or terminal defects within one year, we send out a replacement immediately.
