Bently Nevada 136711-01 Temperature Monitor Internal Barrier Module

Description

Product Introduction

The Bently Nevada 136711-01 is the Internal Barrier Rear I/O Module designed for the 3500/60 Temperature Monitor in the 3500 Machinery Protection System. It provides intrinsically safe field terminations for six temperature measurement channels and is intended for machinery protection systems installed in hazardous locations. The module supports both RTD and thermocouple temperature inputs when used with the corresponding 3500/60 monitor.

In our field experience, engineers often focus on replacing the front monitor while overlooking the rear I/O module. That can be an expensive mistake. The 136711-01 contains the intrinsic safety barriers and field termination circuitry. If the barriers or terminals are damaged, replacing only the front monitor won’t solve the problem. Verify the complete monitor assembly before ordering replacement parts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The compressor never tripped.

The bearings never overheated.

But every few hours one temperature channel disappeared.

The maintenance crew replaced the RTD.

Then the extension cable.

Then the front monitor.

Nothing changed.

The real problem was a damaged 136711-01 internal barrier module. One barrier channel had degraded after years of exposure to vibration and electrical transients. Replacing the rear I/O module restored all six temperature channels immediately.

Typical Applications

Power Generation – Steam Turbine Bearing Monitoring –
Provides intrinsically safe connections for bearing metal temperature measurements in hazardous plant areas.

Oil & Gas – Compressor Protection Systems –
Interfaces RTDs and thermocouples used to monitor bearings, lube oil, and casing temperatures.

Petrochemical Plants – API 670 Machinery Protection –
Supports continuous temperature monitoring while maintaining intrinsic safety requirements.

Chemical Processing – Hazardous Process Units –
Provides safe signal isolation between field-mounted temperature sensors and the 3500 rack.

LNG Facilities – Turbine and Compressor Monitoring –
Maintains reliable temperature measurements in classified hazardous environments.

Field Replacement Example

A petrochemical facility experienced intermittent high-temperature alarms on a compressor train during startup.

Every RTD tested within tolerance.

The wiring insulation resistance was acceptable.

After replacing the 136711-01, all six channels operated normally. Later inspection showed one internal barrier channel had been damaged by a surge event, even though the front 3500/60 monitor continued passing self-diagnostics.

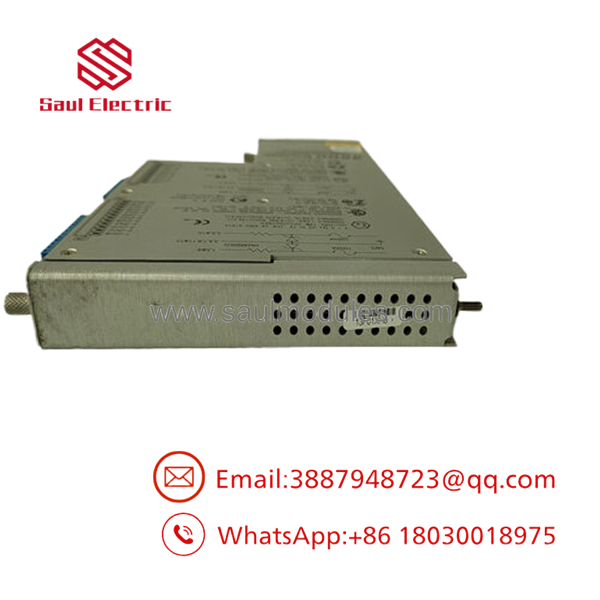

136711-01

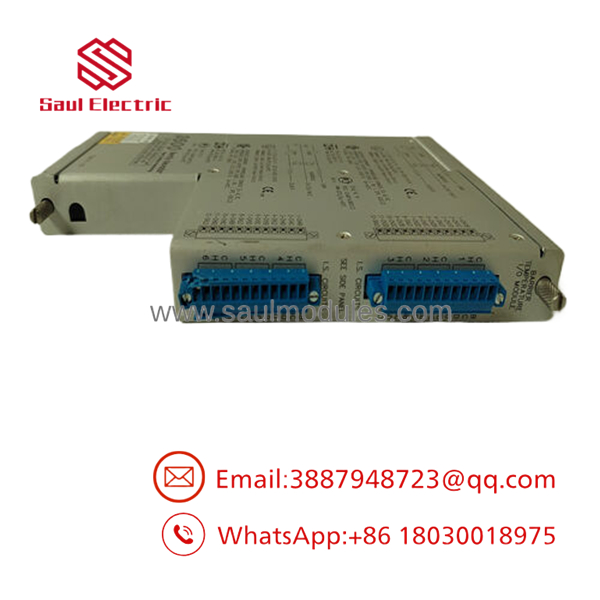

136711-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and hardware revisions.
• Inspect intrinsic safety barrier components.
• Check terminal blocks for corrosion or overheating.

2. Live Rig Testing

• Install with a compatible 3500/60 Temperature Monitor.
• Simulate RTD and thermocouple inputs across all six channels.
• Verify proper alarm generation and communication.

3. Electrical Parameter Checks

• Verify channel isolation.
• Confirm terminal continuity.
• Measure signal integrity across all inputs.
• Inspect barrier circuitry for proper operation.

4. Hardware Verification

• Record hardware revision.
• Verify compatibility with the installed 3500/60 monitor.
• Archive complete functional test records.

5. Final QC & Anti-Static Packaging

• Complete full operational testing.
• Package using ESD-safe materials.
• Protect connectors and terminals during shipment.
• Maintain complete traceability documentation.

The Veteran’s Tech Trap Guide

⚠️ Don’t order the rear I/O module when the monitor has failed—or vice versa.
The 136711-01 is only the rear interface and intrinsic safety barrier assembly. It cannot perform temperature monitoring without the matching 3500/60 front module.

❗ Every rack using internal barriers needs the proper Earthing Module.
Bently Nevada specifies installing the designated IS Earthing Module whenever internal barrier I/O modules are used. Skipping this requirement can compromise hazardous-area compliance.

⚠️ Don’t mix RTD and thermocouple wiring without checking the configuration.
The monitor supports both sensor types, but incorrect configuration will generate misleading temperature values that resemble failed sensors.

❗ Label every field wire before disconnecting it. Trust me.
Six temperature channels look almost identical during a shutdown. Swapping even two sensor pairs can create hours of unnecessary troubleshooting.

Frequently Asked Questions (FAQ)

Q1: What is the function of the Bently Nevada 136711-01?

A: It is the Internal Barrier Rear I/O Module used with the 3500/60 Temperature Monitor, providing intrinsically safe field terminations for six RTD or thermocouple input channels.

Q2: Which monitor is compatible with this module?

A: The 136711-01 is specifically designed for the Bently Nevada 3500/60 Temperature Monitor. It is not interchangeable with I/O modules used by the 3500/61 or other monitor families.

Q3: Does this module support both RTDs and thermocouples?

A: Yes. When paired with the 3500/60, it supports both RTD and thermocouple temperature measurements, depending on the system configuration.

Q4: Can the 136711-01 operate independently?

A: No. It is only the rear I/O module. The front 3500/60 Temperature Monitor performs all signal processing, alarm evaluation, and communication functions.

Q5: Is the module hot-swappable?

A: No. Replacement should be performed during a scheduled maintenance outage. Removing the rear I/O module while the monitor is in service interrupts all associated temperature measurement channels.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant upgrades, canceled projects, or unused maintenance stock. Lower pricing reflects inventory sourcing rather than reduced capability. Request documented functional testing, hardware revision records, and serial-number traceability before purchasing.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 136711-01 modules. Before purchasing, request documentation covering six-channel functional testing, barrier verification, insulation checks, and hardware revision records.
