Description
Product Introduction
The Bently Nevada 149992-02 is a specialized rear Input/Output (I/O) isolation interface module designed for integration into the 3500 Machinery Protection System. Installed in the rear panel slot of the 3500 rack chassis, the 149992-02 provides essential signal isolation, ground loop protection, and power rail decoupling for paired front-panel modules.
In complex industrial environments with high electrical noise, ground potential differences between remote field sensors and the central control cabinet can introduce measurement errors or damage sensitive backplane electronics. The 149992-02 ensures clean power distribution, isolated signal paths, and robust surge suppression to safeguard the integrity of the 3500 rack backplane and downstream machinery protection logic.
Key Technical Specifications
| Parameter | Value |
| Catalog / Part Number | 149992-02 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Compatibility | Bently Nevada 3500 Series Rack Assembly |
| Module Type | System Isolation / Rear Interface Module |
| Isolation Rating | 500V DC Galvanic Isolation (Channel-to-Frame / Channel-to-Backplane) |
| Rack Space Requirement | 1 Full-Height Rear Slot |
| Weight | ~0.22 kg (0.48 lbs) |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
During a major overhaul at an aluminum smelting and power generation complex, commissioning engineers encounter severe 60 Hz hum and high-frequency common-mode noise across multiple monitor channels. Investigations reveal significant ground potential offsets between the main turbine deck and the remote rack cabinet. Installing the 149992-02 isolation interface card behind designated rack slots eliminates ground loop currents flowing through the backplane shield path. This stabilizes sensor signal baselines, eliminates false vibration spikes, and restores dependable trip protection without requiring expensive external isolators.
- Heavy Industrial & Smelting Plants: Prevents high stray ground currents from corrupting low-voltage vibration and position monitoring loops.
- Offshore Oil & Gas Platforms: Maintains electrical isolation and lightning/transient suppression between deck-mounted sensors and control room cabinets.
- High-Voltage Power Stations: Protects 3500 rack backplane circuits against switching transients and grid-induced common-mode voltages.
- 3500 Rack Maintenance & Spares: Critical isolation card for maintaining rack integrity in electrically harsh operating environments.
149992-02

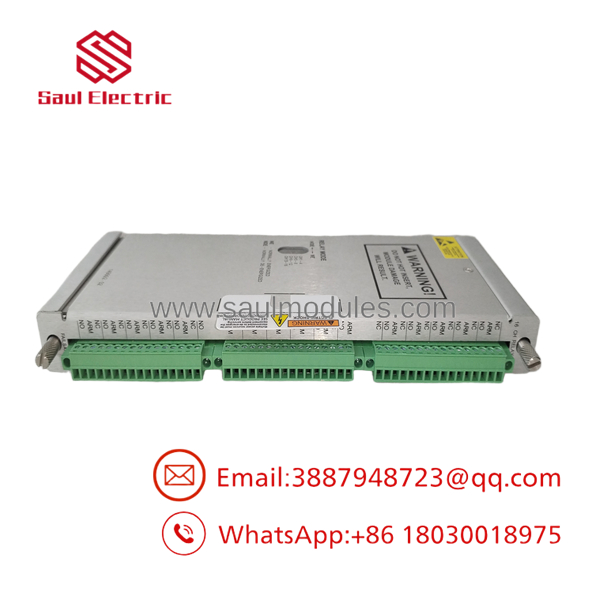

149992-02
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Inspection: Card edge backplane connectors, trace geometry, isolation barriers, and mounting hardware are inspected for signs of physical strain, thermal degradation, or manufacturing defects.
- Backplane Fit & Recognition Test: Inserted into a live Bently Nevada 3500 chassis to verify proper mechanical alignment, slot seating, and backplane pin engagement.
- Galvanic Isolation & High-Pot Audit:
- Isolation Resistance Test: Verified >100 M\Omega resistance at 500V DC between input/output channels and chassis ground.
- Power & Ground Decoupling: Checked noise suppression across backplane power lines under simulated load conditions.
- Final ESD Packaging: Cleaned, fitted with protective edge covers, sealed in static-shielding bags, and packaged in heavy-duty foam casing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Module Matching Verification: Always verify the specific front monitor card or system module requirement before installing the 149992-02. Using an isolation I/O card in a slot configured for direct sensor input (such as a standard 3500/42M or 3500/45) without correct system configuration can cause slot detection faults on the 3500/22M RIM.
- ❗ Grounding Jumpers & Isolation Rules: Do not bridge chassis ground to signal ground at the 149992-02 module unless explicitly dictated by system architecture drawings. Defeating the isolation barrier reintroduces ground loops that the module is designed to eliminate.
- ⚠️ Handling Sensitive Backplane Connectors: Ensure the card guides in the 3500 chassis are clean and unobstructed before inserting the module. Applying excessive force when seating the card can bend edge pins or damage internal isolation transformers.
- ❗ System Configuration Verification: After replacing or adding a 149992-02 module, connect via the 3500 Rack Configuration Software to confirm that slot hardware options match the offline project file.
Frequently Asked Questions (FAQ)
Q: What is the main function of the Bently Nevada 149992-02?
A: It is a rear isolation interface module for the Bently Nevada 3500 system that provides electrical isolation, transient protection, and clean signal/power paths between field instrumentation and the rack backplane.
Q: Does the 149992-02 module feature internal screw terminals on the card faceplate?
A: Depending on the specific assembly variant, the 149992-02 serves primarily as an isolation interface and may route field signals through internal screw terminals or interface connectors designed for isolated power/ground distribution.
Q: Can I replace the 149992-02 module while the 3500 rack is energized?
A: It is strongly recommended to power down the specific slot or rack prior to servicing rear I/O and isolation modules to prevent transient arcs across backplane pins.
Q: How does isolation protect the 3500 Machinery Protection System?
A: Galvanic isolation breaks direct ground connections between field sensors and the rack, preventing high ground loop currents, voltage spikes, and electrical noise from damaging processing cards or triggering false machinery trips.
Q: What warranty is provided on surplus or reconditioned 149992-02 modules?
A: All New Surplus and fully reconditioned Bently Nevada 149992-02 modules include a full 12-month replacement warranty from the invoice date.
