Description
Product Introduction & Engineering Value
A machinery protection rack can only protect equipment when its power foundation remains stable. The Bently Nevada 3500/15 Power Supply Module converts incoming plant power into regulated power required by the installed monitoring modules.
The 350015-05-05-00 is maintained by many facilities operating Bently Nevada 3500 systems on critical rotating assets. As a replacement spare, it allows technicians to restore rack availability while keeping the existing protection configuration unchanged.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 350015-05-05-00 |
| Product Name | 3500/15 Power Supply Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Module Type | Rack-mounted power supply |
| Input Configuration | AC power supply version |
| Installation Location | Dedicated 3500 rack power supply position |
| Output Function | Regulated DC power distribution |
| Rack Compatibility | Bently Nevada 3500 Series racks |
| System Role | Supports operation of monitoring modules |
| Design Purpose | Continuous machinery protection system availability |
| Application | Turbine, compressor, and industrial rotating equipment monitoring |
Field Application & The “Trench” Experience
A chemical processing facility noticed intermittent resets on a machinery protection cabinet connected to a critical compressor train. The vibration monitoring modules appeared healthy, but the rack occasionally lost communication with the plant control system.
During troubleshooting, the instrumentation team reviewed rack diagnostics and measured supply stability during operating conditions. The original power supply showed unstable behavior when the rack was fully loaded.
A replacement Bently Nevada 350015-05-05-00 was installed during a scheduled maintenance period. After verifying output voltage, rack startup sequence, and module status indicators, the protection cabinet returned to normal operation.
Typical application scenarios include:
Compressor protection cabinets
- 3500 rack power restoration
- Continuous vibration monitoring support
- Machinery shutdown system availability
Turbine monitoring systems
- Steam turbine protection racks
- Gas turbine auxiliary monitoring
- Rotor condition monitoring infrastructure
Industrial reliability programs
- Legacy 3500 system maintenance
- Critical spare inventory planning
- Protection cabinet lifecycle support

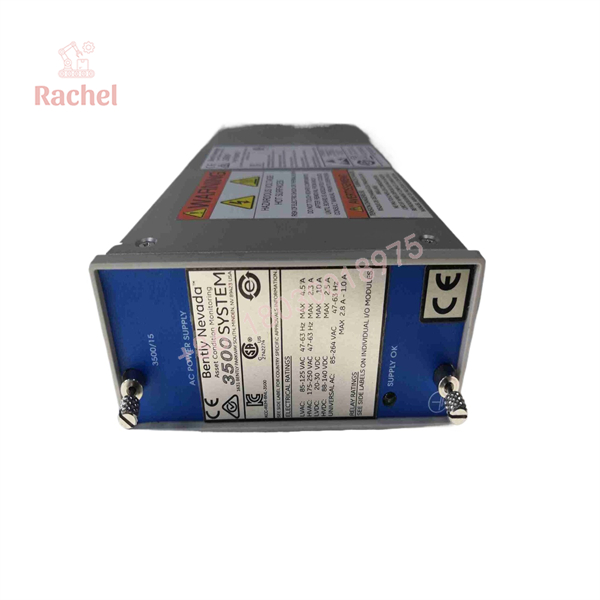

3500/15-05-05-00
3500/15-05-05-00
Transparency SOP: QA & Testing
Power supply modules are tested under load conditions because a simple startup check does not always reveal degradation.
Quality verification process:
- Visual inspection
- Confirm part number and revision markings
- Inspect housing and connectors
- Check for physical damage
- Electrical testing
- Verify input response
- Measure output stability
- Check startup behavior
- System simulation
- Install into compatible 3500 rack
- Confirm rack power distribution
- Verify module recognition
- Final release
- Record test results
- Assign inventory condition
- Apply protective packaging
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: A power supply alarm does not always mean the supply is bad.
Check rack loading, downstream module condition, and field wiring before replacing hardware.
⚠️ Confirm the exact 3500/15 option code.
The 3500/15 family includes multiple input and output configurations. Similar-looking part numbers may not be interchangeable.
⚠️ Do not ignore redundant power arrangements.
A failed primary supply may remain hidden if a secondary supply is carrying the rack load until it reaches its operating limit.
Dynamic FAQ
Q1: What is the Bently Nevada 350015-05-05-00 used for?
The 350015-05-05-00 is a Bently Nevada 3500/15 Power Supply Module used to provide regulated power for modules installed in a 3500 Machinery Protection System rack.
Q2: Is the 3500/15 a monitoring module?
No. The 3500/15 provides system power. Vibration, position, and other measurements are performed by separate monitoring modules installed in the rack.
Q3: What should be verified before replacing this power supply?
Engineers should confirm:
- Complete part number
- Input power requirements
- Existing 3500 rack configuration
- Rack module load
- Redundant supply arrangement
Q4: Can the 350015-05-05-00 replace another 3500/15 module?
Only if the complete ordering code and electrical configuration match the existing installation. The replacement should be checked against the original rack documentation.
Q5: Are refurbished Bently Nevada 350015-05-05-00 modules tested?
Professional automation suppliers typically perform inspection, electrical verification, and operational testing before supplying refurbished power supply modules.
Q6: What warranty is available for this module?
Warranty coverage depends on supplier policy, product condition, and testing scope. Buyers should confirm warranty terms and available inspection records before purchase.
Q7: Why do plants maintain spare 3500/15 modules?
The power supply supports the operation of the entire machinery protection rack. Keeping a tested spare can reduce downtime when a critical monitoring cabinet experiences a power-related failure.
