Product Introduction & Engineering Value
The legacy standard AC power supply converts mains voltage to clean, isolated DC rails to drive your downstream vibration, thrust, and temperature monitors. Operating with an input frequency range of 47 to 63 Hz, it handles broad utility voltage swings without dropping the active power supply to the monitoring cards.
Installing a secondary module in the upper half-height slot provides automatic redundancy. This design allows you to hot-swap a single power module on a live turbine monitoring system without risking an accidental safety trip or interrupting critical instrumentation loops.
Technical Specifications
- Nominal Input Ranges: 110 Vac (85 to 132 Vac rms) or 220 Vac (175 to 264 Vac rms)
- Operating Frequency Window: 47 to 63 Hz
- Max Low-Voltage AC Input Current: 4.5 A rms
- Max High-Voltage AC Input Current: 2.3 A rms
- Module Slot Requirement: Designated half-height power slot on the left-hand side of the rack
- Relative Humidity Support: 95% non-condensing maximum
- Operating Temperature Limits: -30°C to +65°C (-22°F to +150°F)
- Hazardous Location Ratings: CSA/NRTL/C Class I, Division 2, Groups A, B, C, D
Field Application & The “Trench” Experience
During an emergency controls migration on a critical gas pipeline compressor station, our field technicians found that a legacy 3500 frame had sustained structural compression during an arc-flash event in the lower terminal bay. The enclosure’s backplane was distorted, rendering slot 7 completely non-functional. Rather than delaying startup by attempting field refabrication, we swapped the entire damaged frame out with a clean panel-mount chassis and installed two fresh 127610-01 modules. After transferring the existing modules over, the internal bus cleared all data frame alignment faults, enabling the pipeline operators to safely bring the compressors back online.

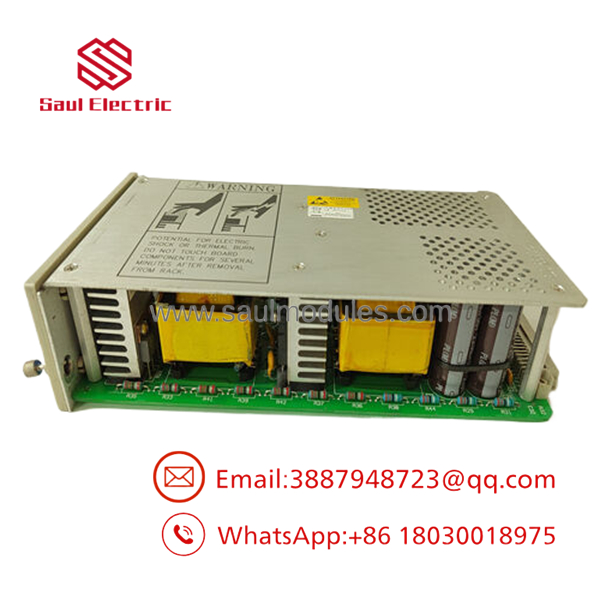

- 3500/15 127610-01

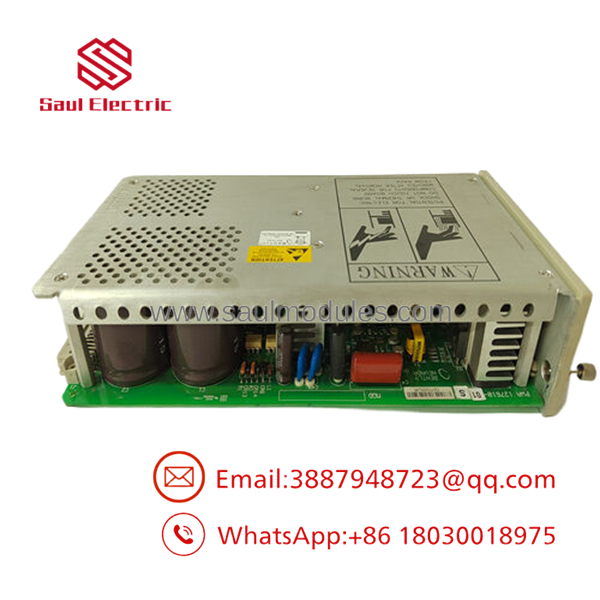

- 3500/15 127610-01
Niche Application Scenarios
- Gas Turbine Over-speed Skids: Providing clean, low-ripple power to highly sensitive 3500/50 tachometer modules.
- Hydroelectric Generator Enclosures: Housing multiple high-channel seismic and air-gap monitoring modules on the turbine deck level.
- Refinery Cracking Unit Safety Skids: Standardizing critical machinery protection cards inside a localized, secure structural rack assembly.
Transparency SOP: QA & Testing
Every single 127610-01 module is tested in our dynamic bench loop before shipment. We place the power supply under a simulated 100% full-rack DC current draw while modulating the input voltage from 85 Vac up to 264 Vac to ensure the output remains steady. We then run the card continuously in a heat-soak oven to confirm the high-voltage transformer and filtering capacitors do not experience thermal drift under heavy load. Finally, we verify that the front panel “Supply OK” LED functions properly and that the active-redundant handover operates without glitching the backplane.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ The Generation Compatibility Block: The legacy standard 127610-01 AC power supply module and its corresponding Power Input Module (PIM) are physically and electrically incompatible with the newer “Universal” AC power modules (such as the 106M1079-01). Do not attempt to pair a legacy power supply with a universal PIM, as this mismatch will cause a dead short and instantly blow the system protection fuses.
PRO TIP on Primary/Backup Physical Placement: Remember that Bently Nevada hard-codes the priority of the slots. The lower slot is always the primary power supply, and the upper slot is the backup. If you only run one power supply in a rack, place it in the lower slot to ensure the diagnostics report the chassis status correctly.
Dynamic FAQ
- Q: Can I run a mixture of one AC supply (127610-01) and one DC supply in the same rack?
- A: Yes, the 3500/15 chassis allows any combination of AC and DC supplies to run side-by-side. This setup is helpful if you want to power your backup slot from a station battery bank while running the primary slot from standard plant utility lines.
- Q: Does this module require a physical configuration change to switch between 110V and 220V operation?
- A: No. The module is auto-sensing across its operating ranges. However, you must ensure you have connected the matching high-voltage (125840-01) or low-voltage (125840-02) rear Power Input Module (PIM) depending on your incoming line voltage.
- Q: Where is the main protection fuse located for this power supply?
- A: The primary fuse is housed on the rear-facing Power Input Module (PIM), not on this front-facing 127610-01 card. If the fuse opens, you must replace the fuse on the PIM.
- Q: What warranty coverage is provided for your surplus inventory?
- A: All our new surplus and fully refurbished industrial automation components come backed by our comprehensive 2-year warranty coverage.
